~-KX-14CP1

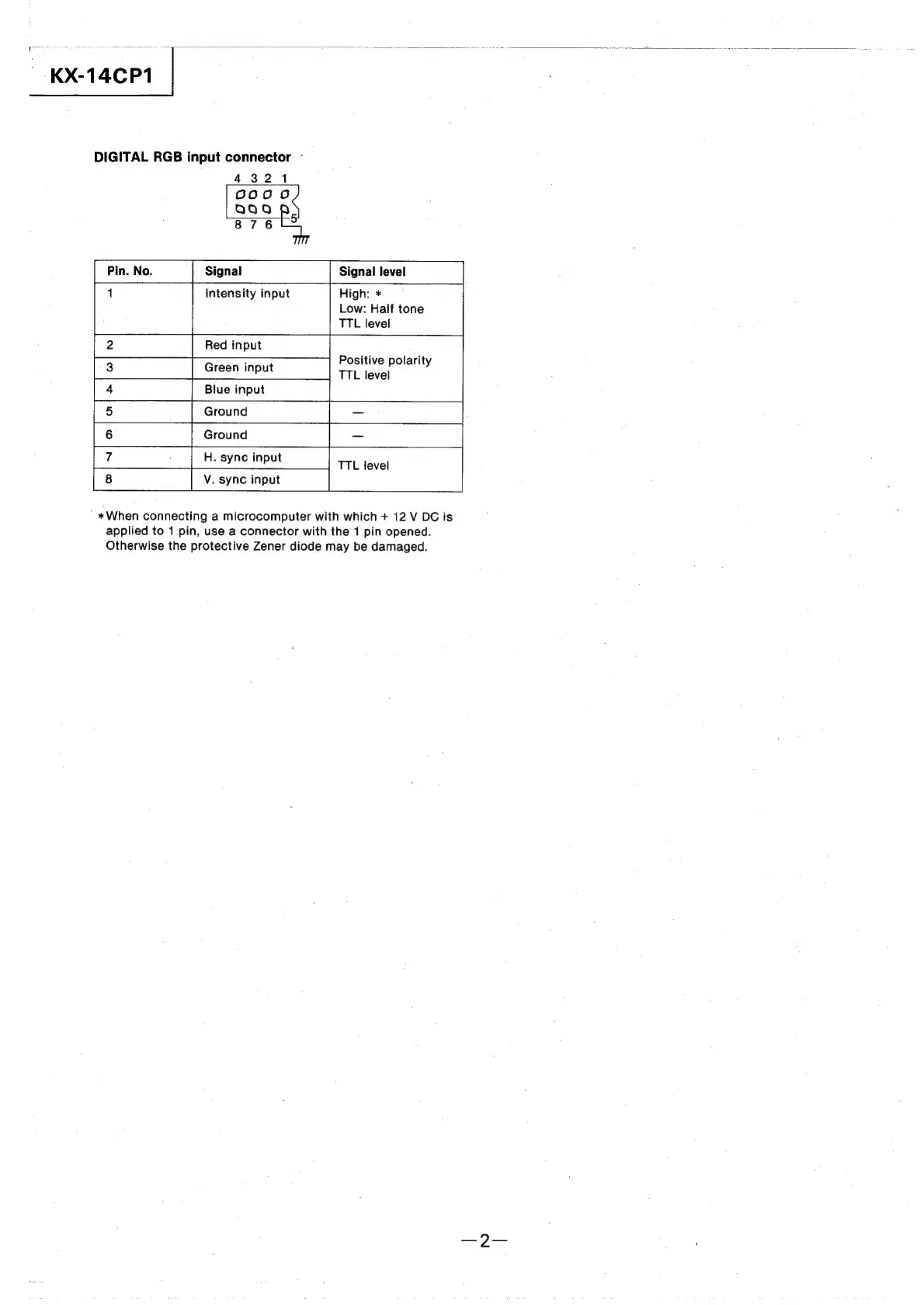

DIGITAL RGB input connector -
432 1
ooo 86
Q00
8762
Signal level
High: *
Low: Half tone
TTL level
Signal
Intensity input
Red input
Green input Positive polarity
TTL level
Blue input
Ground —
Ground _
H. sync input TTL level
V. sync input
* When connecting a microcomputer with which + 12 V DC is
applied to 1 pin, use a connector with the 1 pin opened.
Otherwise the protective Zener diode may be damaged.
