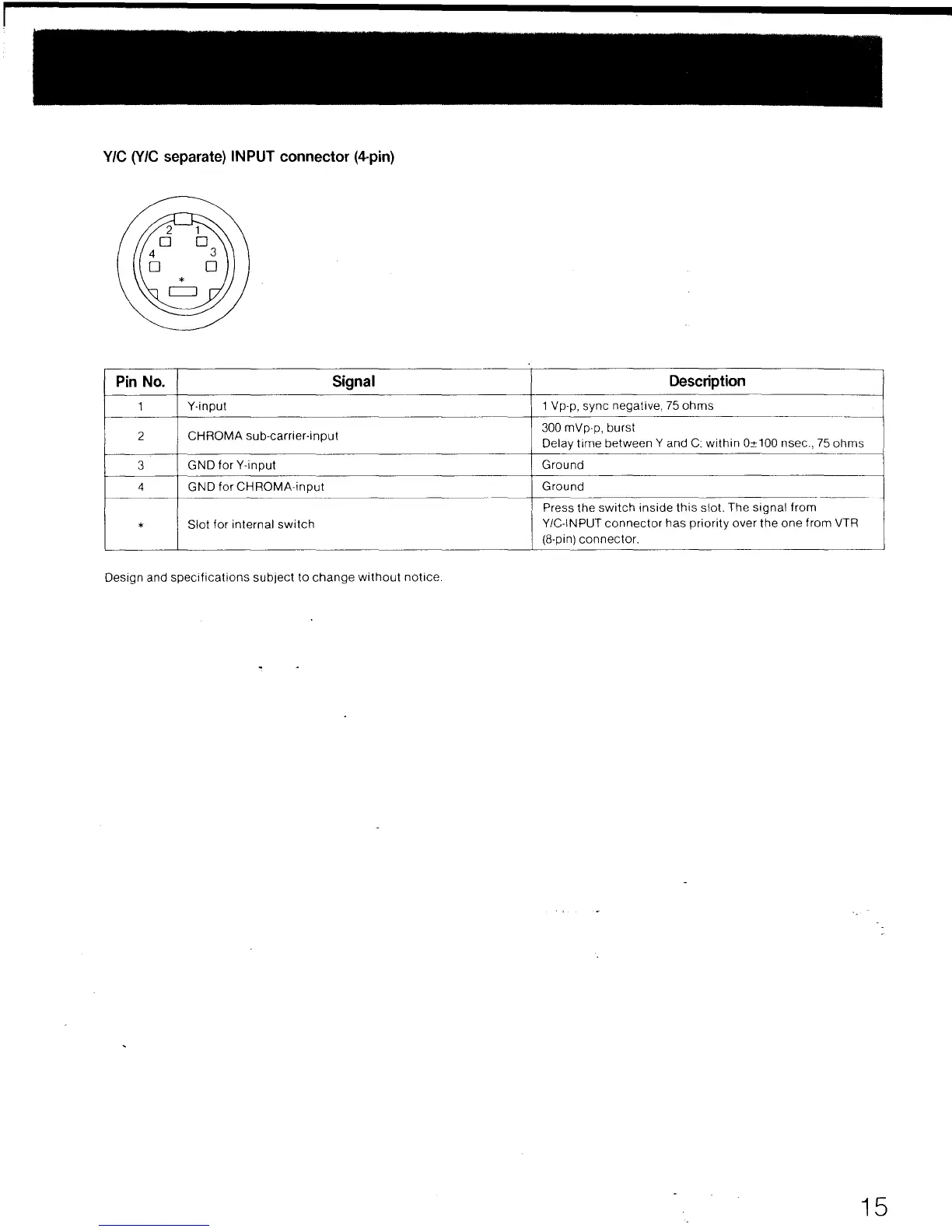

Y/C (Y/C separate) INPUT connector (4-pin)
Pin No.
Signal
Description
1
Y-input 1 Vp-p, sync negative, 75 ohms
-----~
2
CHROMA sub-carrier-input
300 mVp-p, burst
Delay time between Y and C: within 0±100 nsec., 75 ohms
-~--
3
GND for Y-input
Ground
4
GND for CHROMA-input Ground
~----
Press the switch inside this slot. The signal from
*
Slot for internal switch
Y/C-INPUT connector has priority over the one from VTR
(8-pin) connector.
Design and specifications subject to change without notice.
15
