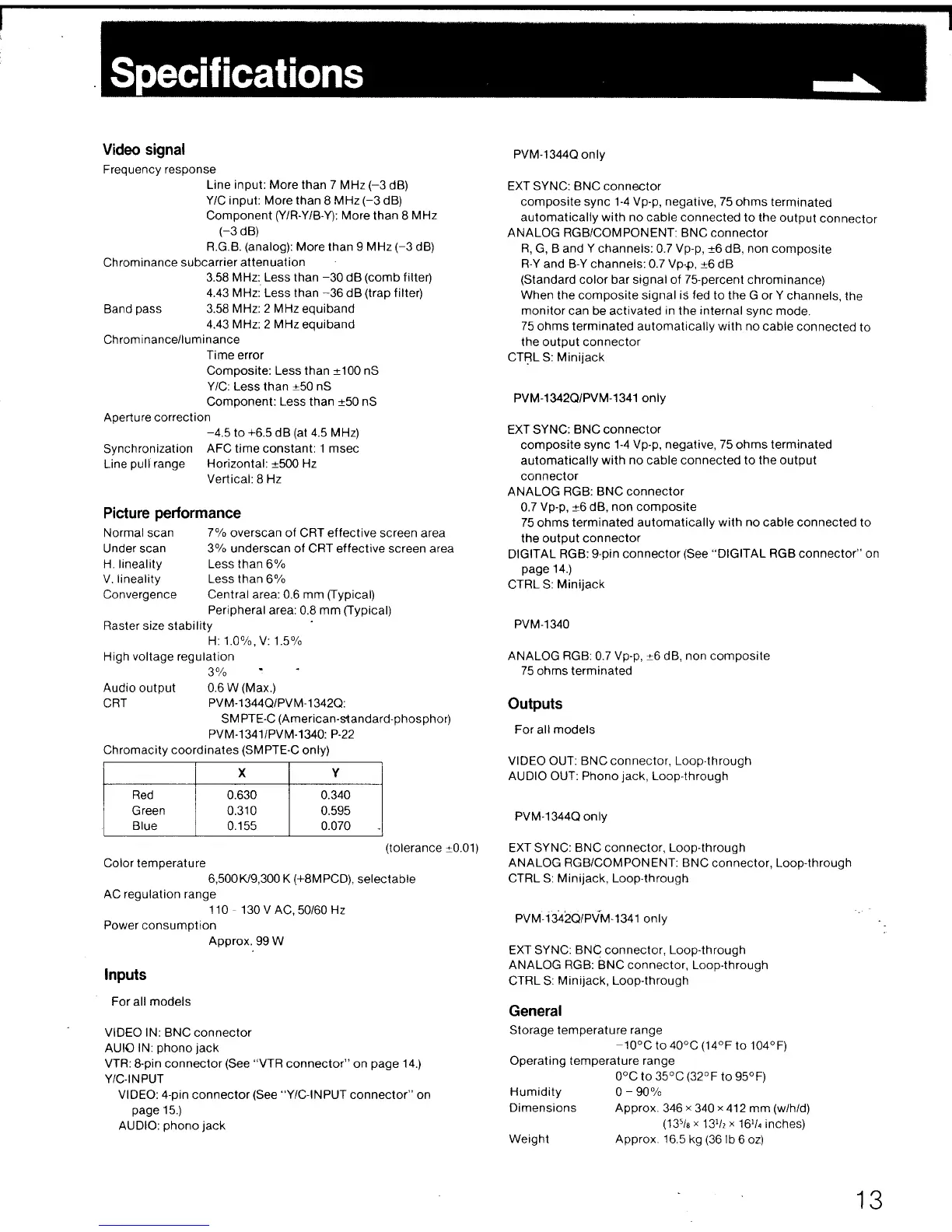

Specifications ......._
Video signal
Frequency response
Line input: More than 7 MHz (-3 dB)
Y/C input: More than 8 MHz (-3 dB)
Component (Y/R-Y/B-Y): More than 8 MHz
(-3dB)
R.G.B. (analog): More than 9 MHz (-3 dB)
Chrominance subcarrier attenuation
3.58 MHz: Less than -30 dB (comb filter)
4.43 MHz: Less than -36 dB (trap filter)
Band pass 3.58 MHz: 2 MHz equiband
4.43 MHz: 2 MHz equiband
Chrominance/luminance
Time error
Composite: Less than ±100 nS
Y/C: Less than ±50 nS
Component: Less than ±50 nS
Aperture correction
Synchronization
Line pull range
-4.5 to +6.5 dB (at 4.5 MHz)
AFC time constant: 1 msec
Horizontal: ±500 Hz
Vertical: 8 Hz
Picture performance
Normal scan
Under scan
H. lineality
V. lineality
7% overscan of CRT effective screen area
3% underscan of CRT effective screen area
Less than 6%
Less than 6%
Convergence Central area: 0.6 mm (Typical)
Peripheral area: 0.8 mm (Typical)
Raster size stability
H: 1.0%, V: 1.5%
High voltage regulation
Audio output
CRT
3%
0.6W(Max.)
PVM-1344O/PVM-1342O:
SM PTE-C (American-standard-phosphor)
PVM-1341/PVM-1340: P-22
Chromacity coordinates (SMPTE-C only)
X
y
Red 0.630 0.340
Green
0.310 0.595
Blue 0.155 0.070
-
(tolerance ±0.01)
Color temperature
6,500K/9,300 K (+8MPCD), selectable
AC regulation range
110 - 130 V AC, 50/60 Hz
Power consumption
Approx. 99W
Inputs
For all models
VIDEO IN: BNC connector
AUIO IN: phono jack
VTR: 8-pin connector (See "VTR connector" on page 14.)
Y/C-INPUT
VIDEO: 4-pin connector (See "Y/C-INPUT connector" on
page 15.)
AUDIO: phono jack
PVM-1344O only
EXT SYNC: BNC connector
composite sync 1-4 Vp-p, negative, 75 ohms terminated
automatically with no cable connected to the output connector
ANALOG RGB/COMPONENT: BNC connector
R, G, Band Y channels: 0.7 Vp-p, ±6 dB, non composite
R-Y and B-Y channels: 0.7 Vp-.p, ±6 dB
(Standard color bar signal of 75-percent chrominance)
When the composite signal is fed to the G or Y channels, the
monitor can be activated in the internal sync mode.
75 ohms terminated automatically with no cable connected to
the output connector
CTf:lL S: Minijack
PVM-13420/PVM-1341 only
EXT SYNC: BNC connector
composite sync 1-4 Vp-p, negative, 75 ohms terminated
automatically with no cable connected to the output
connector
ANALOG RGB: BNC connector
0.7 Vp-p, ±6 dB, non composite
75 ohms terminated automatically with no cable connected to
the output connector
DIGITAL RGB: 9-pin connector (See "DIGITAL RGB connector" on
page 14.)
CTRL S: Minijack
PVM-1340
ANALOG RGB: 0.7 Vp-p, ±6 dB, non composite
75 ohms terminated
Outputs
For all models
VIDEO OUT: BNC connector, Loop-through
AUDIO OUT: Phono jack, Loop-through
PVM-1344O only
EXT SYNC: BNC connector, Loop-through
ANALOG RGB/COMPONENT: BNC connector, Loop-through
CTRL S: Minijack, Loop-through
PVM-i 3420/PV-M-1341 only
EXT SYNC: BNC connector, Loop-through
ANALOG RGB: BNC connector, Loop-through
CTRL S: Minijack, Loop-through
General
Storage temperature range
-10°C to 40°C (14°F to 104°F)
Operating temperature range
0°C to 35°C (32°F to 95°F)
Humidity O - 90%
Dimensions Approx. 346 x 340 x 412 mm (w/h/d)
Weight
(135/s x 13
1
/, x 16¼ inches)
Approx 16.5 kg (36 lb 6 OZ)
