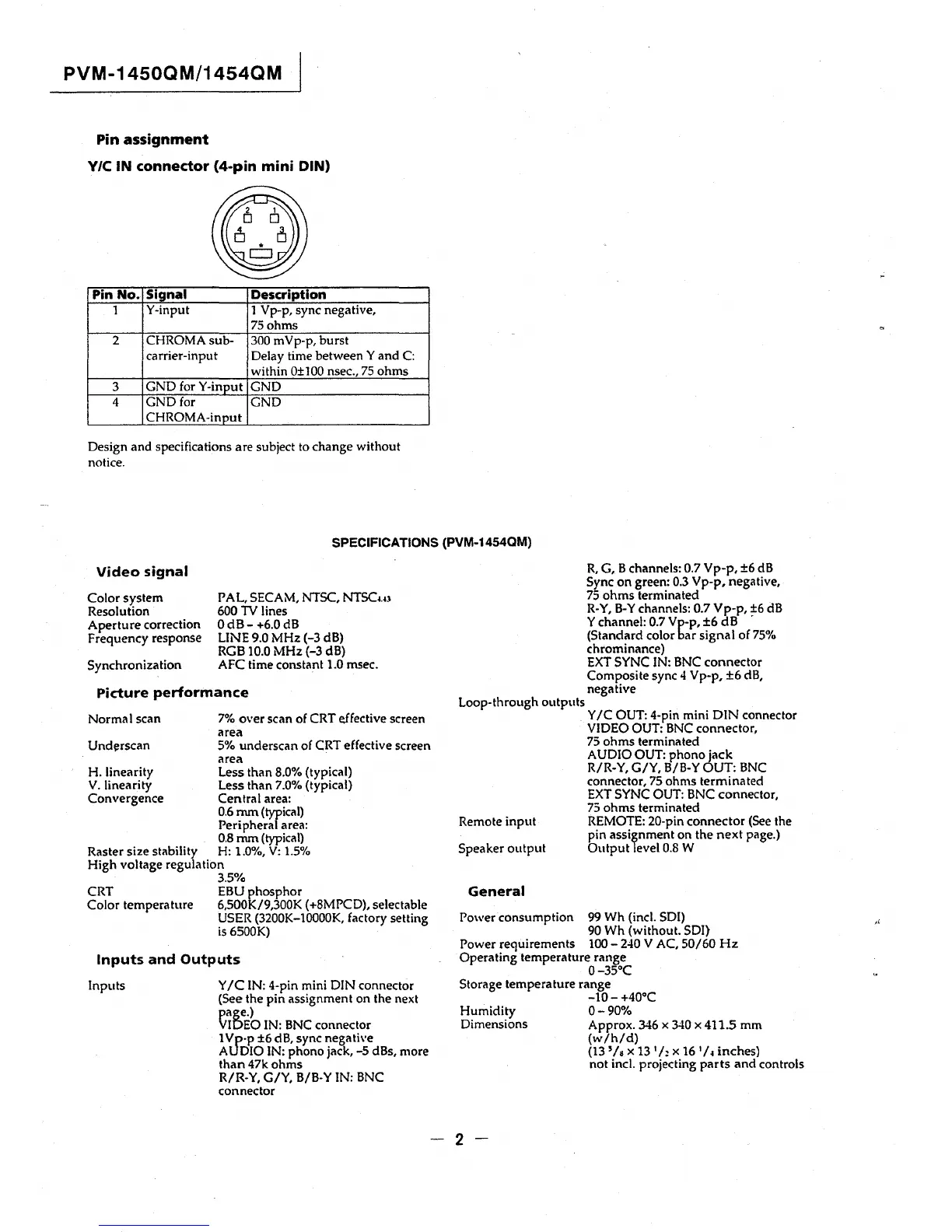

PVM-1450QM/1454QM
Pin assignment
V/C IN connector (4-pin mini DIN)
Pin No. Signal Description
1
Y-input 1 Vp-p, sync negative,
75 ohms
2 CHROMA sub- 300 mVp-p, burst
carrier-input Delay time between Y and C:
within 0+100 nsec., 75 ohms
3
GND for Y-inout
GND
4
GND for
GND
CHROMA-in out
Design and specifications are subject to change without
notice.
SPECIFICATIONS (PVM-1454QM)
Video signal
Color system
Resolution
Aperture correction
Frequency response
Synchronization
PAL, SECAM, NTSC, NTSCw
600 TV lines
OdB-+6.0dB
LINE 9.0 MHz (-3 dB)
RGB 10.0 MHz (-3 dB)
AFC time constant 1.0 msec.
Picture performance
7% over scan of CRT effective screen
area
Loop-through outputs
R, G, B channels: 0.7 Vp-p, ±6 dB
Sync on green: 0.3 Vp-p, negative,
75 ohms terminated
R-Y, B-Y channels: 0.7 Vp-p, ~6 dB
Y channel: 0.7 Vp-p, ±6 dB
(Standard color bar signal of 75%
chrominance)
EXT SYNC IN: BNC connector
Composite sync 4 Vp-p, ±6 dB,
negative
Y IC OUT: 4-pin mini DIN connector
VIDEO OUT: BNC connector,
Normal scan
Und!!rscan
5% underscan of CRT effective screen
75 ohms terminated
AUDIO OUT: phono jack
H. linearity
V. linearity
Convergence
area
Less than 8.0% (typical)
Less than 7.0% (typical)
Central area:
0.6 mm (typical)
Peripheraf area:
0.8 mm (typical)
Raster size stability H: 1.0%, V: 1.5%
High voltage regulation
CRT
Color temperature
3.5%
EBU phosphor
6,500K/9,300K (+8MPCD), selectable
USER (3200K-10000K, factory setting
is 6500K)
Inputs and Outputs
Inputs Y IC IN: 4-pin mini DIN connector
(See the pin assignment on the next
page.)
VIDEO IN: BNC connector
1 Vp·p ±6 dB, sync negative
AUDIO IN: phono jack, -5 dBs, more
than 47k ohms
R/R-Y, G/Y, B/B-Y IN: BNC
connector
R/R-Y, G/Y, B/B-Y OUT: BNC
connector, 75 ohms terminated
EXT SYNC OUT: BNC connector,
75 ohms terminated
Remote input REMOTE: 20-pin connector (See the
pin assignment on the next page.)
Speaker output Output level 0.8 W
General
Power consumption 99 Wh (incl. SDI)
90 Wh (without. SDI)
Power requirements 100- 240 V AC, 50/60 Hz
Operating temperature range
0-35°C
Storage temperature range
-10-+40°C
Humidity O - 90%
Dimensions Approx. 346 x 340 x 411.5 mm
(w/h/d)
(13 '/ • x 13
1
h x 16
1
/
~
inches)
not incl. projecting parts and controls
-2-
