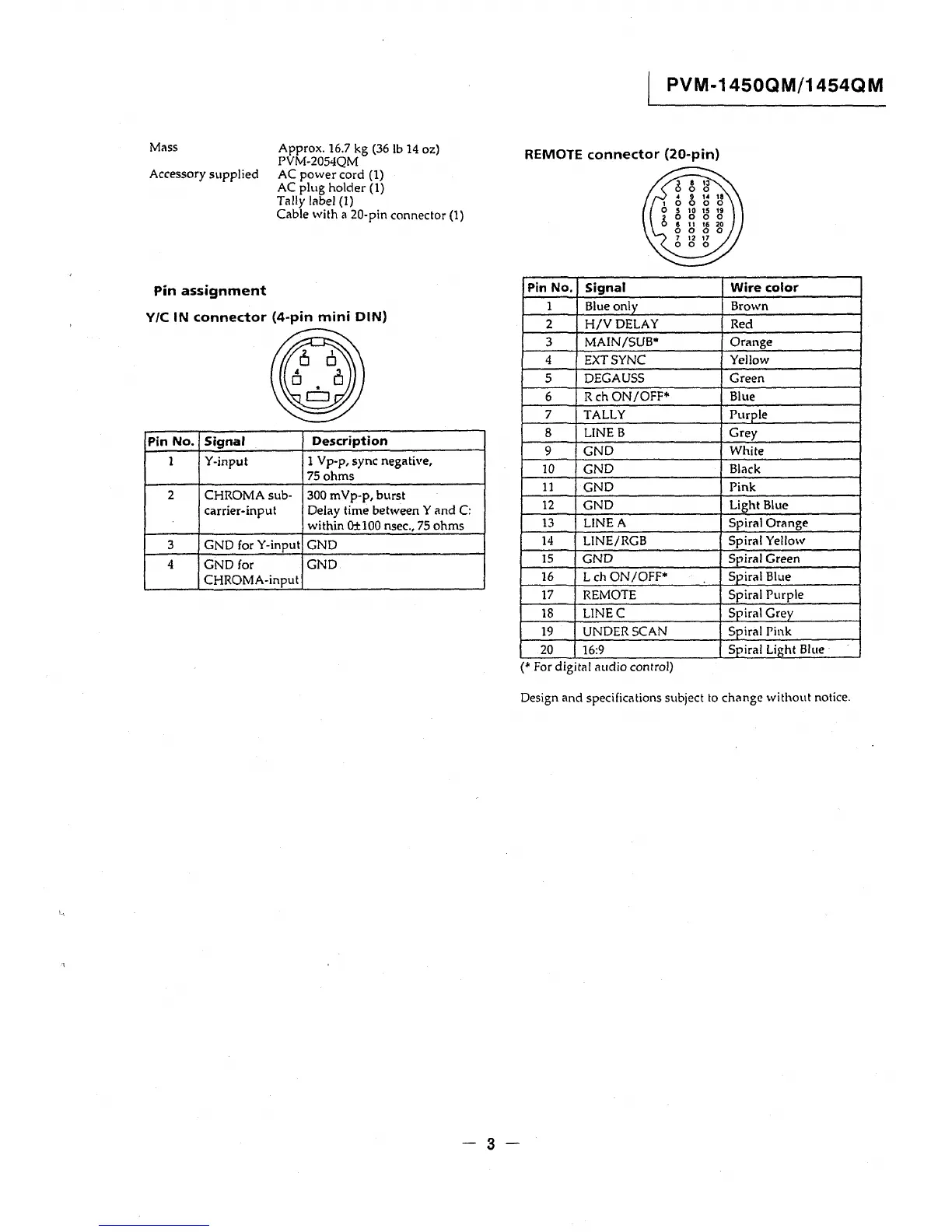

Mass
Approx. 16.7 kg (36 lb 14 oz)
PVM-2054QM
Accessory supplied
AC power cord (1)
AC plug holder (1)
Tally label (1)
Cable with a 20-pin connector (1)
Pin assignment
Y/C IN connector (4-pin mini DIN)
Pin No. Signal
Description
1
Y-input
l Vp-p, sync negative,
75ohms
2
CHROMA sub- 300 mVp-p, burst
carrier-input
Delay time between Y and C:
within 0±100 nsec., 75 ohms
3
GND for Y-input
GND
4
GND for GND
CHROMA-input
-3-
PVM-1450QM/1454QM
REMOTE connector (20-pin)
Pin No.
Signal
Wire color
1 Blue only Brown
2 H/VDELAY Red
3
MAIN/SUB• Orange
4 EXT SYNC Yellow
5
DEGAUSS Green
6
Reh ON/OFF• Blue
7 TALLY Purple
8
LINE B
Grey
9 GND
White
10 GND
Black
11
GND
Pink
12
GND
Light Blue
13 LINEA Spiral Orange
14 LINE/RGB
Spiral Yellow
15
GND
Spiral Green
16 Leh ON/OFF*
Spiral Blue
17
REMOTE
Spiral Purple
18 LINEC
Spiral Grey
19 UNDER SCAN
Spiral Pink
20 16:9
Spiral Light Blue
(* For digital audio control)
Design and specifications subject to change without notice.
