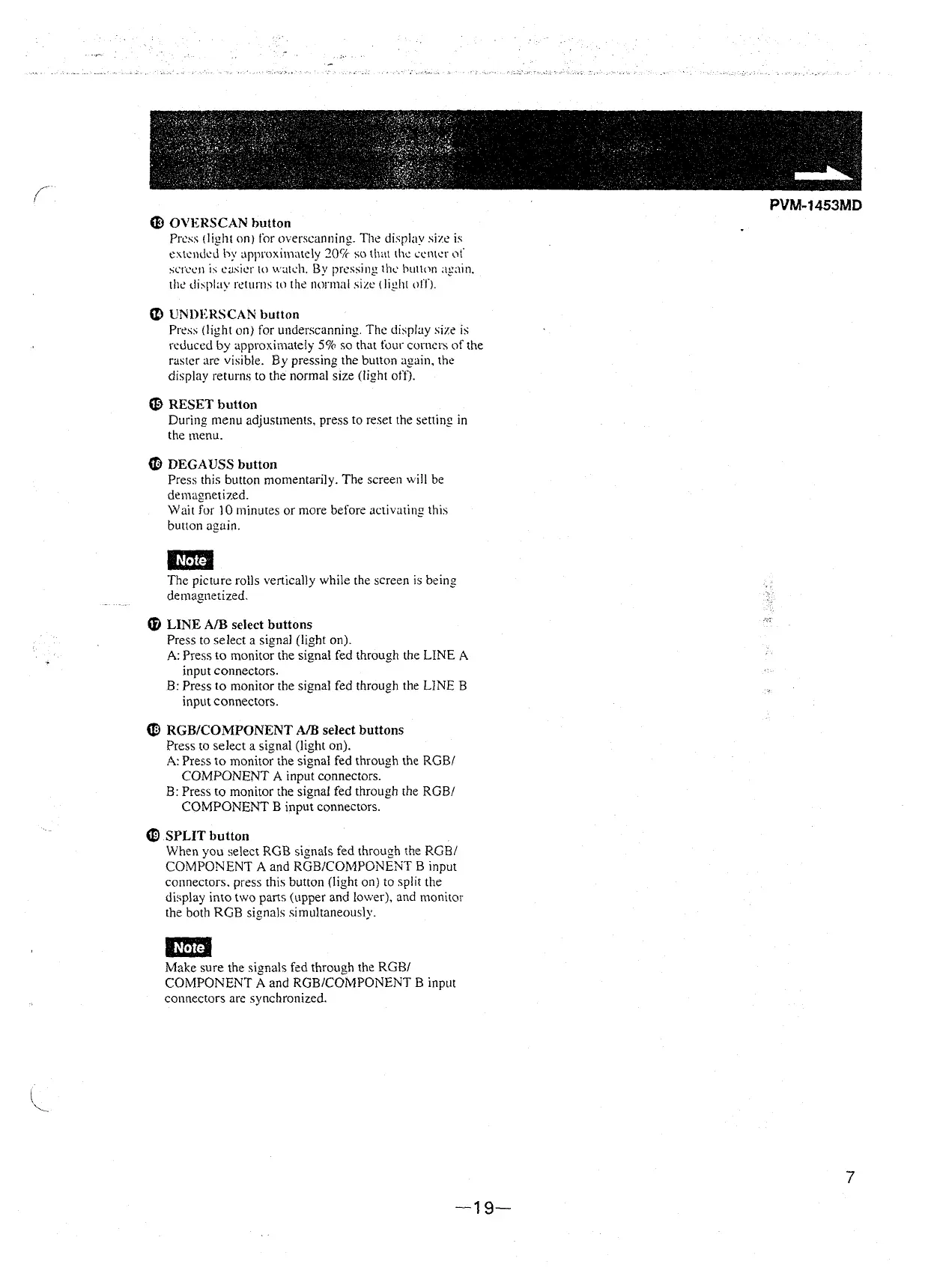

CF) OVERSCAN button
Press (light on) for overscanning. The disrlay size is
extemkd by approximately 2oc1c so that th<.: cel1\n ,)f
screen is easier to w,itch. By pressing the' bullon af,lin.
the display returns Ill the normal size ( light \lff}.
CI) UNDERSCAN button
Press {light on} for underscanning. The display size is
reduced by approximately 5% so that four corners of the
raster arc visible.
By pressing the button again, the
display returns to the normal size (light
off).
C9 RESET button
During menu adjustments, press to reset the setting in
the menu.
CB DEGAUSS button
Press this button momentarily. The screen will be
demagnetized.
Wait for 10 minutes or more before
activating this
button again.
en
The picture rolls vertically while the screen is being
demagnetized.
G) LINE A/B select buttons
Press to select a signal (light on).
A: Press to monitor the signal fed through the LINE A
input connectors.
B: Press to monitor the signal fed through the LINE B
input connectors.
(Ill RGB/COMPONENT A/B select buttons
Press to select a signal (light on).
A: Press to monitor the signal fed through the RGB/
COMPONENT A input connectors.
B: Press to monitor the signal fed through the RGB/
COMPONENT B input connectors.
'1J) SPLIT button
When you select RGB signals fed through the RGB/
COMPONENT A and RGB/COMPONENT B input
connectors. press this button (light on) to split the
display into two parts (upper and lower), and monitor
the both RGB signals simultaneously.
m
Make sure the signals fed through the RGB/
COMPONENT A and RGB/COMPONENT B input
connectors are synchronized.
-19-
PVM-1453MD
