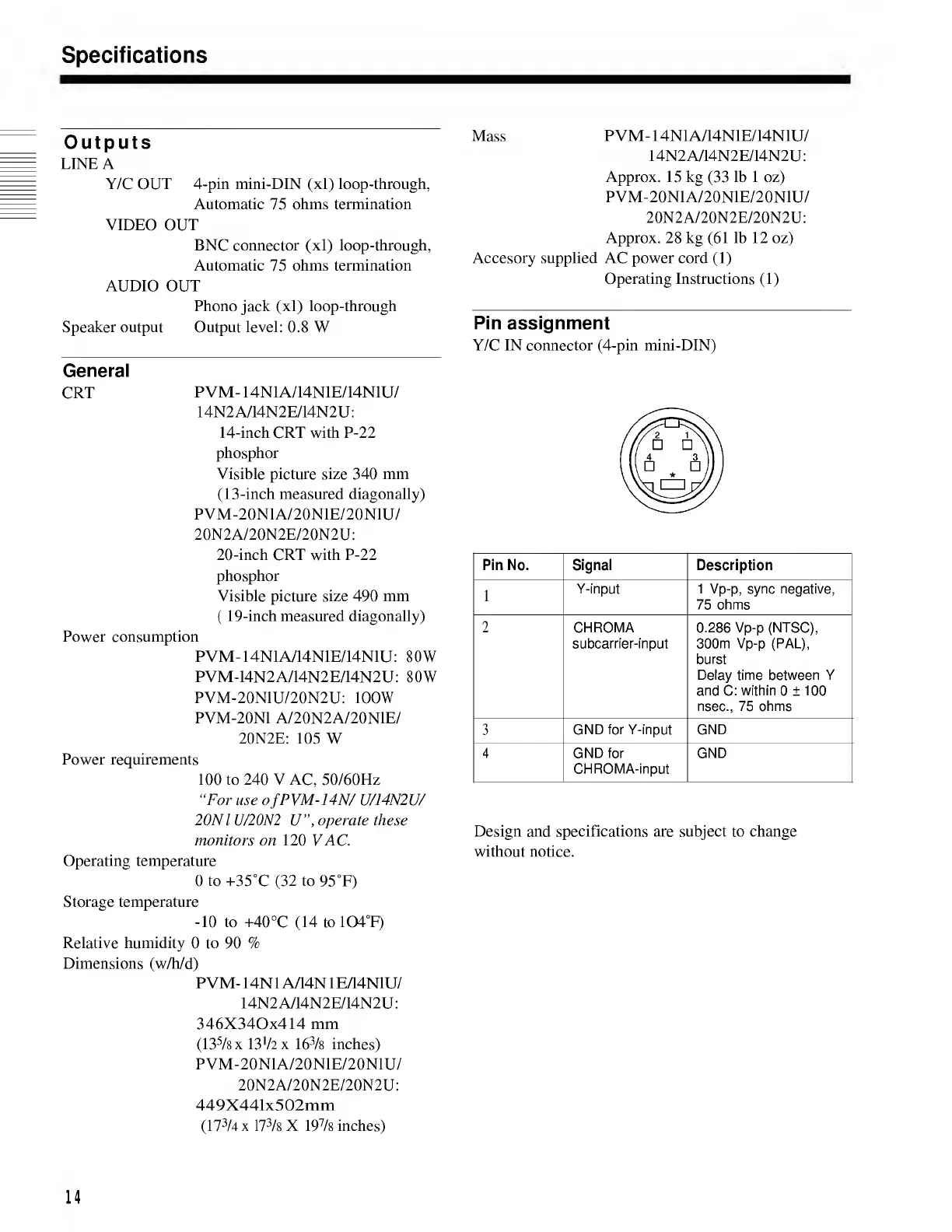

Specifications
_ Outputs
= LINE A
- Y/C OUT 4-pin mini-DTN (xl) loop-through,
: Automatic 75 ohms termination
VIDEO OUT
BNC connector (xl) loop-through.
Automatic 75 ohms termination
AUDIO OUT
Phono jack (xl) loop-through
Speaker output Output level: 0.8 W
General
CRT PVM-14N1A/14N1E/14N1U/
14N2A/14N2E/14N2U:
14-inch CRT with P-22
phosphor
Visible picture size 340 mm
(13-inch measured diagonally)
PVM-20N1A/20N1E/20N1U/
20N2A/20N2E/20N2U:
20-inch CRT with P-22
phosphor
Visible picture size 490 mm
( 19-inch measured diagonally)
Power consumption
PVM-14N1A/14N1E/14N1U: 80W
PVM-14N2A/14N2E/14N2U: 80W
PVM-20N1U/20N2U: 100W
PVM-20N1 A/20N2A/20N1E/
20N2E: 105 W
Power requirements
100 to 240 V AC, 50/60Hz
“For use ofPVM-14N/ U/14N2U/
20NI U/20N2 U”, operate these
monitors on 120 VAC.
Operating temperature
0 to +35°C (32 to 95°F)
Storage temperature
-10 to +40 °C (14 to 104°F)
Relative humidity 0 to 90 %
Dimensions (w/h/d)
PVM- 14N1A/14N1E/14N1U/
14N2 A/14N 2E/14N 2U:
346X340x414 mm
(13 5 /8x 1372 x 16 3 /s inches)
PVM-20N1A/20N1E/20N1U/
20N2A/20N2E/20N2U:
449X441x502mm
(17 3 /4 x 17 3 /8 X 19 7 /8 inches)
Mass PVM-14N1A/14N1E/14N1U/
14N2A/14N2E/14N2U:
Approx. 15 kg (33 lb 1 oz)
PVM-20N1A/20N1E/20N1U/
20N2A/20N2E/20N2U:
Approx. 28 kg (61 lb 12 oz)
Accesory supplied AC power cord (1)
Operating Instructions (1)
Pin assignment
Y/C IN connector (4-pin mini-DIN)
Pin No.
Signal
Description
1
Y-input 1 Vp-p, sync negative,
75 ohms
2 CHROMA
subcarrier-input
0.286 Vp-p (NTSC),
300m Vp-p (PAL),
burst
Delay time between Y
and 6: within 0 ± 100
nsec., 75 ohms
3
GND for Y-input GND
4 GND for
CHROMA-input
GND
Design and specifications are subject to change
without notice.
