Connections ■ Specifications
Video signal
Color system NTSC, PAL, SECAM,
Resolution 500 TV lines
Frequency response
LINE 6 MHz±3dB (Y signal)
RGB 6 MHz±3dB
Picture performance
Normal scan 7 % over scan of CRT effective
screen area
H. linearity Less than 8.0 % (typical)
V. linearity Less than 7.0 % (typical)
Color temperature 6,500 K
Inputs
LINE A/B
Y/C IN 4-pin mini-DIN(X2)
See the pin assignment on the next
page.
VIDEO IN BNC connector (X2), lVp-p +3 dB,
-6 dB, sync negative
AUDIO IN Phono jack (X2), -5 dBu a ), more
than 47 kilo-ohms
RGB (PVM-14N2A/14N2E/14N2U/20N2A/20N2E/
20N2U only)
R/G/B BNC connector (X3)
0.7 Vp-p +3 dB, -6 dB
Sync on green: 0.3 Vp-p, negative.
Automatic 75 ohms termination
AUDIO IN Phono jack (xl), -5 dBu a ), more
than 47 kilo-ohms
EXT SYNC BNC connector (XI)
4 Vp-p +3 dB, -6 dB, sync negative
REMOTE (PVM-14N2A/14N2E/14N2U/20N2A/
20N2E/20N2U only)
Phono jack (XI)
Open: currently selected input
signal
Low state (GND): input signal
selected prior to the current
input signal
a) 0 dBu = 0.775 Vr.m.s.

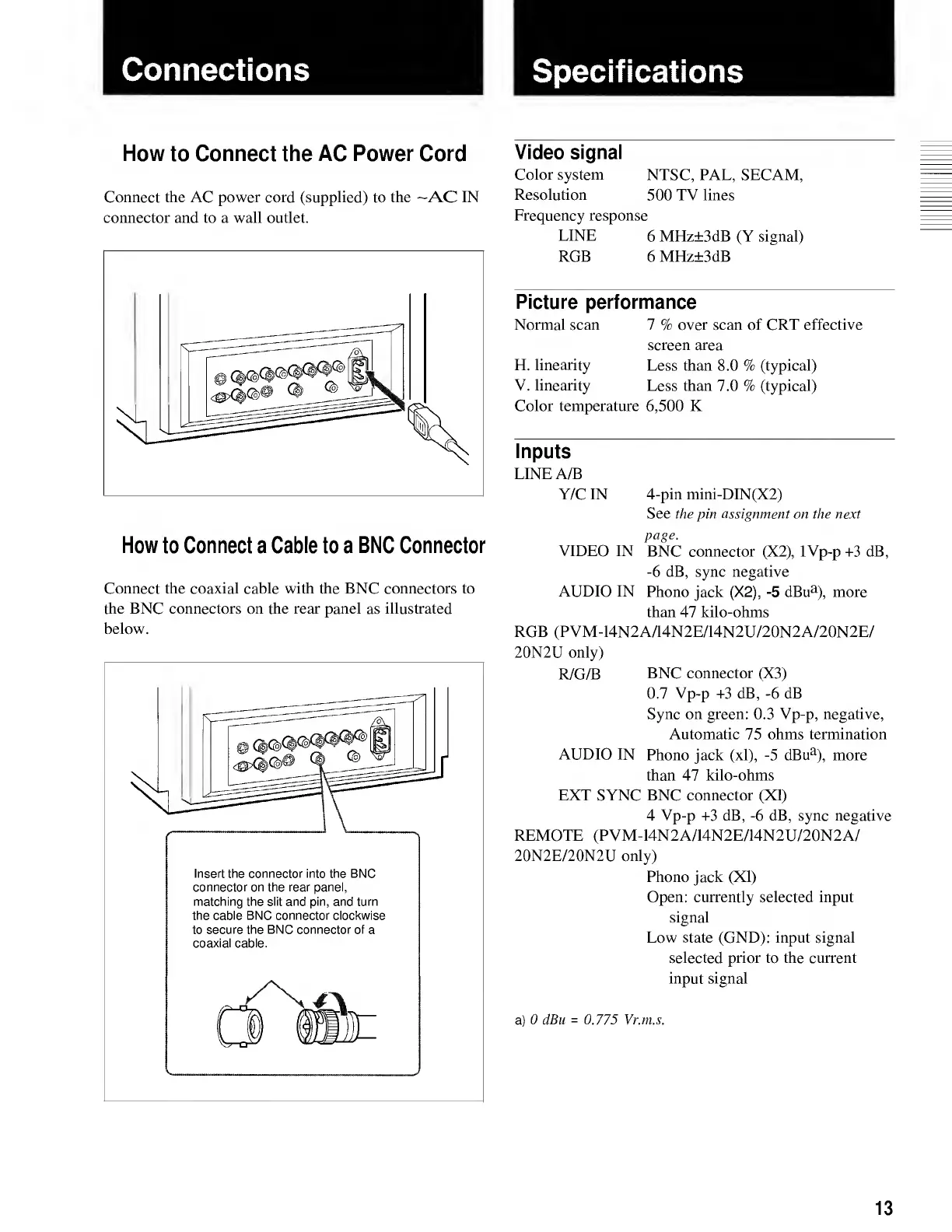

How to Connect the AC Power Cord
Connect the AC power cord (supplied) to the ~AC IN
connector and to a wall outlet.
How to Connect a Cable to a BNC Connector
Connect the coaxial cable with the BNC connectors to
the BNC connectors on the real - panel as illustrated
below.
13
