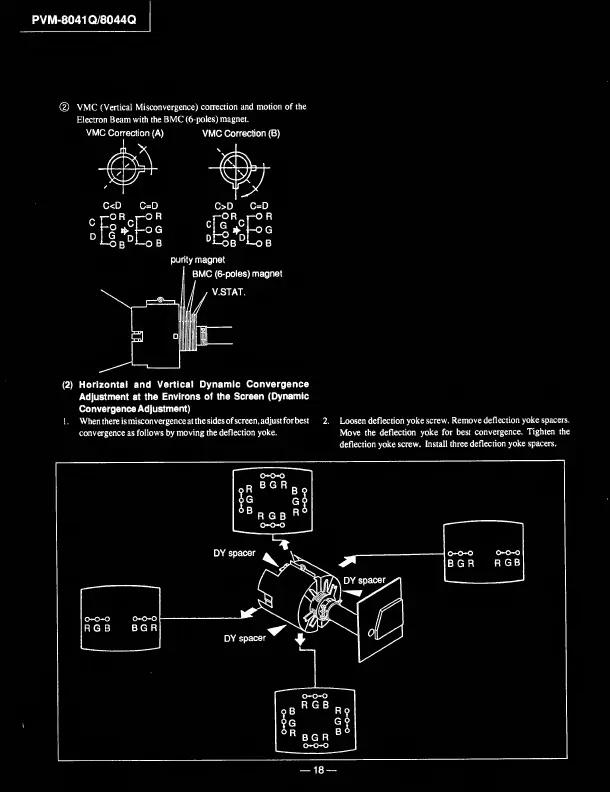

© VMC (Vertical Misconvergence) correction and motion of the
Electron Beam with the BMC (6-poles) magnet.
VMC Correction (A) VMC Correction (B)
C<D C=D
C>D C=D
purity magnet
(2) Horizontal and Vertical Dynamic Convergence
Adjustment at the Environs of the Screen (Dynamic
Convergence Adjustment)
1. When there is misconvergence at the sides of screen, adjust for best 2. Loosen deflection yoke screw. Remove deflection yoke spacers,
convergence as follows by moving the deflection yoke. Move the deflection yoke for best convergence. Tighten the
deflection yoke screw. Install three deflection yoke spacers.
o-o-o o-o-o
RGB BG R
— 18 —
