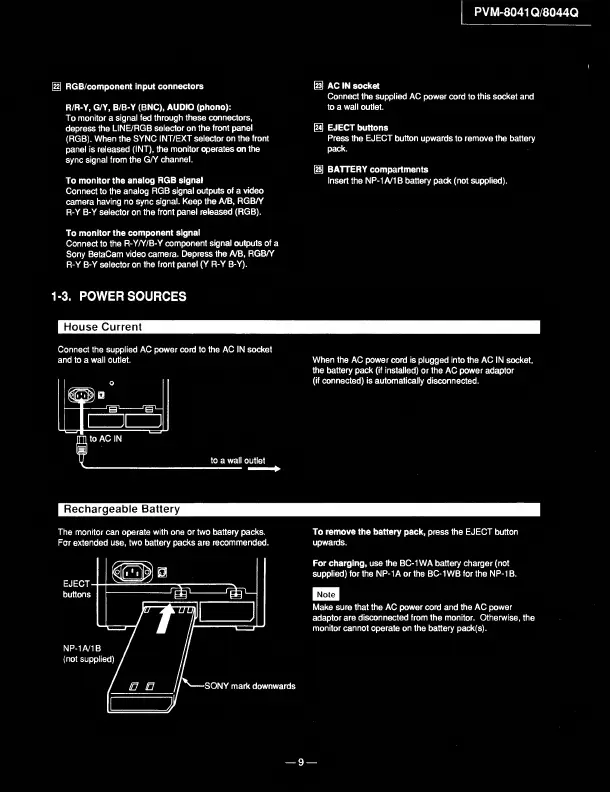

PVM-8041Q/8044Q
HO RGB/component input connectors
R/R-Y, G/Y, B/B-Y (BNC), AUDIO (phono):
To monitor a signal fed through these connectors,
depress the LINE/RGB selector on the front panel
(RGB). When the SYNC INT/EXT selector on the front
panel is released (INT), the monitor operates on the
sync signal from the G/Y channel.
To monitor the analog RGB signal
Connect to the analog RGB signal outputs of a video
camera having no sync signal. Keep the A/B, RGB/Y
R-Y B-Y selector on the front panel released (RGB).
To monitor the component signal
Connect to the R-Y/Y/B-Y component signal outputs of a
Sony BetaCam video camera. Depress the A/B, RGB/Y
R-Y B-Y selector on the front panel (Y R-Y B-Y).
M AC IN socket
Connect the supplied AC power cord to this socket and
to a wall outlet.
[HI EJECT buttons
Press the EJECT button upwards to remove the battery
pack.
Hj] BATTERY compartments
Insert the NP-1 A/1 B battery pack (not supplied).
1-3. POWER SOURCES
House Current
Connect the supplied AC po\
and to a wall outlet.
tJ§o
T --—fg 1 - f M 1 —
/ver cord to the AC IN socket
When the AC power cord is plugged into the AC IN socket,
the battery pack (if installed) or the AC power adaptor
(if connected) is automatically disconnected.
|l- T
[HI to AC IN
!_
to a wall outlet
Rechargeable Battery
The monitor can operate with one or two battery packs.
For extended use, two battery packs are recommended.
To remove the battery pack, press the EJECT button
upwards.
For charging, use the BC-1WA battery charger (not
supplied) for the NP-1 A or the BC-1WB for the NP-1B.
Bill
Make sure that the AC power cord and the AC power
adaptor are disconnected from the monitor. Otherwise, the
monitor cannot operate on the battery pack(s).
— 9 —
