PVM-8041Q/8044Q

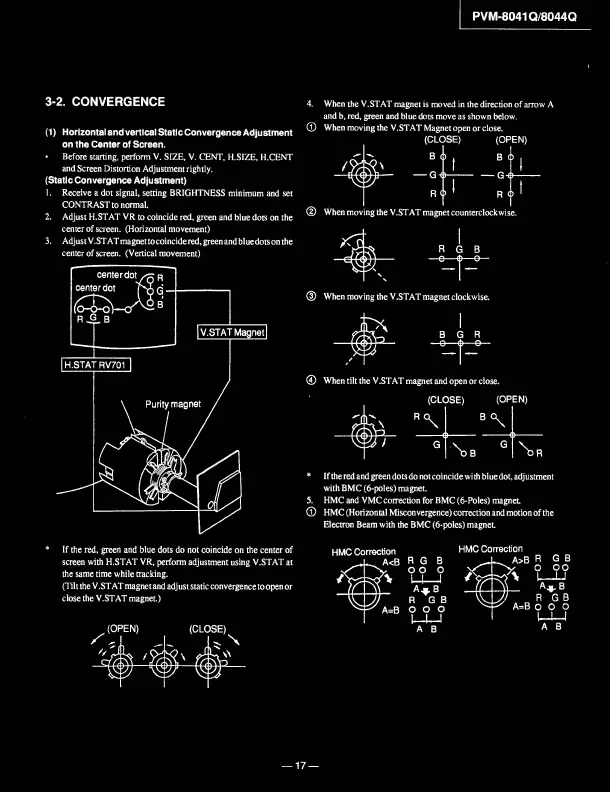

3-2.
CONVERGENCE
(1)
Horizontal
and
vertical
Static
Convergence
Adjustment
on
the
Center
of
Screen.
Before
starting,
perform
V.
SIZE,
V.
CENT,
H.SIZE,
H.CENT
and
Screen
Distortion
Adjustment
rightly.
(Static
Convergence
Adjustment)
1.
Receive
a
dot
signal,
setting
BRIGHTNESS
minimum
and
set
CONTRAST
to
normal.
2.
Adjust
H.STAT
VR
to
coincide
red,
green
and
blue
dots
on
the
center
of
screen.
(Horizontal
movement)
3.
Adjust
V.STAT
magnettocoincidered,greenandbluedotsonthe
center
of
screen.
(Vertical
movement)
4.
W
hen
the
V.STAT
magnet
is
moved
in
the
direction
of
arrow
A
and
b,
red,
green
and
blue
dots
move
as
shown
below.
©
When
moving
the
V.STAT
Magnet
open
or
close.
(CLOSE)
(OPEN)
©
When
moving
the
V.STAT
magnet
counterclockwise.
®
When
moving
the
V.STAT
magnet
clockwise.
©
When
tilt
the
V.STAT
magnet
and
open
or
close.
(CLOSE)
(OPEN)
*
If
the
red
and
green
dots
do
not
coincide
with
blue
dot,
adjustment
with
BMC
(6-poles)
magnet.
5.
H
MC
and
VMC
correction
for
BMC
(6-Poles)
magnet.
©
HMC
(Horizontal
Misconvergence)
correction
and
motion
of
the
Electron
Beam
with
the
BMC
(6-poles)
magnet.
If
the
red,
green
and
blue
dots
do
not
coincide
on
the
center
of
screen
with
H.STAT
VR,
perform
adjustment
using
V.STAT
at
the
same
time
while
tracking.
(Tilt
the
V.STAT
magnet
and
adjust
static
convergence
to
open
or
close
the
V.STAT
magnet.)
HMC
Correction
A<B
R
G
B
X
00
HMC
Correction
A>B
R
G
I
A=B
O
O
O
17
