PVM-8041Q/8044Q

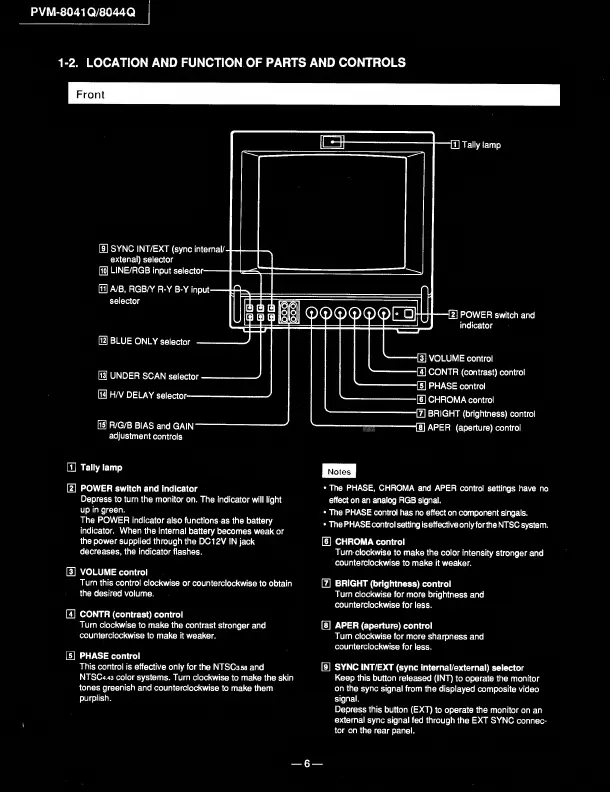

1-2. LOCATION AND FUNCTION OF PARTS AND CONTROLS
CD Tally lamp
[H POWER switch and indicator
Depress to turn the monitor on. The indicator will light
up in green.
The POWER indicator also functions as the battery
indicator. When the internal battery becomes weak or
the power supplied through the DC12V IN jack
decreases, the indicator flashes.
S VOLUME control
Turn this control clockwise or counterclockwise to obtain
the desired volume.
[H CONTR (contrast) control
Turn clockwise to make the contrast stronger and
counterclockwise to make it weaker.
® PHASE control
This control is effective only for the NTSC3.58 and
NTSC4.43 color systems. Turn clockwise to make the skin
tones greenish and counterclockwise to make them
purplish.
• The PHASE, CHROMA and APER control settings have no
effect on an analog RGB signal.
• The PHASE control has no effect on component singals.
• The PHASE control setting is effective only for the NTSC system.
GE CHROMA control
Turn clockwise to make the color intensity stronger and
counterclockwise to make it weaker.
0 BRIGHT (brightness) control
Turn clockwise for more brightness and
counterclockwise for less.
[U APER (aperture) control
Turn clockwise for more sharpness and
counterclockwise for less.
E SYNC INT/EXT (sync internal/external) selector
Keep this button released (INT) to operate the monitor
on the sync signal from the displayed composite video
signal.
Depress this button (EXT) to operate the monitor on an
external sync signal fed through the EXT SYNC connec¬
tor on the rear panel.
