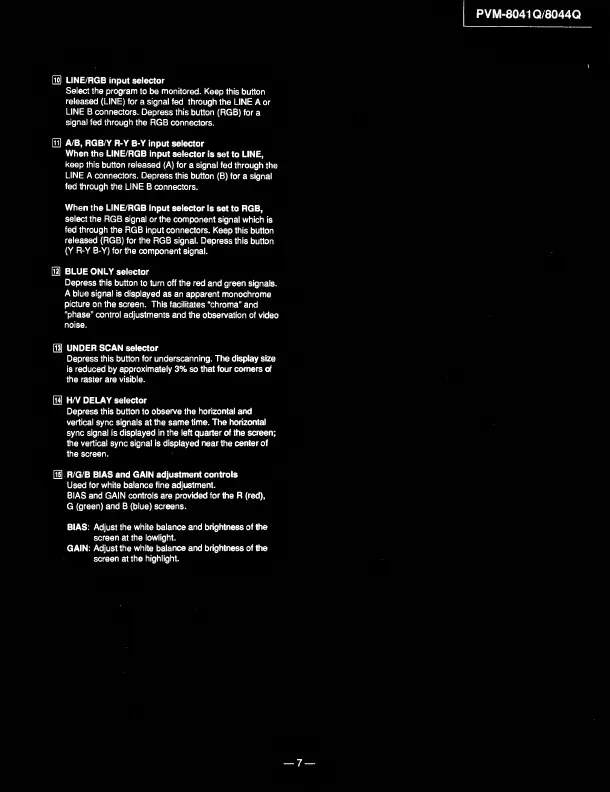

® LINE/RGB input selector
Select the program to be monitored. Keep this button
released (LINE) for a signal fed through the LINE A or
LINE B connectors. Depress this button (RGB) for a
signal fed through the RGB connectors.
® A/B, RGB/Y R-Y B-Y input selector
When the LINE/RGB input selector is set to LINE,
keep this button released (A) for a signal fed through the
LINE A connectors. Depress this button (B) for a signal
fed through the LINE B connectors.
When the LINE/RGB input selector is set to RGB,
select the RGB signal or the component signal which is
fed through the RGB input connectors. Keep this button
released (RGB) for the RGB signal. Depress this button
(Y R-Y B-Y) for the component signal.
0H BLUE ONLY selector
Depress this button to turn off the red and green signals.
A blue signal is displayed as an apparent monochrome
picture on the screen. This facilitates “chroma” and
“phase” control adjustments and the observation of video
noise.
[1! UNDER SCAN selector
Depress this button for underscanning. The display size
is reduced by approximately 3% so that four corners of
the raster are visible.
Ql H/V DELAY selector
Depress this button to observe the horizontal and
vertical sync signals at the same time. The horizontal
sync signal is displayed in the left quarter of the screen;
the vertical sync signal is displayed near the center of
the screen.
® .R/G/B BIAS and GAIN adjustment controls
Used for white balance fine adjustment.
BIAS and GAIN controls are provided for the R (red),
G (green) and B (blue) screens.
BIAS: Adjust the white balance and brightness of the
screen at the lowlight.
GAIN: Adjust the white balance and brightness of the
screen at the highlight.
