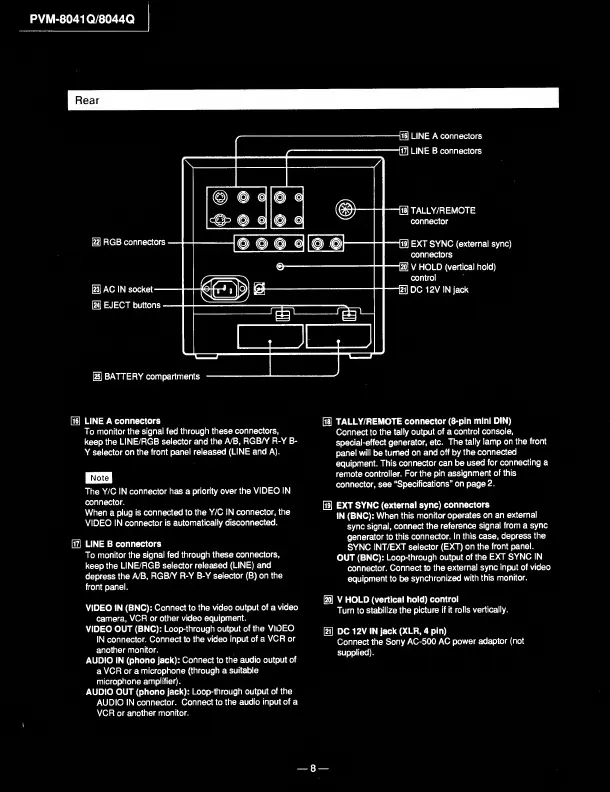

PVM-8041Q/8044Q
Rear
EH
LINE
A
connectors
To
monitor
the
signal
fed
through
these
connectors,
keep
the
LINE/RGB
selector
and
the
A/B,
RGB/Y
R-Y
B-
Y
selector
on
the
front
panel
released
(LINE
and
A).
U33
The
Y/C
IN
connector
has
a
priority
over
the
VIDEO
IN
connector.
When
a
plug
is
connected
to
the
Y/C
IN
connector,
the
VIDEO
IN
connector
is
automatically
disconnected.
EH
LINE
B
connectors
To
monitor
the
signal
fed
through
these
connectors,
keep
the
LINE/RGB
selector
released
(LINE)
and
depress
the
A/B,
RGB/Y
R-Y
B-Y
selector
(B)
on
the
front
panel.
VIDEO
IN
(BNC):
Connect
to
the
video
output
of
a
video
camera,
VCR
or
other
video
equipment.
VIDEO
OUT
(BNC):
Loop-through
output
of
the
VIDEO
IN
connector.
Connect
to
the
video
input
of
a
VCR
or
another
monitor.
AUDIO
IN
(phono
jack):
Connect
to
the
audio
output
of
a
VCR
or
a
microphone
(through
a
suitable
microphone
amplifier).
AUDIO
OUT
(phono
jack):
Loop-through
output
of
the
AUDIO
IN
connector.
Connect
to
the
audio
input
of
a
VCR
or
another
monitor.
E3
TALLY/REMOTE
connector
(8-pin
mini
DIN)
Connect
to
the
tally
output
of
a
control
console,
special-effect
generator,
etc.
The
tally
lamp
on
the
front
panel
will
be
turned
on
and
off
by
the
connected
equipment.
This
connector
can
be
used
for
connecting
a
remote
controller.
For
the
pin
assignment
of
this
connector,
see
“Specifications”
on
page
2.
HH
EXT
SYNC
(external
sync)
connectors
IN
(BNC):
When
this
monitor
operates
on
an
external
sync
signal,
connect
the
reference
signal
from
a
sync
generator
to
this
connector.
In
this
case,
depress
the
SYNC
INT/EXT
selector
(EXT)
on
the
front
panel.
OUT
(BNC):
Loop-through
output
of
the
EXT
SYNC
IN
connector.
Connect
to
the
external
sync
input
of
video
equipment
to
be
synchronized
with
this
monitor.
|g]
V
HOLD
(vertical
hold)
control
Turn
to
stabilize
the
if
it
rolls
vertically.
[HI
DC
12V
IN
jack
(XLR,
4
pin)
Connect
the
Sony
AC-500
AC
power
adaptor
(not
supplied).
