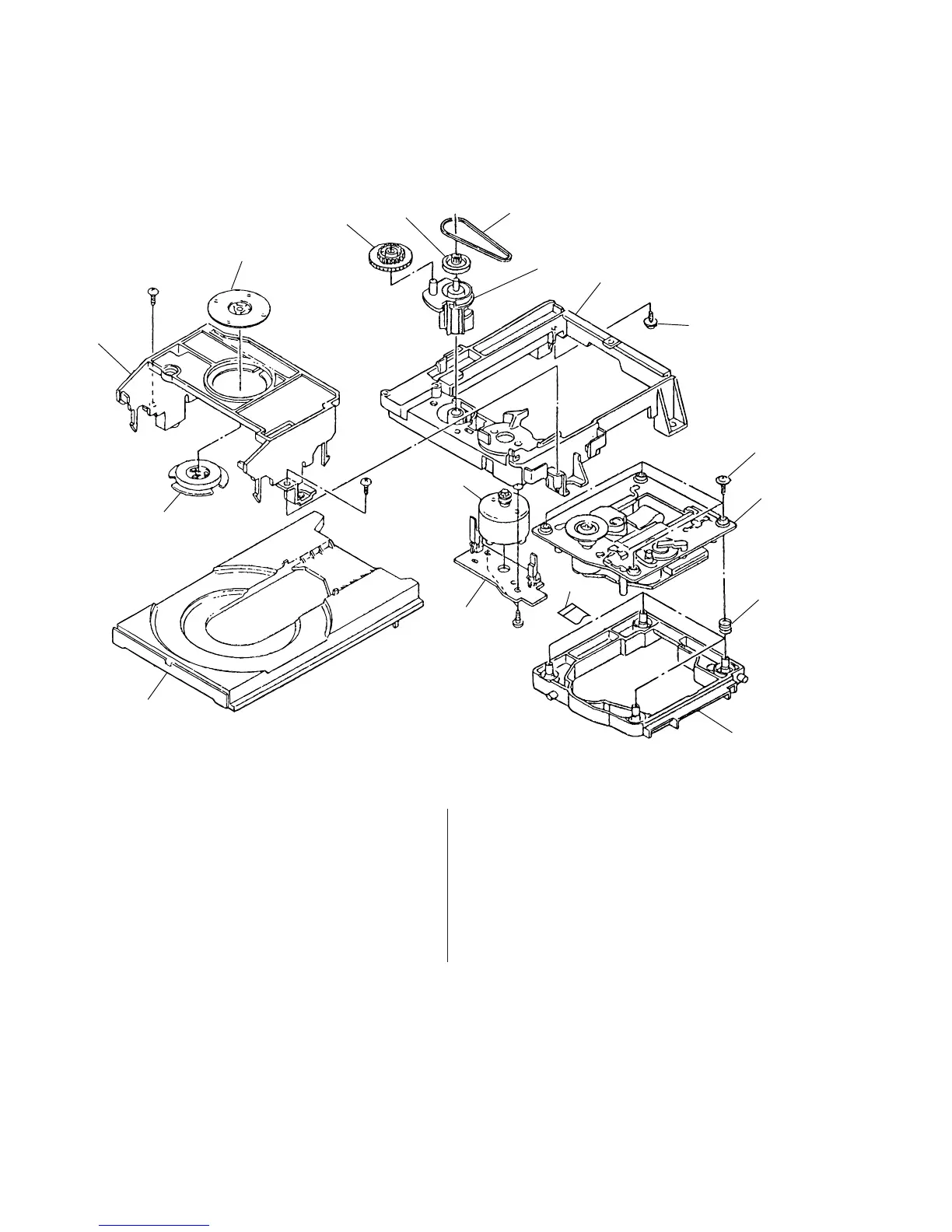

Sony TXD-RE210 - CD Mechanism Section-1 Exploded View

– 34 –
201 4-960-836-01 TABLE, DISC
202 4-960-835-01 HOLDER (M)
203 1-452-719-11 MAGNET ASSY
204 4-960-842-01 GEAR (P)
205 4-960-841-01 PULLEY (S)
206 4-927-649-01 BELT
* 207 4-960-839-01 CAM
208 4-960-838-03 BASE (MD)
209 4-917-583-21 BRACKET, YOKE
210 4-933-134-01 SCREW (+PTPWH M2.6X6)
211 4-959-996-01 SPRING (932), COMPRESSION
212 4-960-834-01 HOLDER (BU)
* 213 1-650-836-11 LOADING BOARD
214 1-751-806-11 WIRE (FLAT TYPE) (5 CORE)
M903 A-4604-363-A MOTOR (L) ASSY (LOADING)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
––––––– ––––––– –––––––––– ––––––– ––––––– ––––––– –––––––––– ––––––
7-5. CD MECHANISM SECTION-1
CDM28-5BD23
#7
#7
#5
M903
BU-5BD23
201
202
203
(including ¢ A)
204
205
206
207
208
209
210
211
212
213
214
¢ A
