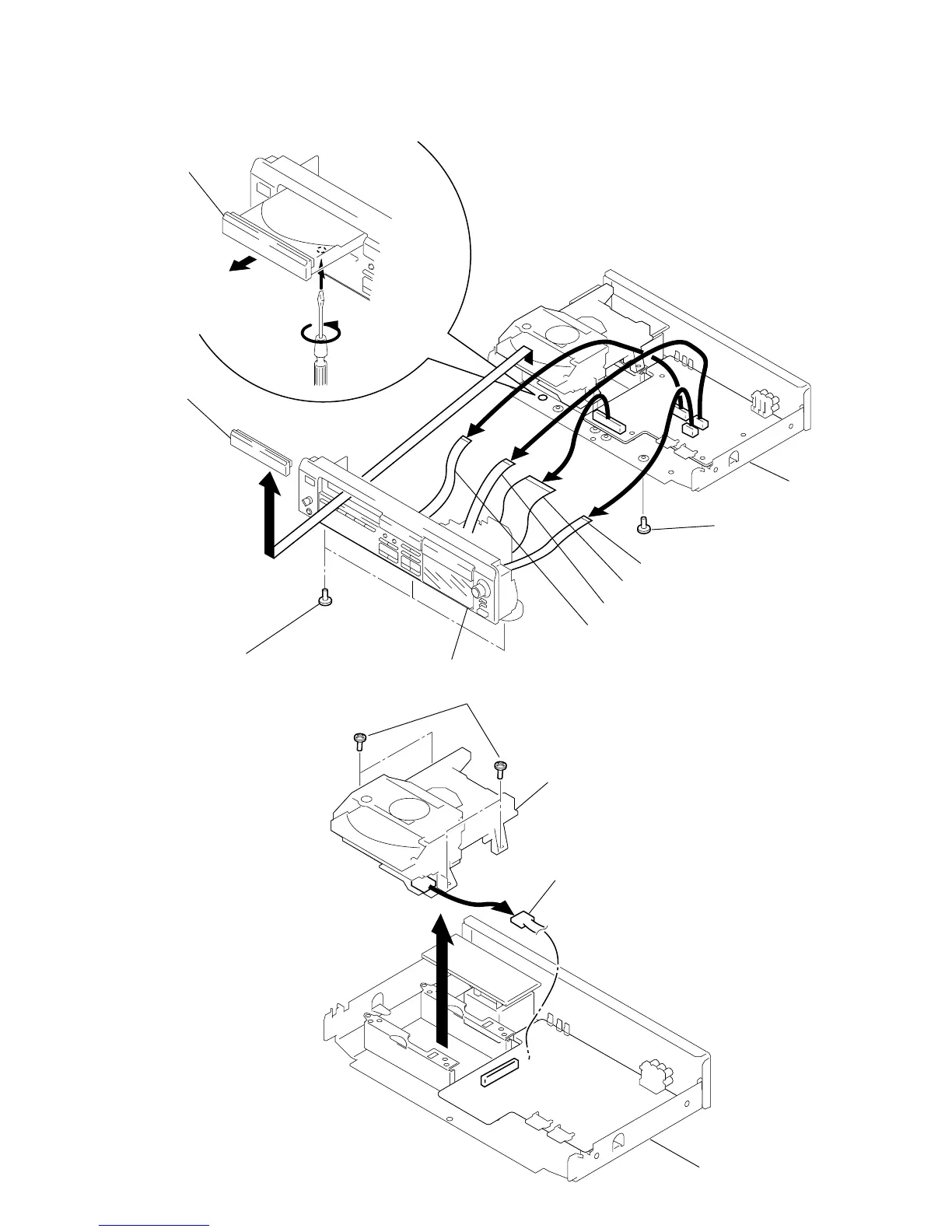

Note : Follow the disassembly procedure in the numerical order given.
1
2
Disc table
Loading panel
Chassis
Front panel assy
6
Wire (Flat type) (7 core) to Main board (CN806)
7
Wire (Flat type) (23 core) to Main board (CN805)
8
Wire (Flat type) (7 core) to Main board (CN801)
9
Wire (Flat type) (9 core) to Main board (CN804)
5
Screw (+BV TP 3 x 6)
5
Three Screws (+BV TP 3 x 6)
4
3
Chassi
To Next Page
