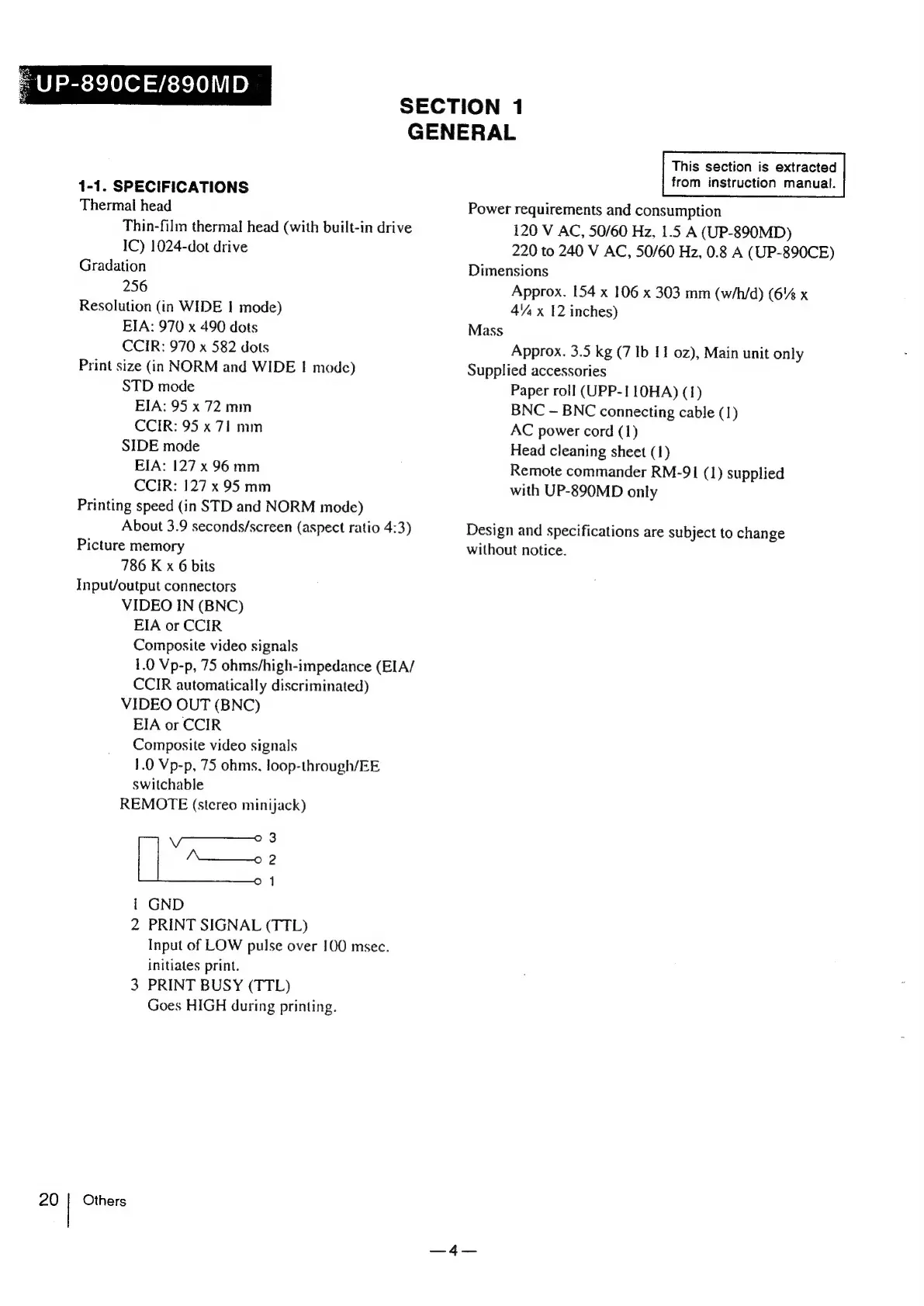

Sony UP-890MD - SECTION 1 GENERAL; 1-1. Specifications

F UP-890CE/890MD
SECTION 1
GENERAL
1-1. SPECIFICATIONS
Thermal head
Thin-film thermal head (with built-in drive
IC) 1024-dot drive
Gradation
256
Resolution (in WIDE | mode)
EIA: 970 x 490 dots
CCIR: 970 x 582 dots
Print size (in NORM and WIDE | mode)
STD mode
EIA: 95 x 72 mm
CCIR: 95 x 71 mm
SIDE mode
EIA: 127 x 96 mm
CCIR: 127 x 95 mm
Printing speed (in STD and NORM mode)
About 3.9 seconds/screen (aspect ratio 4:3)
Picture memory
786 K x 6 bits
InpuVoutput connectors
VIDEO IN (BNC)
EIA or CCIR
Composite video signals
1.0 Vp-p, 75 ohms/high-impedance (EIA/
CCIR automatically discriminated)
VIDEO OUT (BNC)
EIA or CCIR
Composite video signals
1.0 Vp-p, 75 ohms, loop-through/EE
switchable
REMOTE (stereo minijack)
“8
ii
1
| GND
2 PRINT SIGNAL (TTL)
Input of LOW pulse over 100 msec.
initiates print.
3 PRINT BUSY (TTL)
Goes HIGH during printing.
20 | Others
This section is extracted
from instruction manual.
Power requirements and consumption
120 V AC, 50/60 Hz, 1.5 A (UP-890MD)
220 to 240 V AC, 50/60 Hz, 0.8 A (UP-890CE)
Dimensions
Approx.
[54
x
106
x
303
mm
(w/h/d)
(6%
x
4% x 12 inches)
Mass
Approx.
3.5
kg
(7
Ib
11
oz),
Main
unit
only
Supplied accessories
Paper roll (UPP-1 LOHA) (1)
BNC - BNC connecting cable (1)
AC power cord (1)
Head cleaning sheet (1)
Remote
commander
RM-91
(1)
supplied
with UP-890MD only
Design
and
specifications
are
subject
to
change
without
notice.
