Sony UP-890MD - Page 52

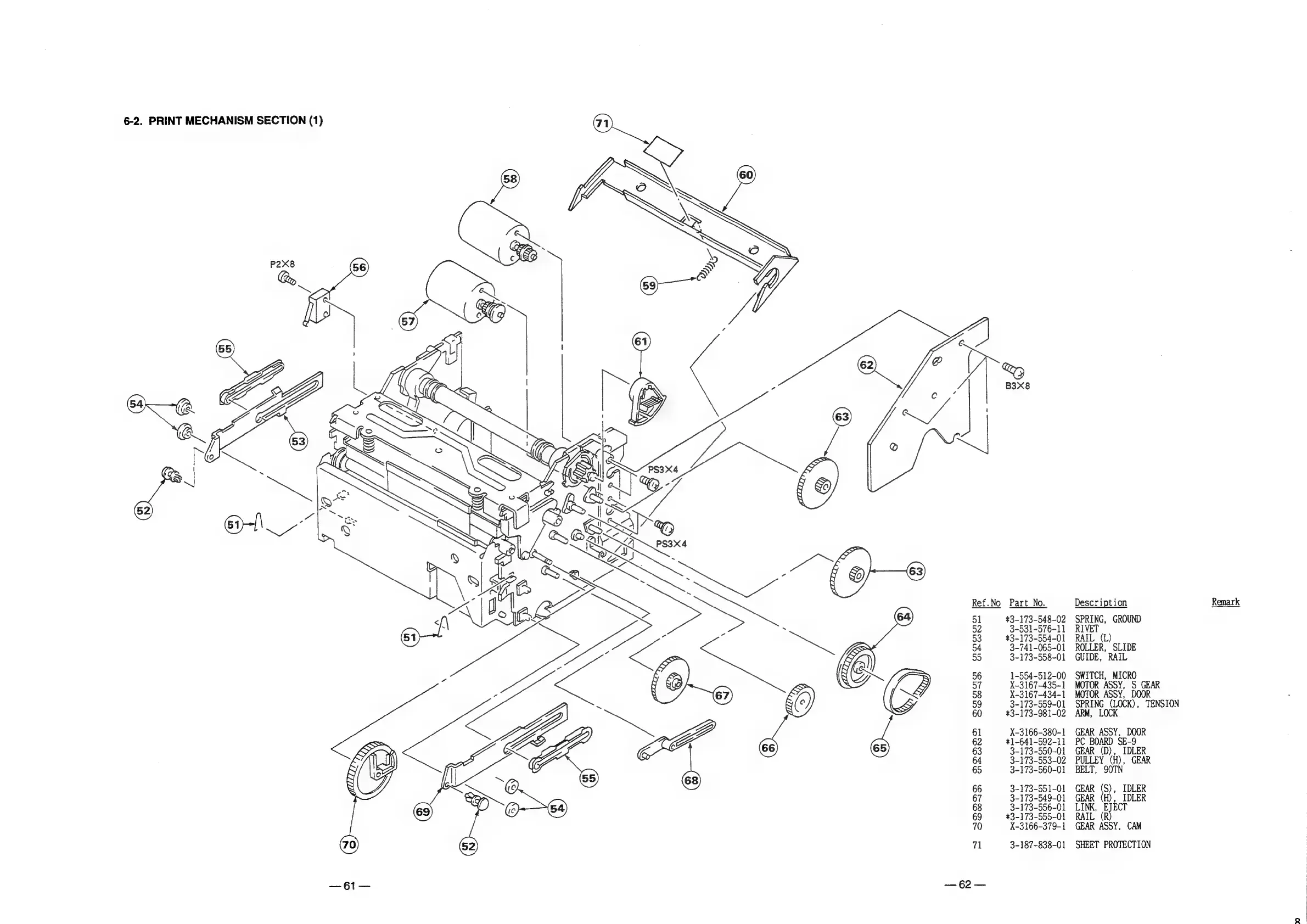

6-2. PRINT MECHANISM SECTION (1)
Ref.No Part No. Description Remark
51 #3-173-548-02 SPRING, GROUND
92 3-531-576-11 RIVET
93 *3-173-554-01 RAIL (L)
94 3-741-065-01 ROLLER, SLIDE
55 3-173-558-01 GUIDE, RAIL
56 1-554-512-00 SWITCH, MICRO
o7 X-3167-435-1 MOTOR ASSY, S GEAR
538 X-3167-434-1 MOTOR ASSY, DOOR
59 3-173-559-01 SPRING (LOCK), TENSION
60 #3-173-981-02 ARM, LOCK
61 X-3166-380-1 GEAR ASSY, DOOR
62 #1-641-592-11 PC BOARD SE-9
63 3-173-550-01 GEAR (D), IDLER
64 3-173-553-02 PULLEY (H), GEAR
65 3-173-560-01 BELT, 90TN
66 3-173-551-01 GEAR ‘B IDLER
67 3-173-549-01 GEAR (H), IDLER
68 3-173-556-01 LINK, EJECT
69 *3-173-555-01 RAIL (R
70 X-3166-379-1 GEAR ASSY, CAM
71 3-187-838-01 SHEET PROTECTION
— 61 — — 62 —
