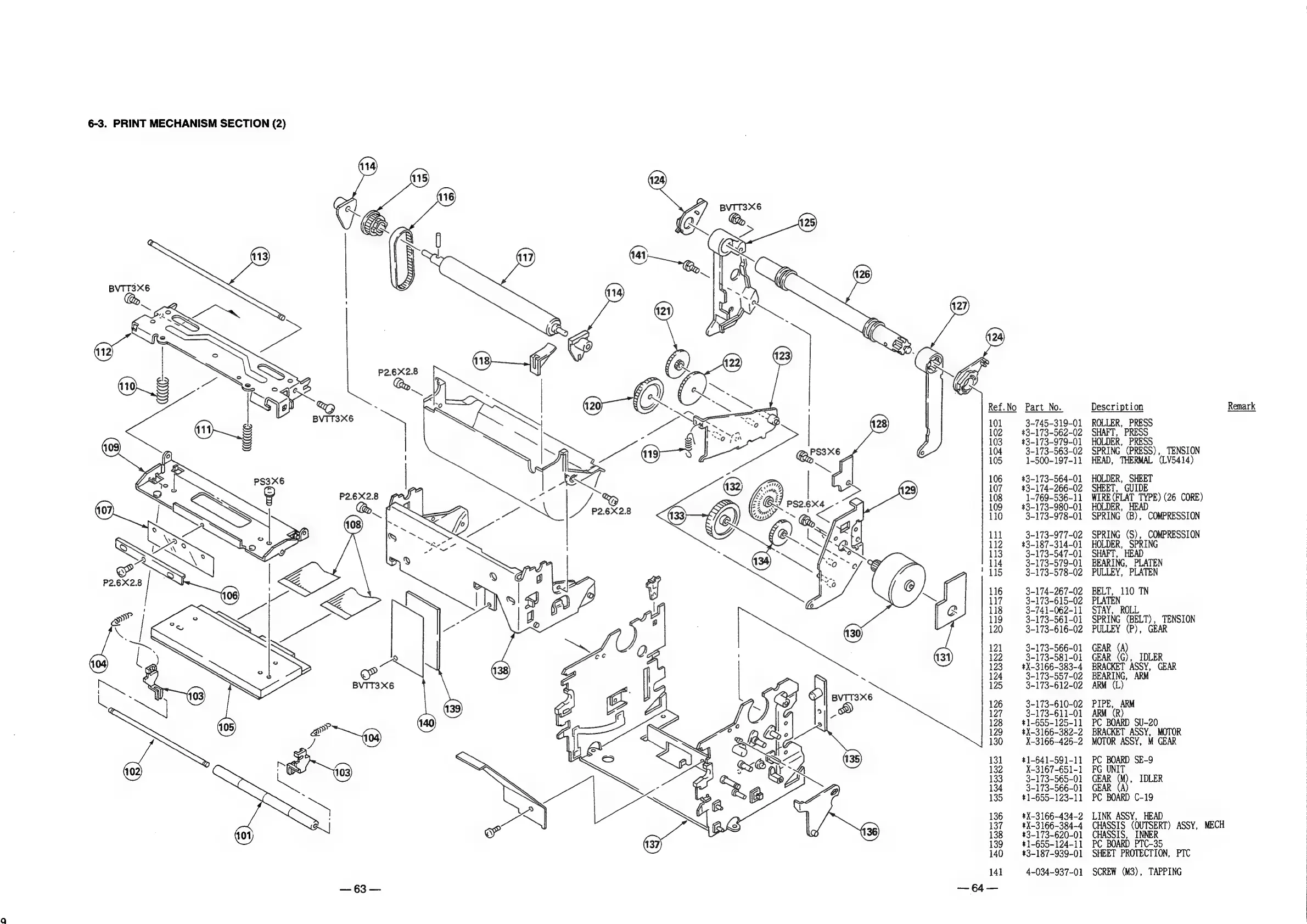

6-3. PRINT MECHANISM SECTION (2)
P2.6X2.8
—63—
Ref.No Part No.
3-745-319-01
#3-173-562-02
*3-173-979-01
3-173-563-02
1-500-197-11
*3-173-564-01
*3-174-266-02
1-769-536-11
#3-173-980-01
3-173-978-01
3-173-977-02
*3-187-314-01
3-173-547-01
3-173-579-01
3-173-578-02
3-174-267-02
Description Remark
ROLLER, PRESS
SHAFT, PRESS
HOLDER, PRESS
SPRING (PRESS), TENSION
HEAD, THERMAL (LV5414)
HOLDER, SHEET
SHEET, GUIDE
WIRE (FLAT TYPE) (26 CORE)
SPRING (B), COMPRESSION
SPRING (S), COMPRESSION
HOLDER, SPRING
SHAFT, HEAD
BEARING, PLATEN
PULLEY, PLATEN
BELT, 110 TN
3-173-615-02 PLATEN
3-741-062-11
3-173-561-01
3-173-616-02
3-173-566-01
3-173-581-01
*X-3166-383-4
3-173-557-02
3~173-612-02
3-173-610-02
3-173-611-01
#1-655-125-11
*X-3166-382-2
X-3166-426-2
#1-641-591-11
X-3167-651-1
3-173-565-01
3-173-566-01
#1-655-123-11
*X-3166-434-2
*X-3166-384-4
*3-173-620-01
#1-655-124-11
#3-187-939-01
4-034-937-01
STAY, ROLL
SPRING (BELT), TENSION
PULLEY (P), GEAR
GEAR tA}
GEAR (G), IDLER
BRACKET ASSY, GEAR
BEARING, ARM
ARM (L)
PIPE, ARM
ARM (R)
PC BOARD SU-20
BRACKET ASSY, MOTOR
MOTOR ASSY, M GEAR
PC BOARD SE-9
FG UNIT
GEAR Ne IDLER
GEAR (A
PC BOARD C-19
LINK ASSY, HEAD
CHASSIS (QUTSERT) ASSY, MECH
CHASSIS, INNER
PC BOARD PTC-35
SHEET PROTECTION, PTC
SCREW (M3), TAPPING
