Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications.

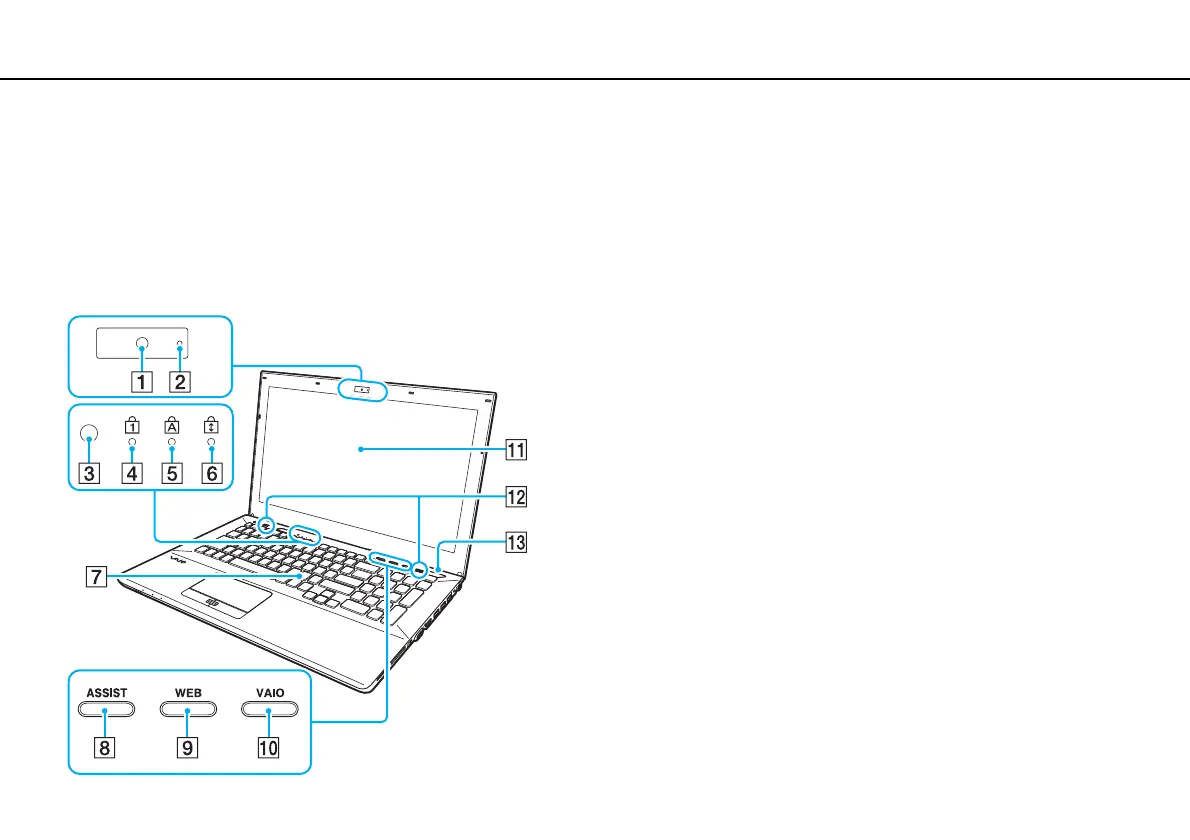

Front
A Built-in camera (page 46)
B Built-in camera indicator (page 18)
C Ambient light sensor (page 41), (page 191), (page 192)
Measures ambient light intensity for automatically adjusting the
LCD brightness to an optimum level.
D Num lock indicator (page 18)
E Caps lock indicator (page 18)
F Scroll lock indicator (page 18)
G Keyboard (page 39)
H ASSIST button (page 43)
I WEB button (page 43)
J VAIO button (page 43)
K LCD screen (page 149)
L Built-in speakers (stereo)
M Power button
Illuminates depending on the computer's operating mode (page
32).
