1
VPL-CX61/CX63/CX75/CX76/CX80/CX85/CX86/CX100/CX120/CX125/CX150/CX155/CW125/FE40/FE40L/FH300L/FX40/FX40L/FX51/FX52/FX52L/FW300L/PX35/PX40/PX41
EVEN Parity.....Total number of “1”s from D0 to D7 is an even number.

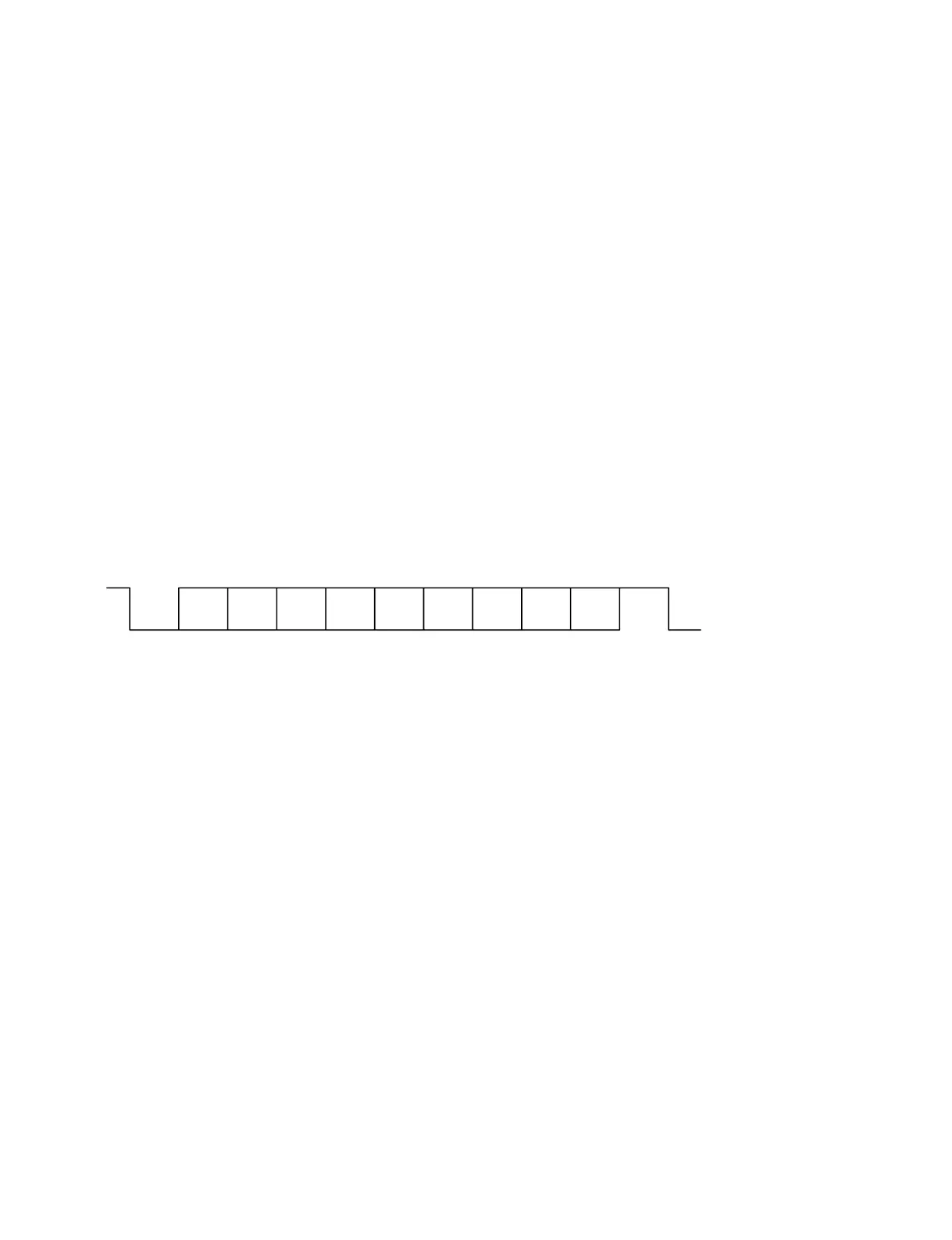

D4 D5 D6 D7
(MSB)(LSB) (EVEN) BIT
PARITY STOP
BIT
START D3D2D1D0
1. Introduction
This protocol manual describes the basic configuration and basic operations of various commands used
for projector. Projector can be controlled using the commands provided in “Appendix”. Using an external
CONTROLLER , etc., inputs can be switched and the power can also be turned on and off. In the follow-
ing paragraphs, “CONTROLLER” means an external device such as a PC which controls projector using
these commands.
2. RS-232C (VPL-CX75 and VPL-CX76 are excluded.)
2-1. Communication Specifications
<RS-232C Communication Signal>
. Full duplex communication channels (Flow control not performed.)
. Start-stop synchronism system
. Baud rate: 38.4 kbps (bits per second)
. The bit configuration is defined as follows.
1 START Bit + 8 DATA Bits + 1 PARITY Bit + 1 STOP Bit
