Sony VPL-VW570ES User Manual

64

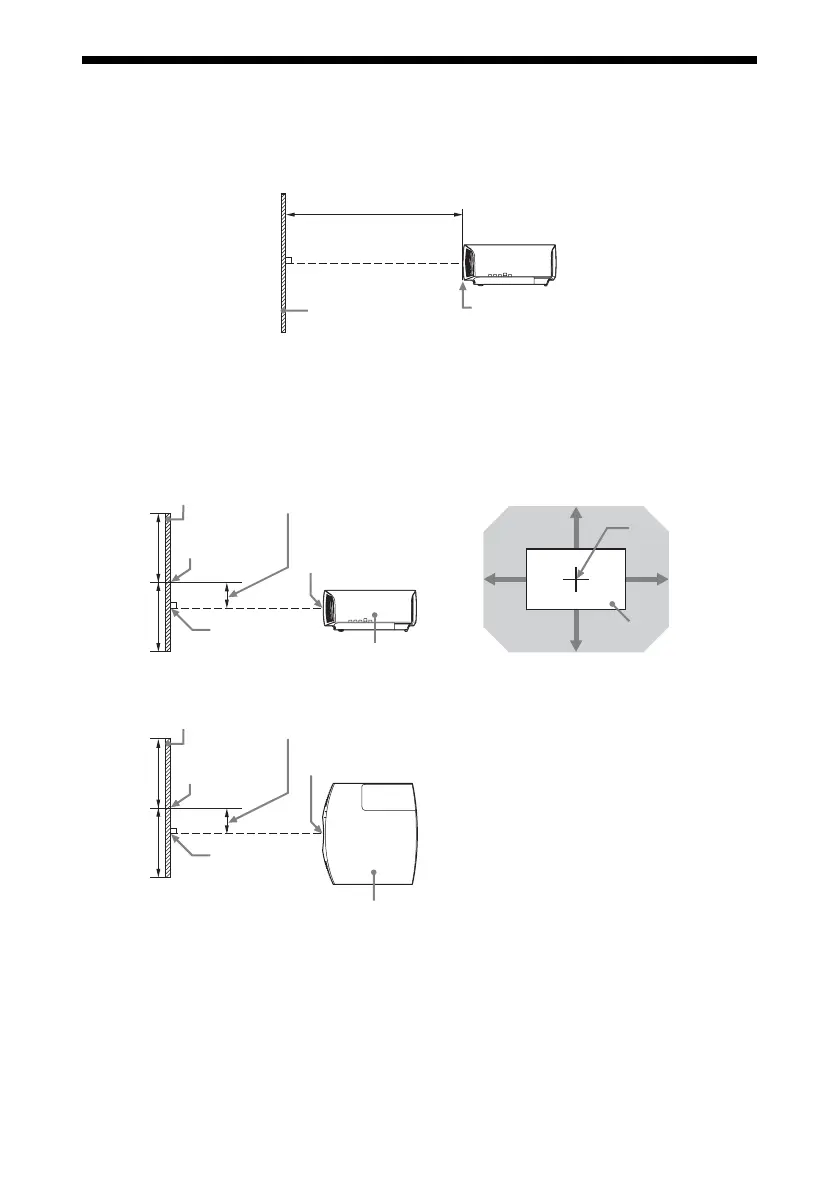

Projection Distance and Lens Shift Range
The projection distance refers to the distance between the front of the lens and the projected
surface.
The lens shift range represents the distance in percent (%) by which the lens can be shifted from
the center of the projected image. The lens shift range is regarded as 0% when the point A in
the illustration (point where a line drawn from the center of the lens and the projected image
cross at right angles) is aligned with the center of the projected image and full width or full
height of the projected image is regarded as 100%.
VS +: Vertical lens shift range (up) [%]
VS –: Vertical lens shift range (down) [%]
HS +: Horizontal lens shift range (right) [%]
HS –: Horizontal lens shift range (left) [%]
Projection distance L
Projected image
Front of the lens
Lens shift range
Projected image
Center of the lens
50%
50%
Center of the
projected image
Side of the unit
A
Center of the lens
Projected image
VS +
VS –
HS – HS +
Shaded region: Lens shift range
Lens shift range
Projected image
Center of the lens
50%
50%
Center of the
projected image
Top of the unit
A

Sony VPL-VW570ES Specifications

General

Resolution	4K (4096 x 2160)
Brightness	1, 800 lumens
Contrast Ratio	350, 000:1 (Dynamic)
Display Technology	SXRD
Throw Ratio	1.38:1 to 2.83:1
Light Source	Lamp
Zoom	2.06x
3D Support	Yes
Display Device	0.74-inch SXRD panel
Lens Shift	Horizontal: +/- 31%
Lamp Life	6, 000 hours (in low mode)
Screen Size	60" to 300"
Inputs	RS-232C, LAN, IR IN, USB
Outputs	12V Trigger
Control	RS-232C, IR
Weight	14 kg
Input Lag	27ms (4K/60p)
HDMI Ports	2
Display System	3-SXRD Panel System
