Sony VPL-VW760ES Service Manual

1-27 (E)
VPL-VW760ES

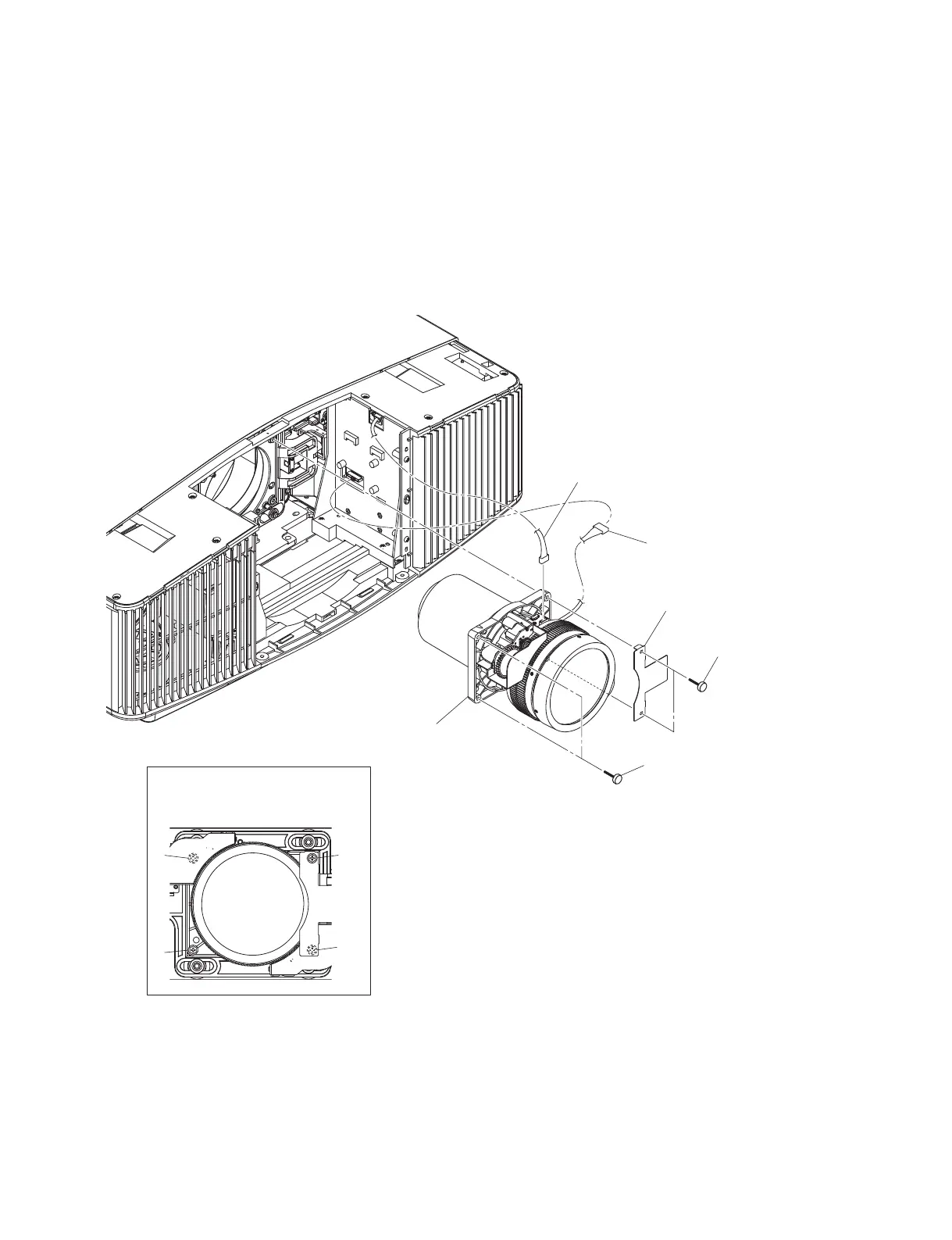

1-5-21. Lens Assembly
w
Do not remove the lens when this unit is lighting. Otherwise, it may cause damage to eyes or skin.
Required tool: Torque wrench (Subtense: 5.5 mm)
. Remove the lens cover assembly. (Refer to Section 1-5-1.)
4 Two shift fix shafts
3 Two shift fix shafts
5 Lens shade sheet
1 Harness
2 Harness
6 Lens assembly
Notes on installation
After temporarily tightening the shift
fixing shafts, fully tighten them in the
order from a to d.
a
c
d
b

Sony VPL-VW760ES Specifications

General

Matrix size	0.74 \
Native aspect ratio	-
Projection distance	- m
Vertical scan range	48 - 92 Hz
Horizontal scan range	19 - 72 kHz
Projection technology	SXRD
Screen size compatibility	60 - 300 \
Projector native resolution	DCI 4K (4096x2160)
Focus	Auto
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	-80 - 85 %
Horizontal lens shift range	-31 - 31 %
Supported video modes	480p, 576p, 720p, 1080p, 2160p
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Noise level	24 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, KOR, NOR, POL, POR, RUS, SWE, THA, TUR
DVI port	No
HDMI connector type	Full-size
Serial interface type	RS-232C
USB 2.0 ports quantity	1
VGA (D-Sub) ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	430 W
Power consumption (network standby)	1 W
Light source type	Laser
Service life of light source	- h
Placement	Desktop
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema

Weight and Dimensions

Depth	496 mm
Width	560 mm
Height	223 mm
Weight	20000 g
