Sony VPL-VW760ES Service Manual

4-8
VPL-VW760ES
PSW
3 ) 8
PSW
3 ) 8
PSW
3 ) 8
PSW
3 ) 8
QE board -B side-
PSW
3 ) 8
PSW
3 ) 8
To LL board
To NF board
To HB board
To DC Fan
To DC Fan
To HA board
To BT module
To V board
To M board
To IRIS
To CA board
To CB board
To CB board
To LD power
To
DC Fan
To
CL board
To
G board
416
401
418
414
417
410
407
409
413 408 411 406
412
404
403
402
405
415
No. Part No. SP Description
401 A-2203-380-A s QE COMPL (SVC) (For VPL-VW760ES)
A-2203-381-A s QE COMPL (SVC) (For VPL-VW885ES)
A-2203-382-A s QE COMPL (SVC) (For VPL-VW745)
A-2203-383-A s QE COMPL (SVC) (For VPL-VW768)
402 1-912-455-11 s COAXIAL CABLE ASSEMBLY (VBO)
403 1-912-456-11 s COAXIAL CABLE ASSEMBLY (VBO)
404 1-912-457-11 s COAXIAL CABLE ASSEMBLY (VBO)
405 1-971-881-11 s CONNECTOR ASSY, 9P
406 1-971-882-11 s CONNECTOR ASSY, 5P
407 1-971-883-11 s CONNECTOR ASSY, 24P
408 1-971-885-11 s CONNECTOR ASSY, FAN 8P
409 1-971-886-11 s CONNECTOR ASSY, 50P
410 1-971-887-11 s CONNECTOR ASSY, IRIS 8P

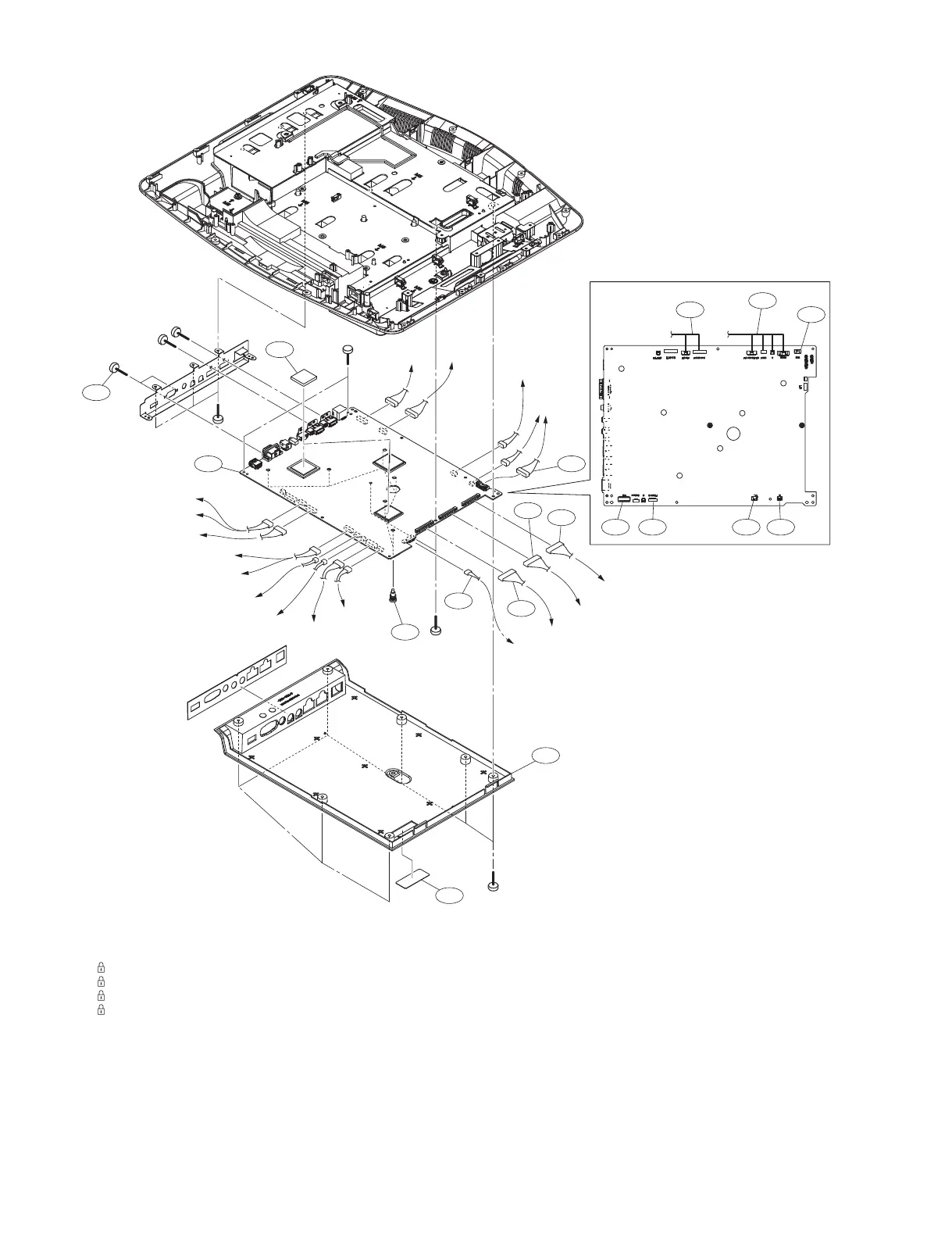

Bottom Cover Block-1
No. Part No. SP Description
411 1-971-891-11 s CONNECTOR ASSY, CL 7P
412 1-971-892-11 s CONNECTOR ASSY, LD 6P
413 1-971-895-11 s CONNECTOR ASSY, LL 30P
414 2-580-626-01 s SCREW, SP 4-4O UNC
415 4-409-611-01 s SHEET, Q
(For VPL-VW768)
4-409-611-21 s SHEET, Q
(For VPL-VW760ES/VW885ES/VW745)
416 4-444-146-01 s SCREW, DAMPER M3
417 ! 4-723-481-01 s COVER, BOTTOM
418 4-732-247-01 s SHEET (Q), RADIATION
7-682-948-01 s SCREW +PSW 3X8

Sony VPL-VW760ES Specifications

General

Matrix size	0.74 \
Native aspect ratio	-
Projection distance	- m
Vertical scan range	48 - 92 Hz
Horizontal scan range	19 - 72 kHz
Projection technology	SXRD
Screen size compatibility	60 - 300 \
Projector native resolution	DCI 4K (4096x2160)
Focus	Auto
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	-80 - 85 %
Horizontal lens shift range	-31 - 31 %
Supported video modes	480p, 576p, 720p, 1080p, 2160p
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Noise level	24 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, KOR, NOR, POL, POR, RUS, SWE, THA, TUR
DVI port	No
HDMI connector type	Full-size
Serial interface type	RS-232C
USB 2.0 ports quantity	1
VGA (D-Sub) ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	430 W
Power consumption (network standby)	1 W
Light source type	Laser
Service life of light source	- h
Placement	Desktop
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema

Weight and Dimensions

Depth	496 mm
Width	560 mm
Height	223 mm
Weight	20000 g
