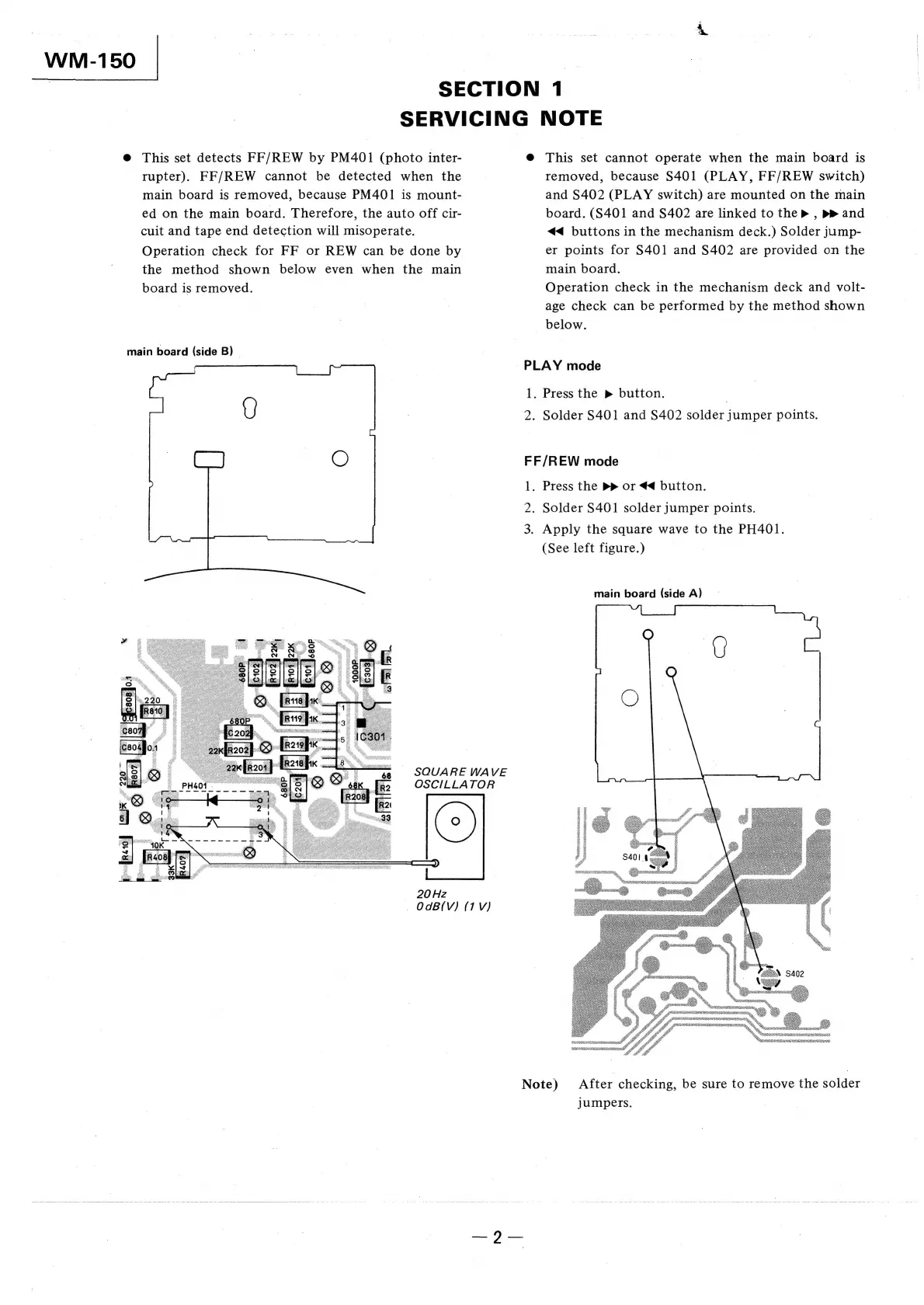

SECTION 1
SERVICING NOTE
This set detects FF/REW by PM401 (photo inter-
rupter). FF/REW cannot be detected when the
main board is removed, because PM401 is mount-
ed on the main board. Therefore, the auto off cir-
cuit and tape end detection will misoperate.
Operation check for FF or REW can be done by
the method shown below even when the main
board is removed.
main board (side B) |
U
20 Hz
OdB(V) (1 V)
SQUARE WAVE
OSCILLATOR
@ This set cannot operate when the main board is
removed, because S401 (PLAY, FF/REW switch)
and S402 (PLAY switch) are mounted on the main
board. (S401 and S402 are linked to the > , >> and
44 buttons in the mechanism deck.) Solder jump-
er points for S401 and S402 are provided on the
main board.
Operation check in the mechanism deck and volt-
age check can be performed by the method shown
below.
PLAY mode
1. Press the » button. |
2. Solder S401 and $402 solder jumper points.
FF/REW mode
1. Press the >> or #4 button.
2. Solder S401 solder jumper points.
3. Apply the square wave to the PH401.
(See left figure.)
main board (side A)
Note) After checking, be sure to remove the solder
jumpers.
