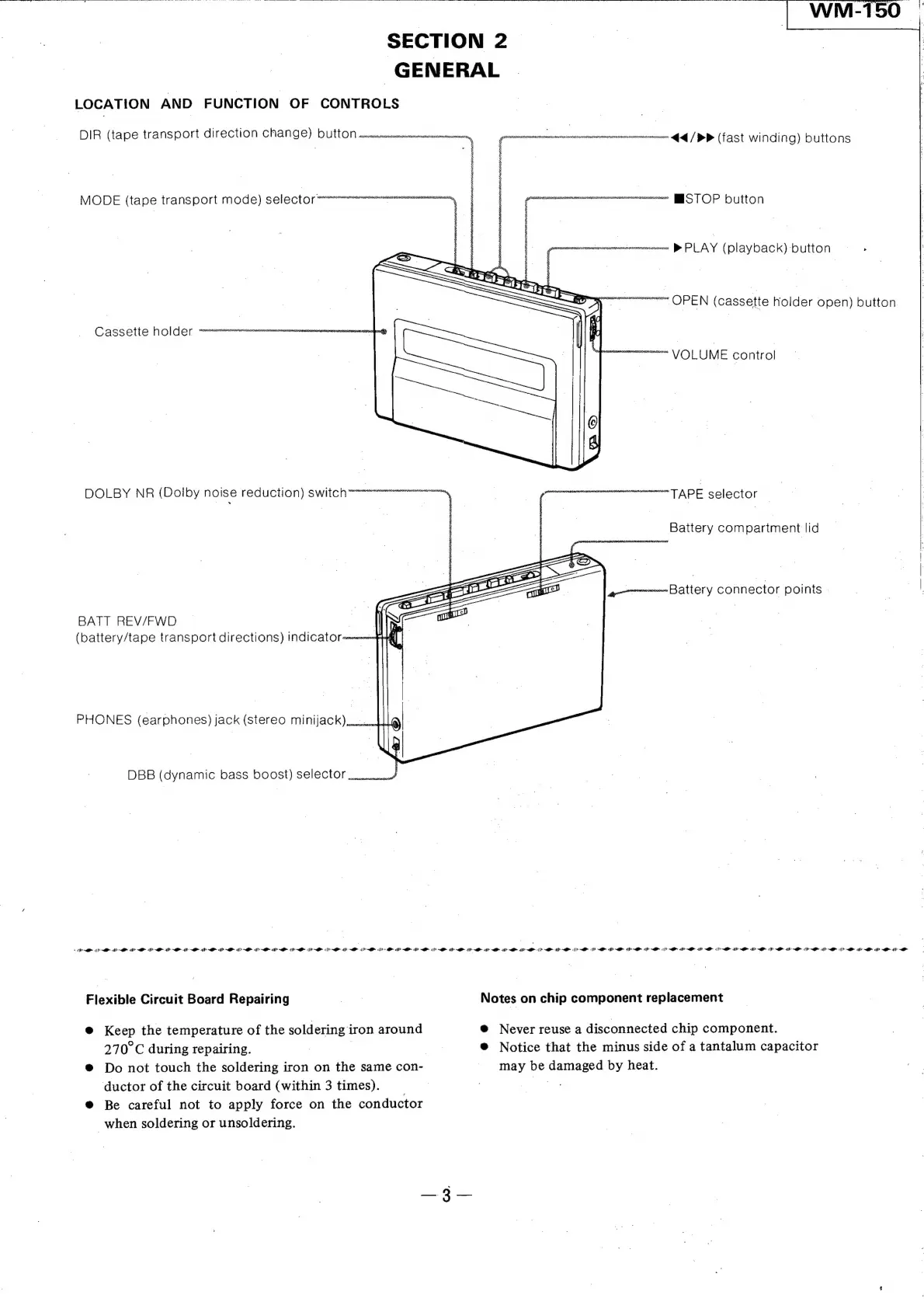

SECTION 2
GENERAL
LOCATION AND FUNCTION OF CONTROLS
DIR
(tape
transport
direction
CHANGE)
DUTTON
amu
MODE
(tape
transport
mode)
selector-~
DOLBY NR (Dolby noise reduction) swith
BATT REV/FWD | Why
(battery/tape transport directions) indiCator————Fg ,
PHONES (earphones) jack (stereo minijack)
DBB
(dynamic
bass
boost)
selector
ae.
mom A / PP (fast winding) buttons
j
-—EESTOP button
smn W PLAY (playback) button
sia OPEN (cassette holder open) button.
VOLUME control
pea TAPE selector
Battery compartment lid
gevommmnewoo Battery connector points
SATE A AD AD R80 RT AD ALD RL RE RN ALL RIE TTT RN RA RD AN AR TR ART RT AT RAN RT RATT Mt TR AN RR RT RN A RAR AF IAL A A NR RT a a
Flexible Circuit Board Repairing
@ Keep the temperature of the soldering iron around
270°C during repairing. |
® Do not touch the soldering iron on the same con-
ductor of the circuit board (within 3 times).
@ Be careful not to apply force on the conductor
when soldering or unsoldering.
Notes on chip component replacement
@ Never reuse a disconnected chip component.
® Notice that the minus side of a tantalum capacitor
may be damaged by heat.
