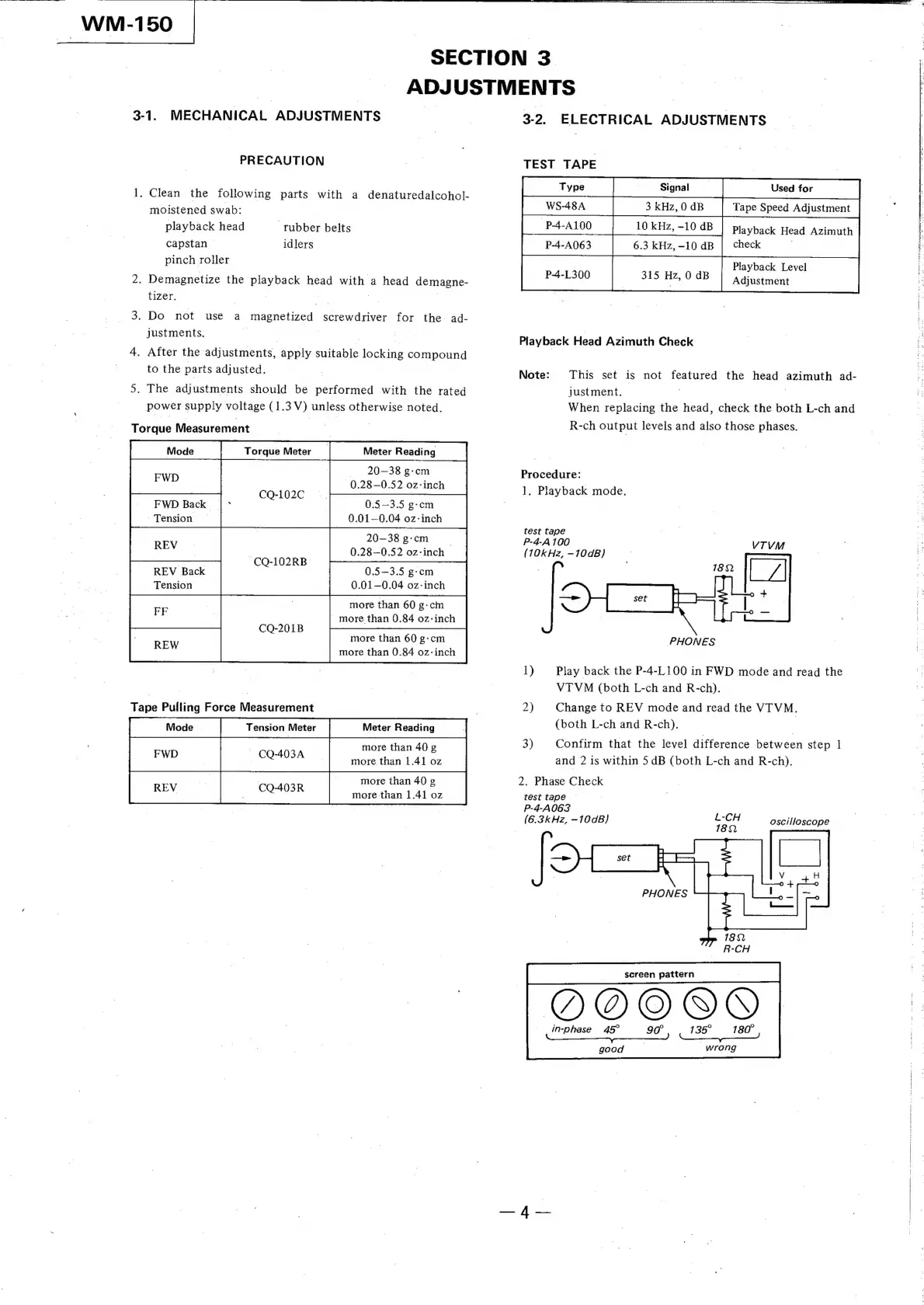

SECTION 3
ADJUSTMENTS
3-1. MECHANICAL ADJUSTMENTS
PRECAUTION
1.
Clean
the
following
parts
with
a
denaturedalcohol-
moistened
swab:
playback
head
rubber
belts
capstan
©
idlers
pinch
roller
2. Demagnetize the playback head with a head demagne-
tizer. : | |
3. Do not use a magnetized screwdriver for the ad-
justments. 7 :
4. After the adjustments, apply suitable locking compound
to the parts adjusted,
5. The adjustments should be performed with the rated
power supply voltage (1.3 V) unless otherwise noted.
Torque Measurement
[Mode __[ Torque Meter [Meter Reading
| 7 20-38 g-cm
FWD Back | - | | 0.5—3.5 g-cm
Tension — — 0.01-0.04 02-inch
| 20-38 g-cm
eee 0.28-0.52 oz-inch
CQ-102RB>
REV Back 0.5—3.5 g-cm
Tension 0.01—0.04 oz-inch
EF more than 60 g-cin
: ~ more than 0.84 oz-inch
CQ-201B —
oT
more
than
60
g-cm
more than 0.84 oz-inch
CQ-102C
Tape Pulling Force Measurement
: more than 40 g
—CQ403A more than 1.41 oz
Pa | | more than 40 g
: CQ403R more than 1.41 oz
3-2, ELECTRICAL ADJUSTMENTS |
TEST TAPE
ee
WS-48A 3 kHz,0 dB Tape Speed Adjustment
P-4-A100 10 kHz, ~10 dB Playback Head Azimuth :
P-4-A063 6.3 kHz,-10 dB | check
,
Playback
Level
P-4-L300
7
315
Hz,
0
dB
Adjustment
Playback Head Azimuth Check
Note: This set is not featured the head azimuth ad-
justment.
|
When replacing the head, check the both L-ch and
R-ch output levels and also those phases.
Procedure:
1. Playback mode.
test tape
P-4-A100
(10kHz, -10dB)
PHONES
1) Play back the P-4-L100 in FWD mode and read the
VTVM (both L-ch and R-ch).
2) Change to REV mode and read the VTVM.
(both L-ch and R-ch).
3) Confirm that the level difference between step 1
and 2 is within 5 dB (both L-ch and R-ch).
2. Phase Check
test tape —
P-4-A063
(6.3kHz, -10dB) L-CH
18
oscilloscope
. screen pattern
DOOSO
in-phase 135° = 180”
ee ae
good wrong
[—teeaor
