SECTION 2
DISASSEMBLY

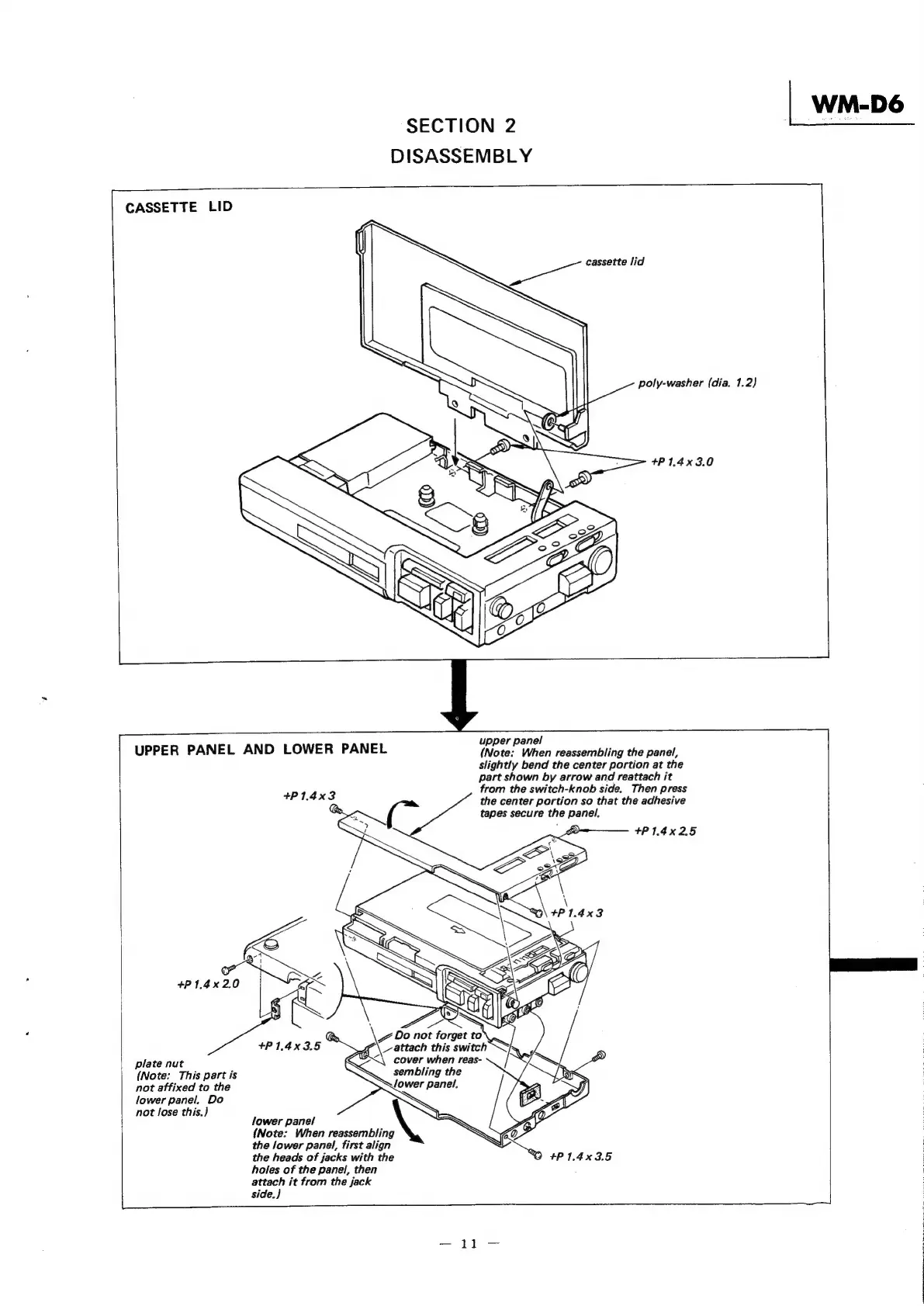

CASSETTE LID
cassette lid
poly-washer (dia, 1.2)
+P 1.4x 3.0
upper panel
UPPER PANEL AND LOWER PANEL (Note: When reassembling the panel,
slightly bend the center portion at the
part shown by arrow and reattach it
4#P1.4x3 from the switch-knob side, Then press
‘ the center portion so that the adhesive
tapes secure the panel,
> +P 1.4x 2.5
(F) +O
(@ CE
—
AAS
+P 1.4xK20 SaaS Fog
es
Ss ;
i ae 3G
@p Z Do not forget to
+P 1.4x3.5 Ke attach this switch .
es <\ cover when reas-
sembling the ii
lower panel, Zi : Sl)
[s ay
lower panel AQ
tx.
SS
(Note: When nine, S SRG £0,
the lower panel, first align oe.
the heads of jacks with the tP1.4x%3.5
holes of the panel, then
attach it from the jack
side.}
ss 5)
plate
nut
~
$
(Note: This part is
nat affixed to the
lower panel, Do
not lose this.)
