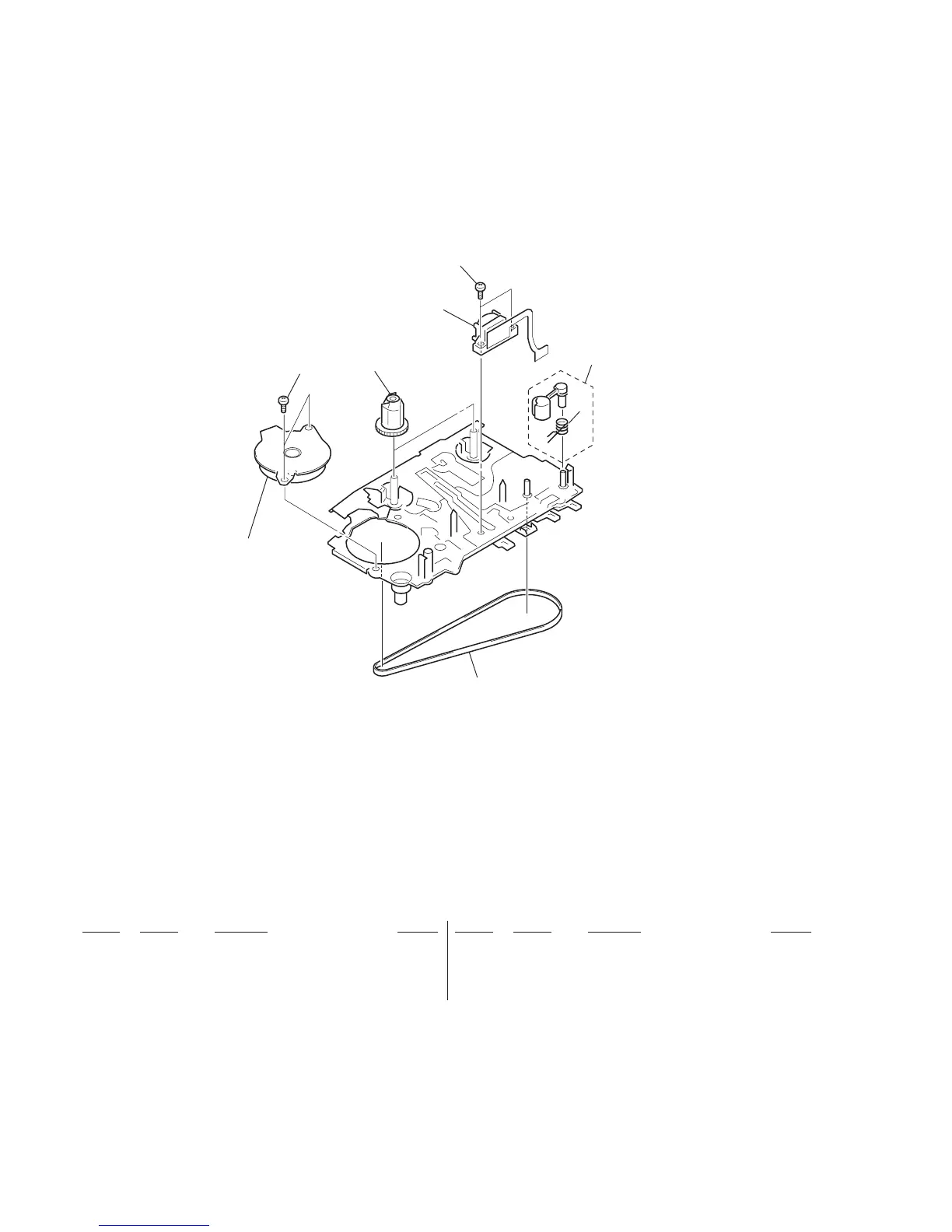

6-3. MECHANISM SECTION-1
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
104
103
105
106
102
101
M901
HP901
101 3-013-560-11 BELT
102 3-703-816-07 SCREW (M1.4), SPECIAL HEAD
103 3-019-776-01 GEER (REEL-S)
104 3-703-816-73 SCREW (M1.4), SPECIAL HEAD
105 X-3369-749-1 PINCH LEVER (N) ASSY
106 3-920-996-01 SPRING (PINCH N)
M901 1-763-073-11 MOTOR (REEL/CAPSTAN)(WITH PULLY)
HP901 1-500-640-11 HEAD, MAGNETIC (PLAYBACK)
