— 5 —

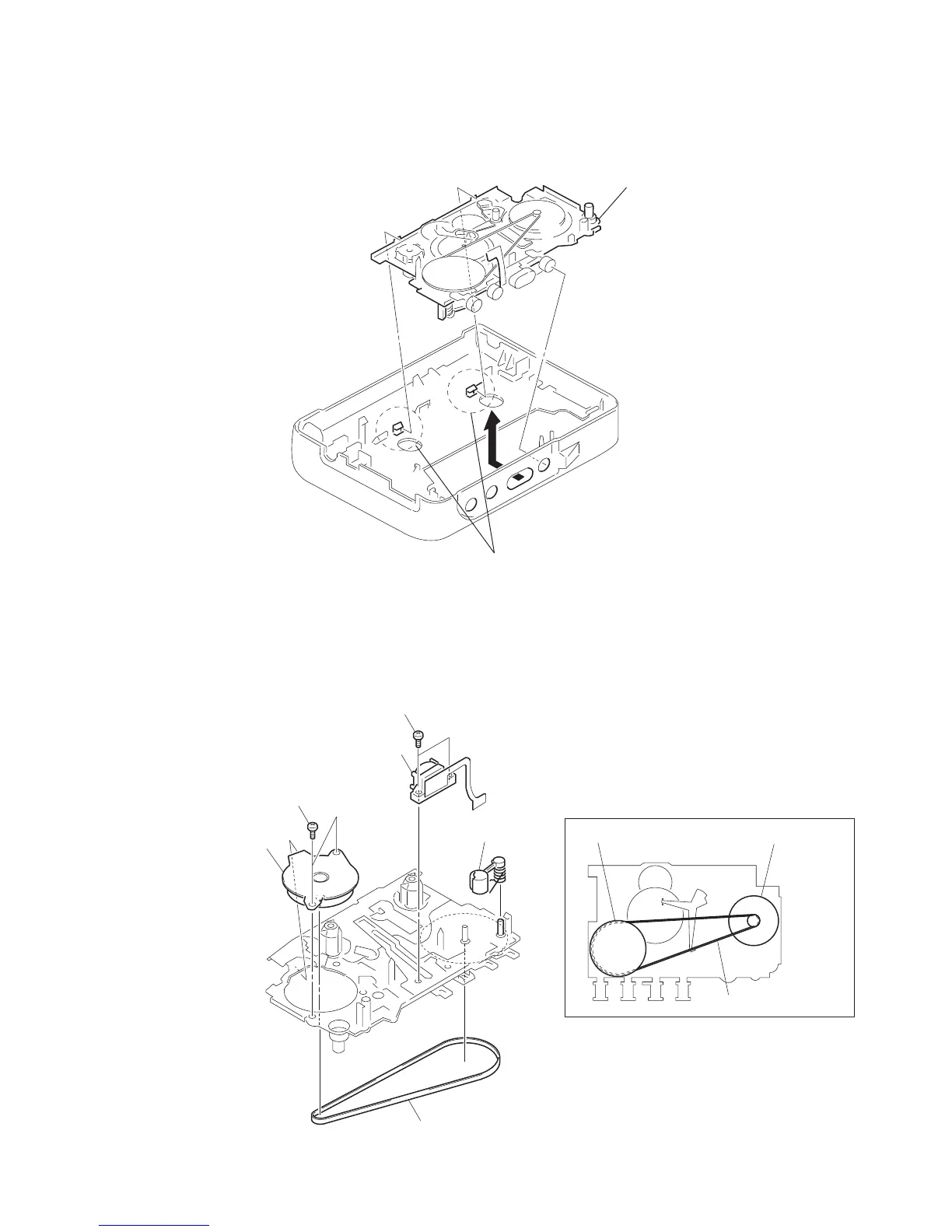

2-4. MECHANISM DECK
2-5. BELT, MOTOR, PINCH LEVER (N) ASSY, “HEAD, MAGNETIC”
1
Remove the mechanism dec
k
in the direction of the arrow.
(There two claws.)
Two claws
2
Two screws (M1.4)
5
Two screws (M1.4)
3
Motor (reel/capstan)
6
Head,magnetic (playback)
4
Pnch lever (N) assy
1
Belt
Motor (reel/capstan)
Wheel assy (sp), capstan
Belt threading
Belt
