Sony WM-EX190 Service Manual

— 3 —
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

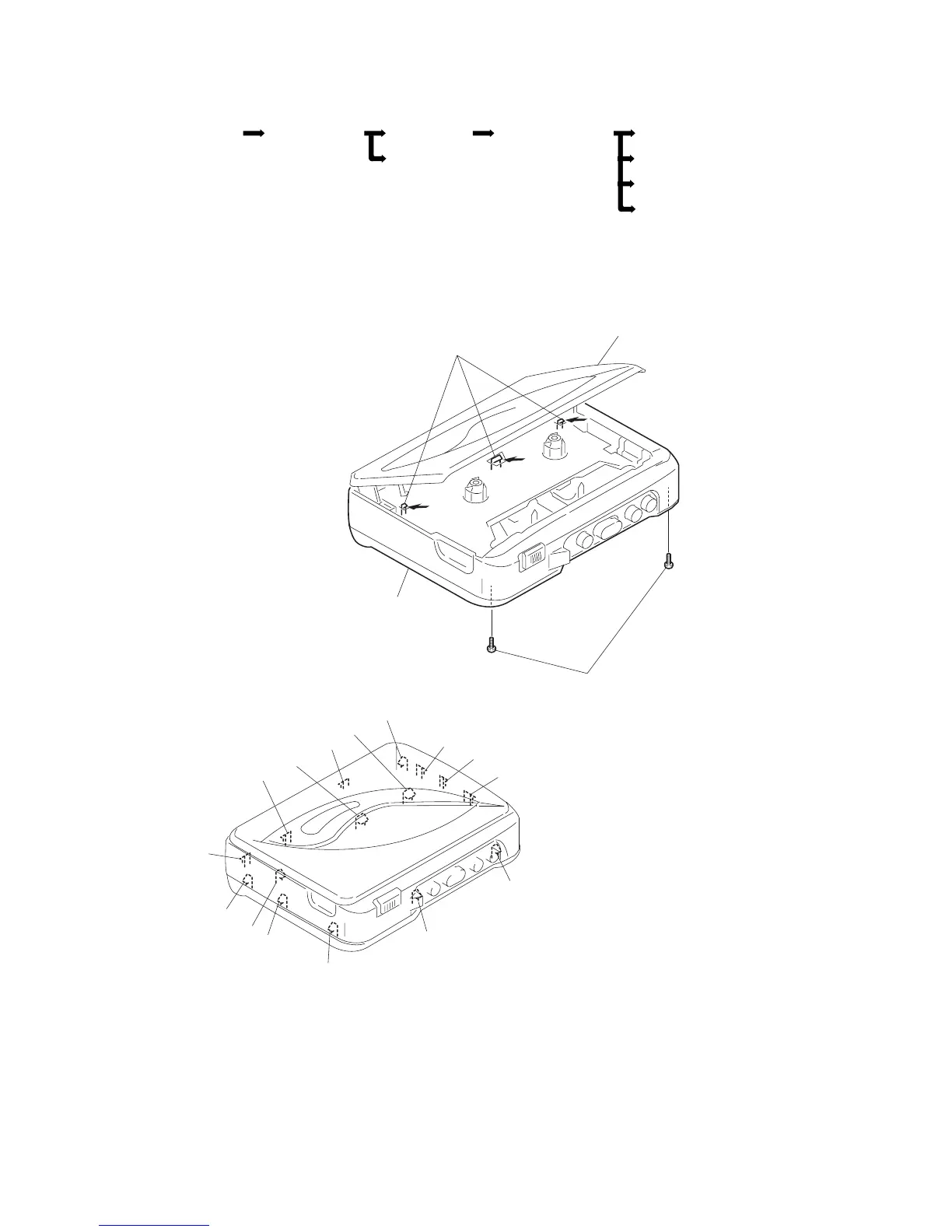

2-1. CABINET (REAR)
• This set can be disassembled in the order shown below.
Cabinet (rear) Set Main board
Lid assy, cassette
Mechanism deck Belt
Motor
Pinch lever (N) assy
Head, magnetic
A
1 Two screws (B1.7 × 9
)
2 Open the lid, cassette
3 Cabinet (rear)
(There 16 claws of
A to P are caught.)
B
K
M
L
C
N
O
P
D
E
F
G
H
I
J
