– 4 –

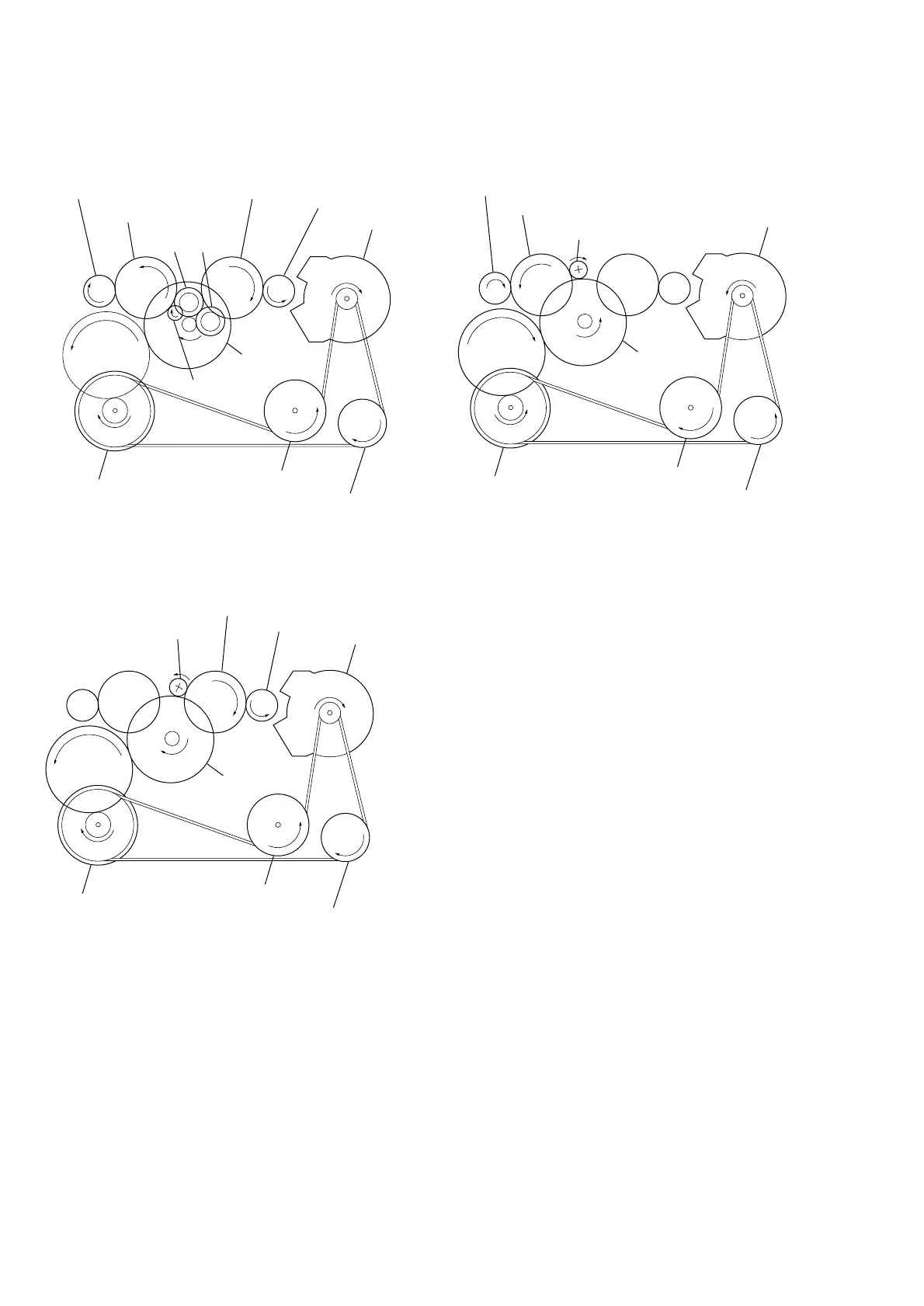

1-2. ROTATIONAL SYSTEM
1. Rotational System of PLAY Mode 2. Rotational System of FF Mode
3. Rotational System of REW Mode
motor pulle
y
gear (FR)
gear (reel) (S side)
reverse pulley
insert flywheel (R)
insert flywheel (N)
idler gear (A) (S side)
gear (Y)
clutch
assy (F)
motor pulle
y
reverse pulley
insert flywheel (R)
insert flywheel (N)
gear (reel) (T side)
gear (reel) (S side)
idler gear (A) (T side)
idler gear (A) (S side)
idler gear (B)
gear (Y)
gear (NR)
FWD REV
clutch
assy (F)
motor pulle
y
gear (FR)
reverse pulley
insert flywheel (R)
insert flywheel (N)
gear (reel) (T side)
idler gear (A) (T side)
gear (Y)
clutch
assy (F)
