WM-FX481
15
SECTION 5
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
• Abbreviation
CH :Chinese
9E :No Indication of country of origin
5E, 6E :Indication of country of origin
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

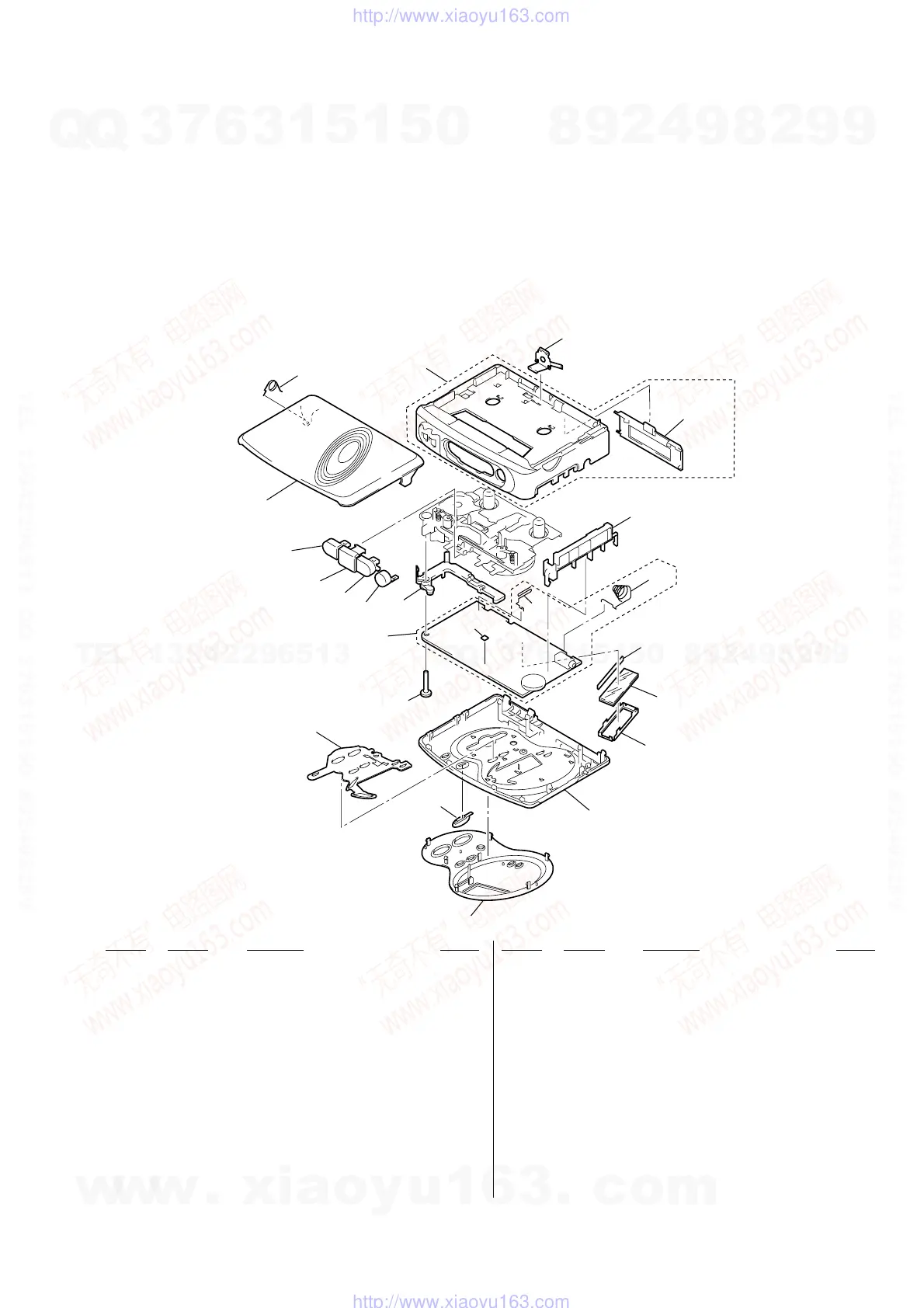

5-1. CABINET SECTION
L3
LCD701
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
21
18
19
20
22
1 3-226-667-11 CABINET (FRONT)
2 3-226-861-01 WINDOW (2) (LCD)
3 3-044-869-01 KNOB (HOLD)
4 3-227-268-01 BUTTON (PRESET)
5 3-015-285-01 SCREW (M1.4),TOOTHED LOCK (WH)
* 6 A-3021-379-A MAIN BOARD,COMPLETE (9E,CH)
* 6 A-3021-418-A MAIN BOARD,COMPLETE (5E,6E)
7 3-044-865-01 STOPPER
8 3-007-006-21 BUTTON (STOP)
9 3-007-004-21 BUTTON (FF)
10 3-030-054-01 BUTTON (PLAY)
11 3-007-005-21 BUTTON (REW)
12 3-228-508-31 CASSETTE, HOLDER
13 3-007-012-01 SPRING (TORSION)
14 X-3380-184-1 CABINET (CENTER) SUB ASSY(5E,6E,CH)
14 X-3380-185-1 CABINET (CENTER) SUB ASSY (9E)
15 3-007-011-01 SPRING (CASSETTE)
17 3-030-055-01 TERMINAL (+), BATTERY
18 3-007-010-01 TERMINAL (-), BATTERY
19 3-226-672-01 RUBBER, CONDUCTIVE
20 3-226-671-01 HOLDER (LCD)
21 3-030-062-21 LID, BATTERY
22 3-231-437-01 RUBBER, HARD
L3 1-754-124-21 ANTENNA, FERRITE-ROD (AM TRCKING)
LCD701 1-804-256-21 LIQUID CRYSTAL DISPLAY
