WM-FX481
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HP601
M601
not
supplied
101
103
103
104
105
105
106
107
106
109
110
125
112
113
114
115
116
117
118
119
120
121
122
123
124
108
126
111
not
supplied
not
supplied
not supplied
not
supplied
not
supplied
not
supplied

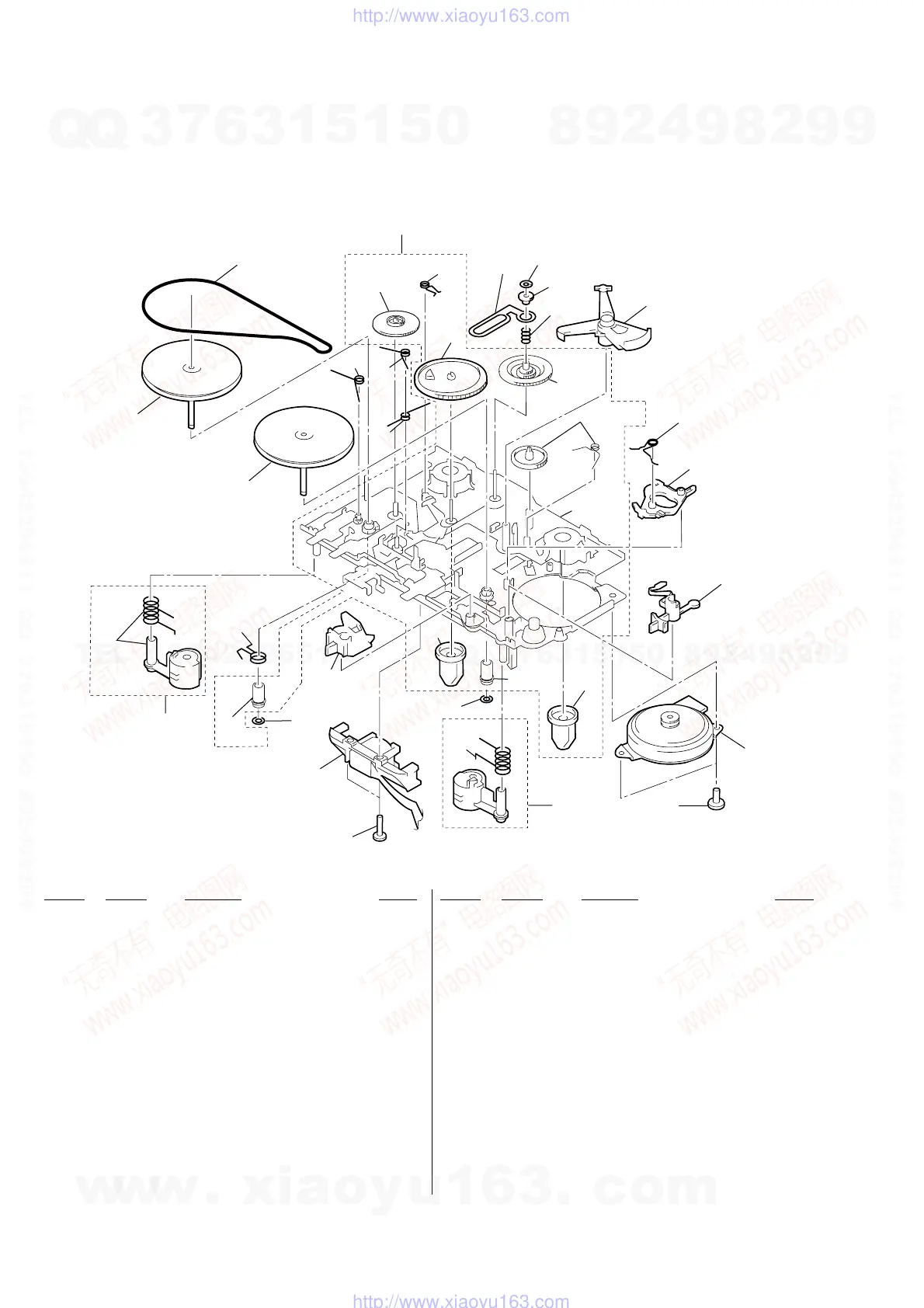

5-2. MECHANISM DECK SECTION
MF-WMFX467-114 : CH
MF-WMFX281-114 : 5E, 6E, 9E
( )
101 X-3369-749-1 PINCH LEVER (N) ASSY
103 X-3372-619-1 WHEEL ASSY (NP), CAPSTAN
104 3-704-197-71 SCREW (M1.4)
105 3-024-223-01 GEAR (REEL-2)
106 3-921-797-01 WASHER
107 3-920-993-01 SPRING (NR)
108 3-933-324-01 SPRING (FR LEVER)
109 3-938-657-01 BELT
110 3-015-436-01 SPRING (STOP)
111 3-013-142-01 SPRING (FR-CP)
112 3-921-053-01 LEVER, D SELECTION
113 X-3376-169-1 CLUTCH ASSY
114 3-920-990-21 SPRING (UD), COMPRESSION
115 3-921-335-01 WASHER, LEVER
116 3-923-530-11 SLEEVE (M)
117 3-728-091-01 WASHER, STOPPER
118 3-921-052-11 LEVER (A), DETECTION
119 3-920-994-11 SPRING (D SELECTION)
120 3-929-419-01 LEVER (BR), DETECTION
121 3-704-197-01 SCREW (M1.4), SPECIAL HEAD
122 3-921-023-01 LEVER, M SELECTION
123 X-3369-748-1 PINCH LEVER (R) ASSY
124 3-920-997-01 SPRING (PINCH R)
125 3-016-989-01 SPRING (SW-CP)
126 X-3372-960-1 CHASSIS COMP ASSY (GL-L)
HP601 1-500-648-11 HEAD, MAGNETIC (PLAYBACK)(5E,6E,9E)
HP601 1-500-648-12 HEAD, MAGNETIC (PLAYBACK)(CH)
M601 1-763-073-11 MOTOR (CAPSTAN/REEL) (INCLUDING PULLY)
(CH)
M601 1-763-683-11 MOTOR (CAPSTAN/REEL) (INCLUDING PULLY)
(5E,6E,9E)
