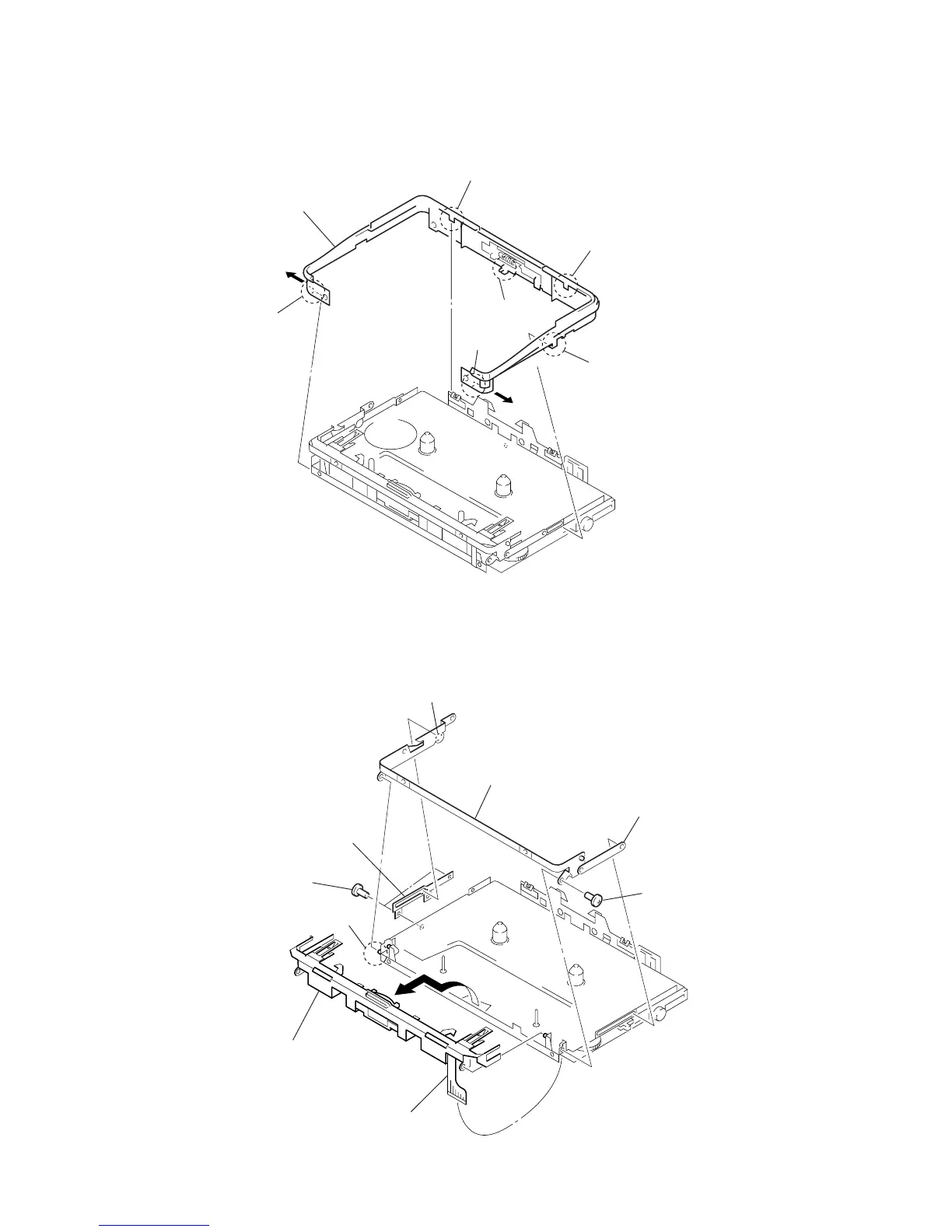

ORNAMENT BLOCK ASSY, REEL
HOLDER (F) ASSY
1 claw
4 claw
4 claw
2 cla
w
1 claw
3 boss
5 ormanent block assy, reel
8 flexible board.
9 Remove the holder (F) assy
in the direction of the arrow.
1 two screws
(M1.4
× 1.4)
3 lever (B), lock
2 shaft
7 bracket (cassette) assy
5 lever (S), lock
4 screw (M1.4
)
6 shaft
