– 32 –

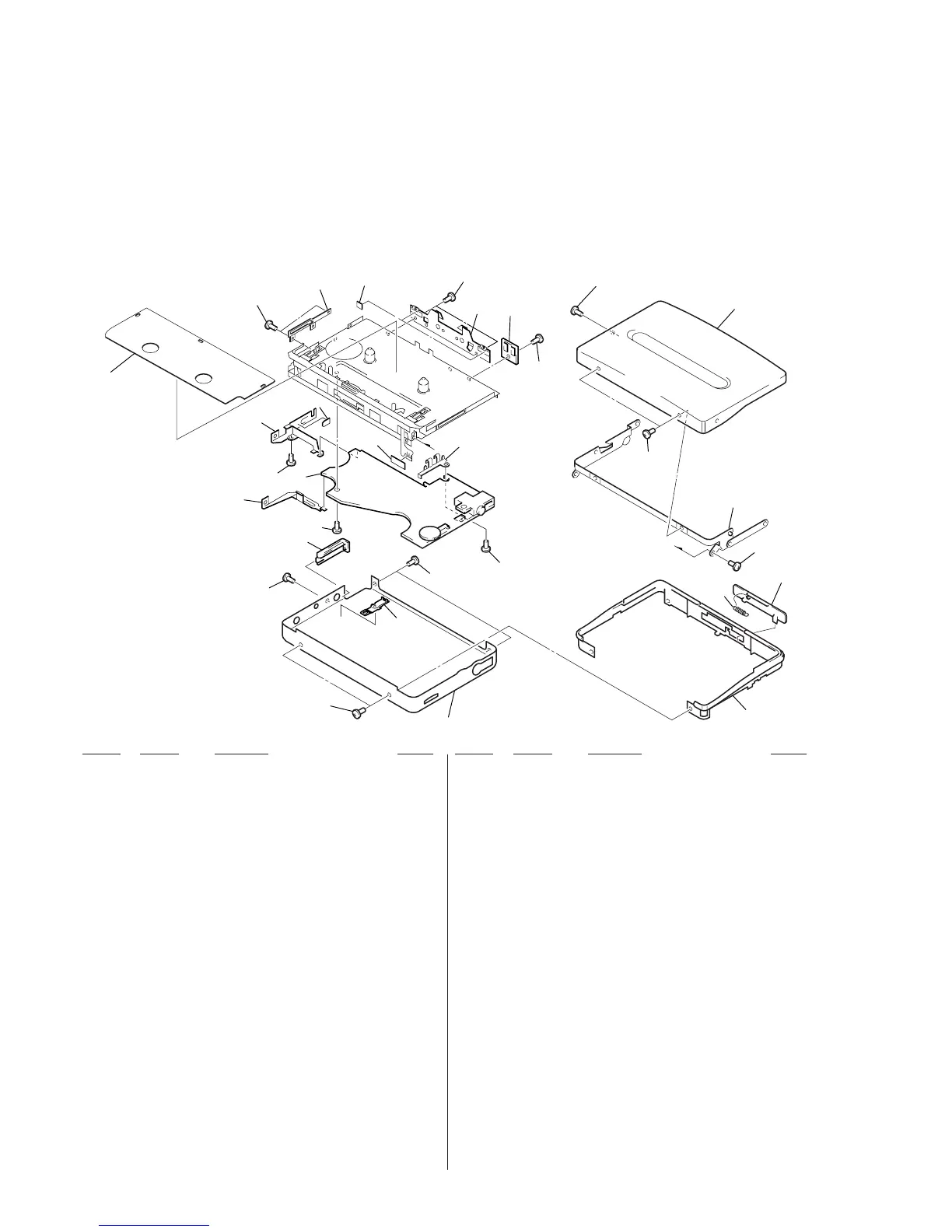

(1) CASE SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
14
S901
11
12
13
10
9
25
5
6
4
3
1
2
1
25
1
26
24
22
23
21
20
18
19
18
15
16
15
8
7
1 3-704-197-21 SCREW (M1.4X2.5), LOCKING (FX877: JE, KR)
1 3-704-197-23 SCREW (M1.4X2.5), LOCKING
2 3-034-075-01 LEVER (HOLD)
3 3-034-068-01 LID, BATTERY (FX877: JE) (SILVER)
3 3-034-068-11 LID, BATTERY (FX877: JE) (BLUE)
3 3-034-068-21 LID, BATTERY (FX673/FX877: CH, KR)
3 3-034-068-31 LID, BATTERY (FX877: KR) (BLUE)
4 3-345-648-71 SCREW (M1.4), TOOTHED LOCK
5 A-3021-222-A MAIN, BOARD COMPLETE
(EXCEPT FX673: FR/FX877: JE)
5 A-3021-223-A MAIN, BOARD COMPLETE (FX673: FR)
5 A-3021-237-A MAIN, BOARD COMPLETE (FX877: JE)
6 3-029-213-02 TERMINAL BOARD (T3)
7 3-029-210-01 TERMINAL BOARD (MINUS)
8 3-309-595-11 SHEET, INSULATING, PACK (FX877: CH, JE)
9 X-3377-281-1 TERMINAL BOARD ASSY, BATTERY
10 3-031-460-01 SHEET (BT)
11 3-366-892-11 SCREW (M1.4X1.4)
12 3-029-217-01 LEVER (B), LOCK
13 3-328-483-11 SHEET
14 3-029-205-01 COVER, MD (FX877: JE)
14 3-029-205-11 COVER, MD (FX673: AEP, UK, FR, EE)
14 3-029-205-21 COVER, MD
(FX673: CND, E, EA, HK, AUS/FX877: CH)
15 3-366-892-01 SCREW (M1.4)
16 X-3376-277-2 BRACKET ASSY
18 3-704-197-11 SCREW (M1.4X2.0), LOCKING (FX877: KR, JE)
18 3-704-197-13 SCREW (M1.4X2.0), LOCKING
19 X-3377-332-1 LID ASSY (F-S), CASSETTE (FX673/FX877: CH)
19 X-3377-528-1 LID ASSY (F-SJ), CASSETTE
(FX877: JE, KR) (SILVER)
19 X-3377-529-1 LID ASSY (F-LJ), CASSETTE (FX877: KR, JE)
(BLUE)
20 X-3376-279-1 BRACKET (CASSETTE) ASSY
21 3-365-630-41 SCREW (M1.4)
22 3-029-220-01 SPRING, TENSION
23 3-029-219-01 KNOB (OPEN)
24 3-034-072-11 ORNAMENT, REEL
25 3-375-114-41 SCREW
26 X-3377-347-1 CASE (FX-AS3) ASSY
(FX673: CND, E, EA, HK, AUS)
26 X-3377-348-1 CASE (FX-AS7M) ASSY (FX877: KR)
26 X-3377-349-1 CASE (FX-AS7M) ASSY (FX877: CH)
26 X-3377-357-1 CASE (FX-AS30) ASSY
(FX673: AEP, UK, FR, EE)
26 X-3377-366-1 CASE (FX-AL7J) ASSY (FX877: KR, JE) (BLUE)
26 X-3377-367-1 CASE (FX-AS7J) ASSY (FX877: KR, JE)
(SILVER)
S901 1-762-553-11 SWITCH, LEAF (TAPE DETECT, ATS)
• Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
EA : Saudi Arabia model
EE : East European model
FR : French model
HK : Hong Kong model
JE : Tourist model
KR : Korean model
