Sony WM-GX221 User Manual

SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
17
WM-GX221
•Abbreviation
5E : E model with the indication of the
country of origin.
9E : E model without the indication of
the country of origin.
CH : Chinese model
CND : Canadian model
EA : Saudi Arabia model
TW : Taiwan model

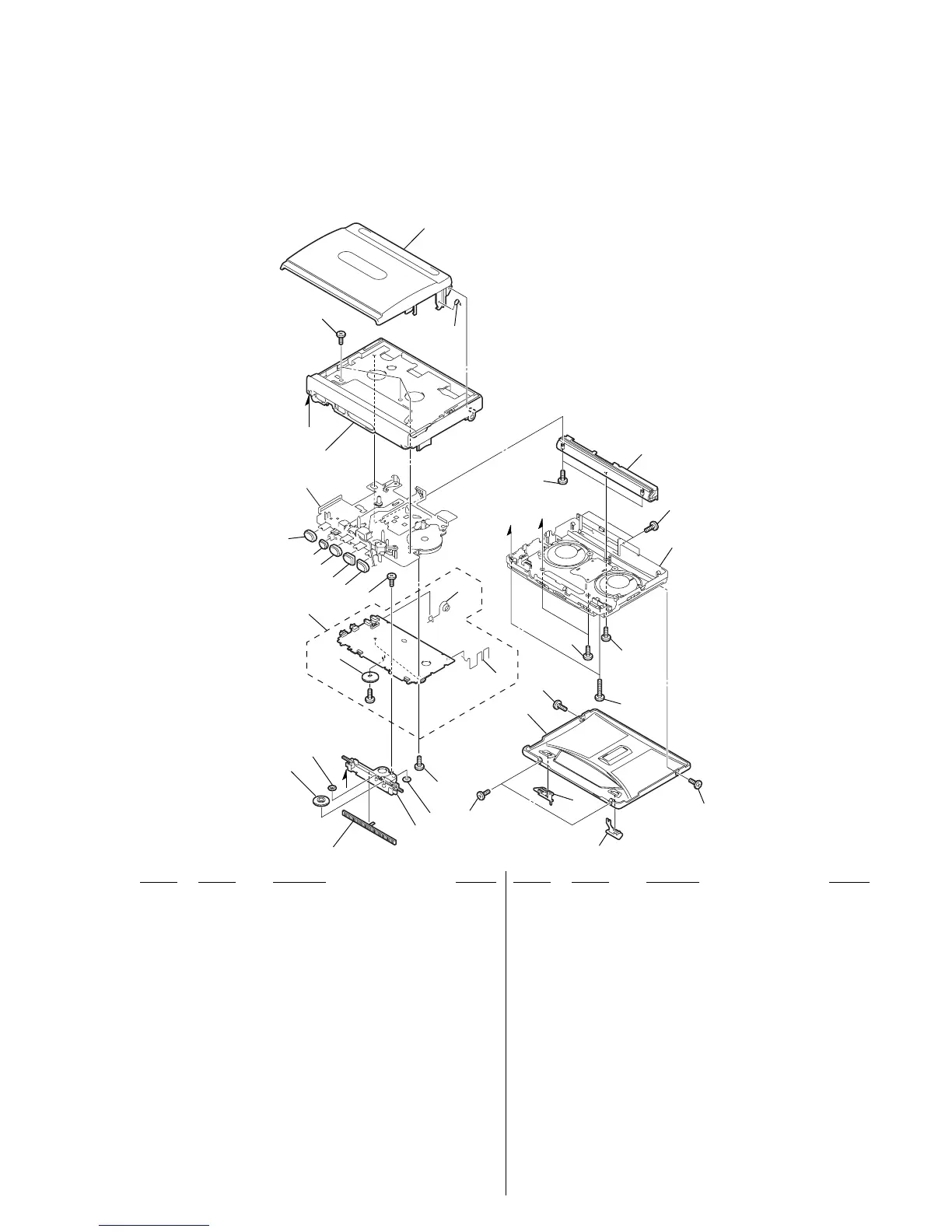

7-1. OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-237-138-01 POINTER
2 3-237-137-01 GEAR (C)
3 3-237-136-01 GEAR (B)
4 3-237-152-01 HOLDER (GEAR)
6 3-237-135-01 GEAR (A)
* 7 A-3021-657-A MAIN BOARD, COMPLETE (EA)
* 7 A-3021-658-A MAIN BOARD, COMPLETE (US, CND)
* 7 A-3021-667-A MAIN BOARD, COMPLETE (E, 9E, CH, TW)
* 7 A-3021-668-A MAIN BOARD, COMPLETE (5E)
8 3-234-570-01 BUTTON (REW)
9 3-234-569-01 BUTTON (FF)
10 3-234-568-01 BUTTON (PLAY)
11 3-235-589-01 BUTTON (STOP)
12 3-235-588-01 BUTTON (REC)
14 3-237-121-01 CABINET (CENTER) (EA, 9E, CH, TW)
14 3-237-121-11 CABINET (CENTER) (US, CND, 5E)
16 X-3381-403-4 HOLDER SUB ASSY, CASSETTE (EXCEPT 9E)
16 X-3381-416-1 HOLDER SUB ASSY, CASSETTE (9E)
17 3-237-140-01 SPRING (TORSION)
18 3-237-139-01 COVER, JOINT
19 3-237-132-01 KNOB (MODE)
20 3-237-133-01 KNOB (SOUND)
21 3-237-119-01 PANEL (CABINET FRONT)
22 3-237-149-01 TERMINAL (-), BATTERY
23 3-237-150-01 TERMINAL (+), BATTERY
24 3-893-942-41 SCREW (B1.7X4), TAPPING
25 3-318-203-91 SCREW (B1.7X9), TAPPING
26 3-893-942-01 SCREW
27 3-893-942-01 SCREW (B1.7), TAPPING
28 3-939-590-16 SCREW (IB LOCK)
29 3-318-203-63 SCREW (1.7X3), TAPPING (B)
30 3-345-648-81 SCREW (M1.4), TOOTHED LOCK
31 3-375-114-01 SCREW (M1.4)
#1 7-627-552-08 SCREW,PRECISION +P 1.7X2.5
24
2
1
3
4
6
a
a
b
b
7
8
9
10
11
12
3
23
22
14
16
17
18
21
19
20
30
#1
31
25
26
27
24
28
29
24
24
MT-WMGX221-175
CABINET (FRONT) SECTION
Ver 1.2
