Sony WM-GX221 - Front Cabinet Section Exploded View

18
WM-GX221

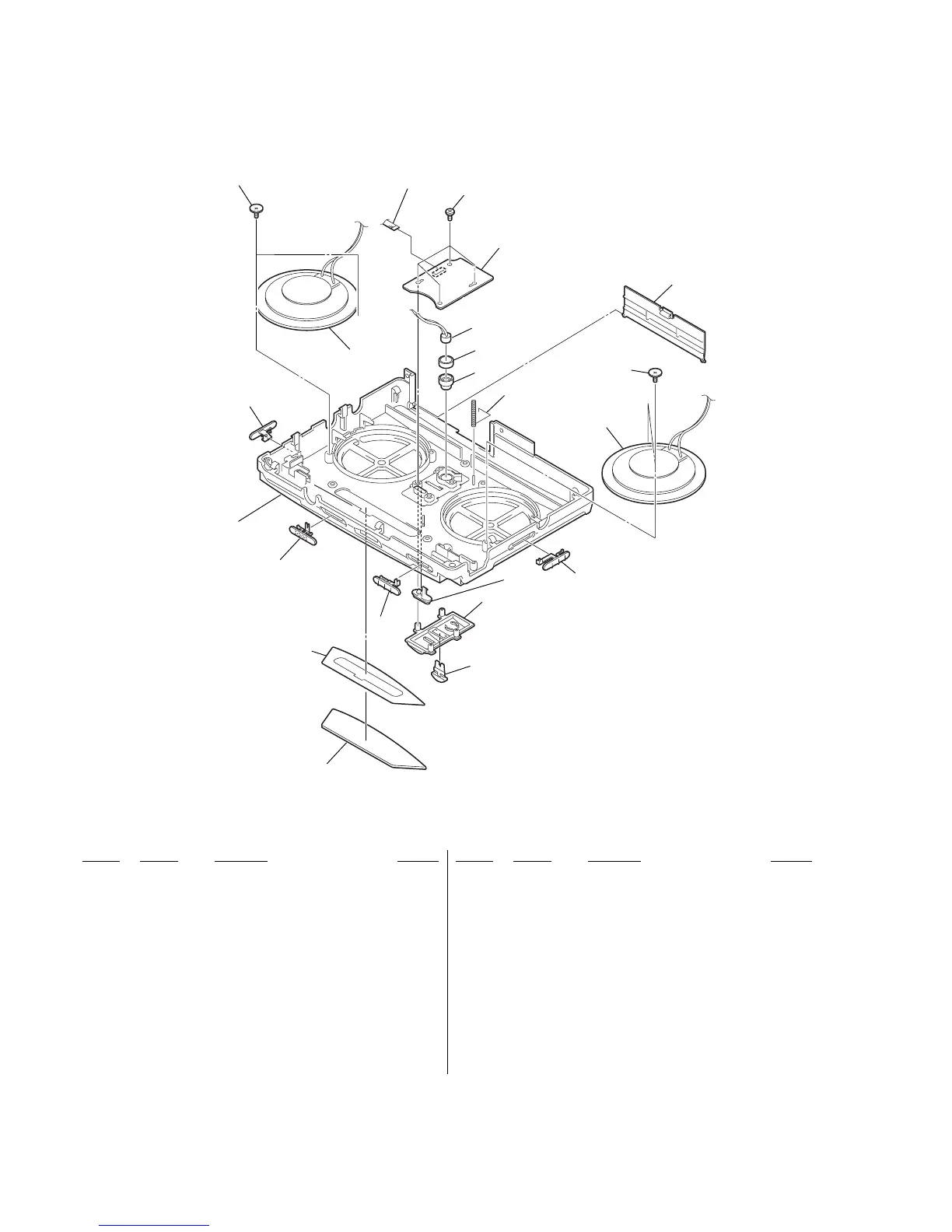

7-2. CABINET (FRONT) SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 3-237-123-01 WINDOW (DIAL) (EA)
51 3-237-123-11 WINDOW (DIAL) (E, 9E, CH, TW)
51 3-237-123-21 WINDOW (DIAL) (US, CND, 5E)
52 3-237-201-01 SHEET, ADHESIVE
53 3-237-130-01 KNOB (BAND)
54 3-237-131-01 KNOB (PAUSE)
55 3-237-120-01 CABINET (FRONT)
56 3-237-134-01 KNOB (AVLS)
* 57 1-683-530-11 SUB BOARD
58 1-823-584-11 CABLE, FLEXIBLE FLAT (6 CORE)
59 3-237-128-01 CUSHION (MIC)
60 3-239-558-01 SPRING (GROUND)
61 3-237-125-01 LID, BATTERY CASE
62 3-237-129-01 KNOB (SP/HP)
63 3-237-126-01 LENS
64 3-237-151-01 PANEL (MIC)
65 3-237-127-01 KNOB (TAPE SPEED)
66 1-542-481-11 MICROPHONE, ELECTRET CAP
67 3-034-792-01 SCREW, TAPPING (B2.0)
68 3-318-382-41 SCREW (1.7), TAPPING
MIC501 1-542-307-11 MICROPHONE (FLAT MIC)
SP151 1-544-993-11 SPEAKER (3.6cm) (L)
SP251 1-544-993-11 SPEAKER (3.6cm) (R)
51
52
54
55
56
53
65
64
62
59
57
58
60
63
67
67
68
66
SP151
SP251
MIC501
61
Ver 1.2
