Sony WM-GX221 - Mechanism Deck Block 1 Exploded View

19
WM-GX221
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

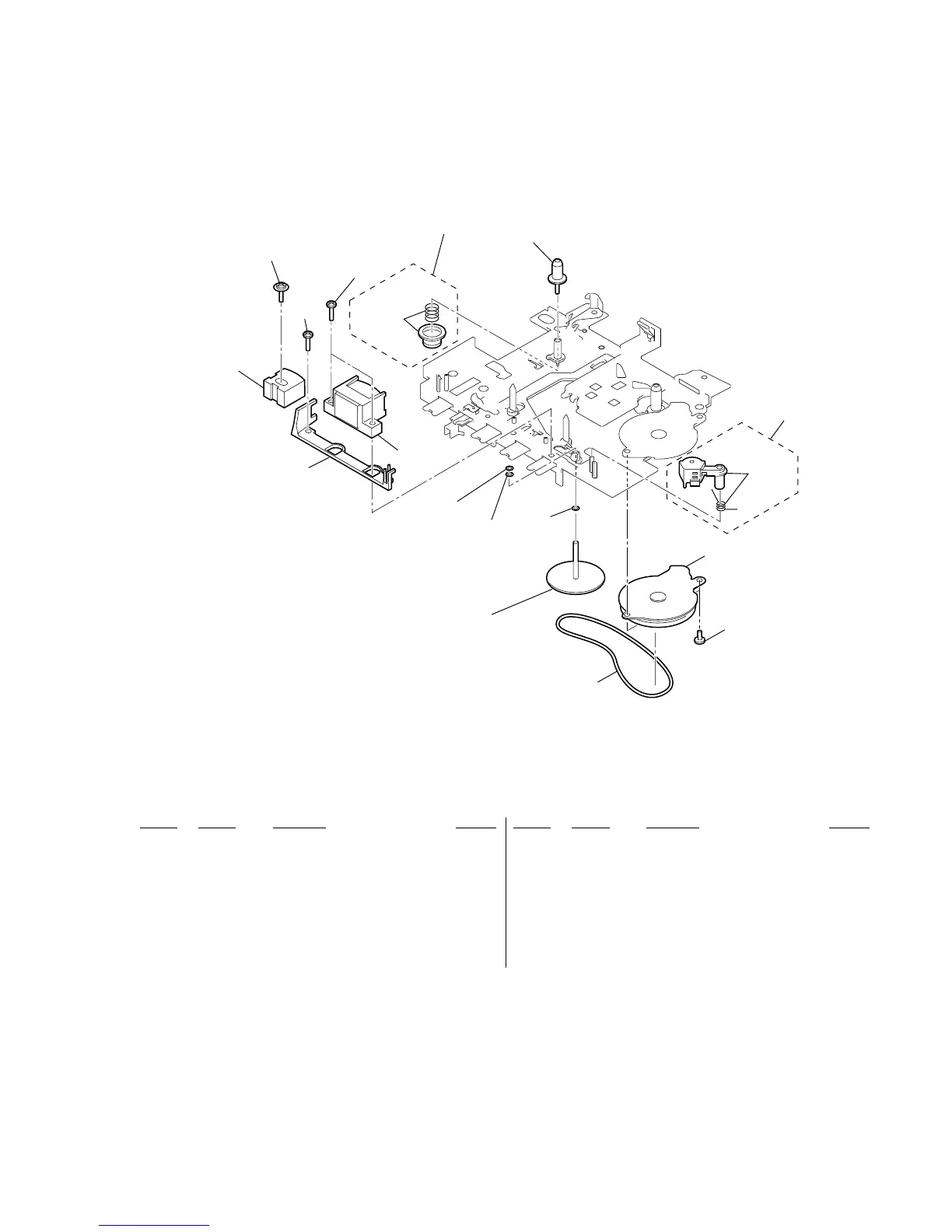

7-3. MECHANISM DECK BLOCK-1
(MT-WMGX221-175)
101 3-704-197-01 SCREW (M1.4), SPECIAL HEAD
102 3-234-857-01 BELT (CAP)
104 X-3379-877-1 FLY ASSY (AR), CAPSTAN
105 3-386-694-01 WASHER
106 3-029-278-01 WASHER
107 3-029-275-01 WASHER (STOPPER N)
108 3-703-816-73 SCREW (M1.4), SPECIAL HEAD
109 3-234-861-01 GUIDE (ARO), TAPE
110 3-019-776-01 GEAR (REEL-S)
111 3-703-816-24 SCREW (M1.4X2.5), SPECIAL HEAD
112 X-3379-882-1 PINCH (N) ASSY, ARM
113 3-703-925-21 SCREW (M1.4)
M601 1-763-772-11 MOTOR, DC (CAPSTAN/REEL)
HE901 1-500-232-11 HEAD, MAGNETIC (ERASE)
HRP901 1-500-718-11 HEAD,MAGNETIC(REC/PB)
A (Included in Ref. No.151)
HRP901
HE901
M601
110
112
101
102
104
105
108
111
113
109
107
106
z
not
supplied
not
supplied
