NOTE:
* -XX, -X mean standardized parts, so they
may have some difference from the
original one.
SECTION 7

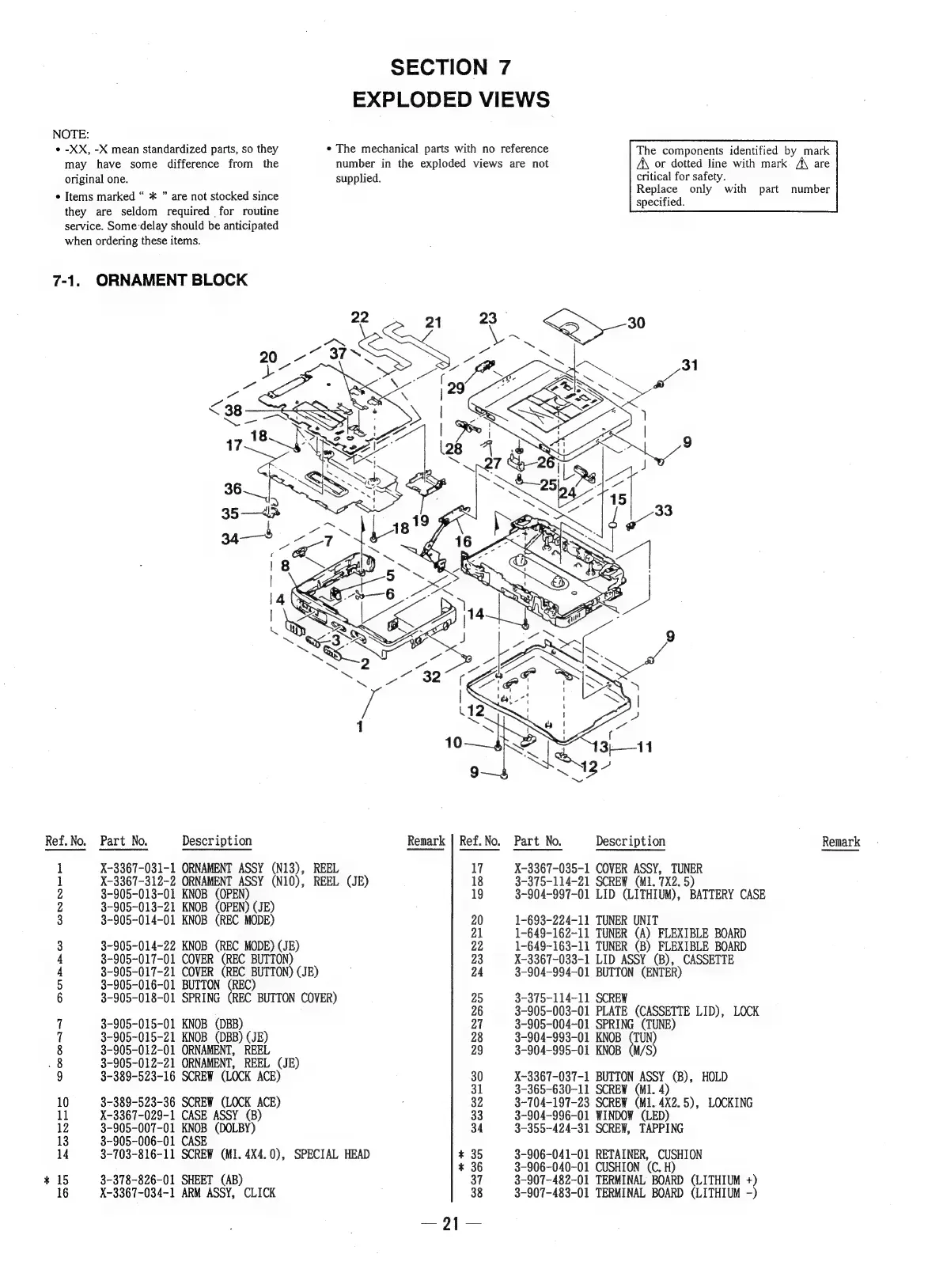

EXPLODED VIEWS
supplied.
° Items marked “ * ” are not stocked since
they are seldom required for routine
service. Some‘delay should be anticipated
when ordering these items.
7-1.
Ref. No. Part No.
co oo cos] ~1 o> O71 ok fe OO WPS borer,
ORNAMENT BLOCK
* The mechanical parts with no reference
number in the exploded views are not
The components identified by mark
A\ or dotted line with mark. A\ are
critical for safety.
Replace only with part number
specified.
Description
X-3367-031-1 ORNAMENT ASSY (N13), REEL
X-3367-312-2 ORNAMENT ASSY (N10), REEL (JE)
3-905-013-01 KNOB (OPEN)
3-905-013-21 KNOB (OPEN) (JE)
3-905-014-01 KNOB (REC MODE)
3-905-014-22 KNOB (REC MODE) (JE)
3-905-017-01 COVER (REC BUTTON)
3-905-017-21 COVER (REC BUTTON) (JE)
3-905-016-01 BUTTON (REC)
3-905-018-01 SPRING (REC BUTTON COVER)
3-905-015-01 KNOB (DBB)
3-905-015-21 KNOB (DBB) (JE)
3-905-012-01 ORNAMENT, REEL
3-905-012-21 ORNAMENT, REEL (JE)
3-389-523-16 SCREW (LOCK ACE)
3-389-523-36 SCREW (LOCK ACE)
X-3367-029-1 CASE ASSY (B)
3-905-007-01 KNOB (DOLBY)
3-905-006-01 CASE
3-703-816-11 SCREW (M1. 4X4.0), SPECIAL HEAD
3-378-826-01 SHEET (AB)
X-3367-034-1 ARM ASSY, CLICK
Remark | Ref. No.
17
18
19
Part No.
Description
Remark
X-3367-035-1 COVER ASSY, TUNER
3-375-114-21 SCREW (M1. 7X2. 5)
3-904-997-01 LID (LITHIUM), BATTERY CASE
1-693-224-11 TUNER UNIT
1-649-162-11 TUNER (A) FLEXIBLE BOARD
1-649-163-11 TUNER (B) FLEXIBLE BOARD
X-3367-033-1 LID ASSY (B), CASSETTE
3-904-994-01 BUTTON (ENTER)
3-375-114-11 SCREW
3-905-003-01 PLATE (CASSETTE LID), LOCK
3-905-004-01 SPRING (TUNE)
3-904-993-01 KNOB (TUN)
3-904-995-01 KNOB (M/S)
X-3367-037-1 BUTTON ASSY (B), HOLD
3-365-630-11 SCREW (M1. 4)
3-704-197-23 SCREW (M1. 4X2.5), LOCKING
3-904-996-01 WINDOW (LED)
3-355-424-31 SCREW, TAPPING
3-906-041-01 RETAINER, CUSHION
3-906-040-01 CUSHION (C. H)
3-907-482-01 TERMINAL BOARD (LITHIUM +)
3-907-483-01 TERMINAL BOARD (LITHIUM -)
