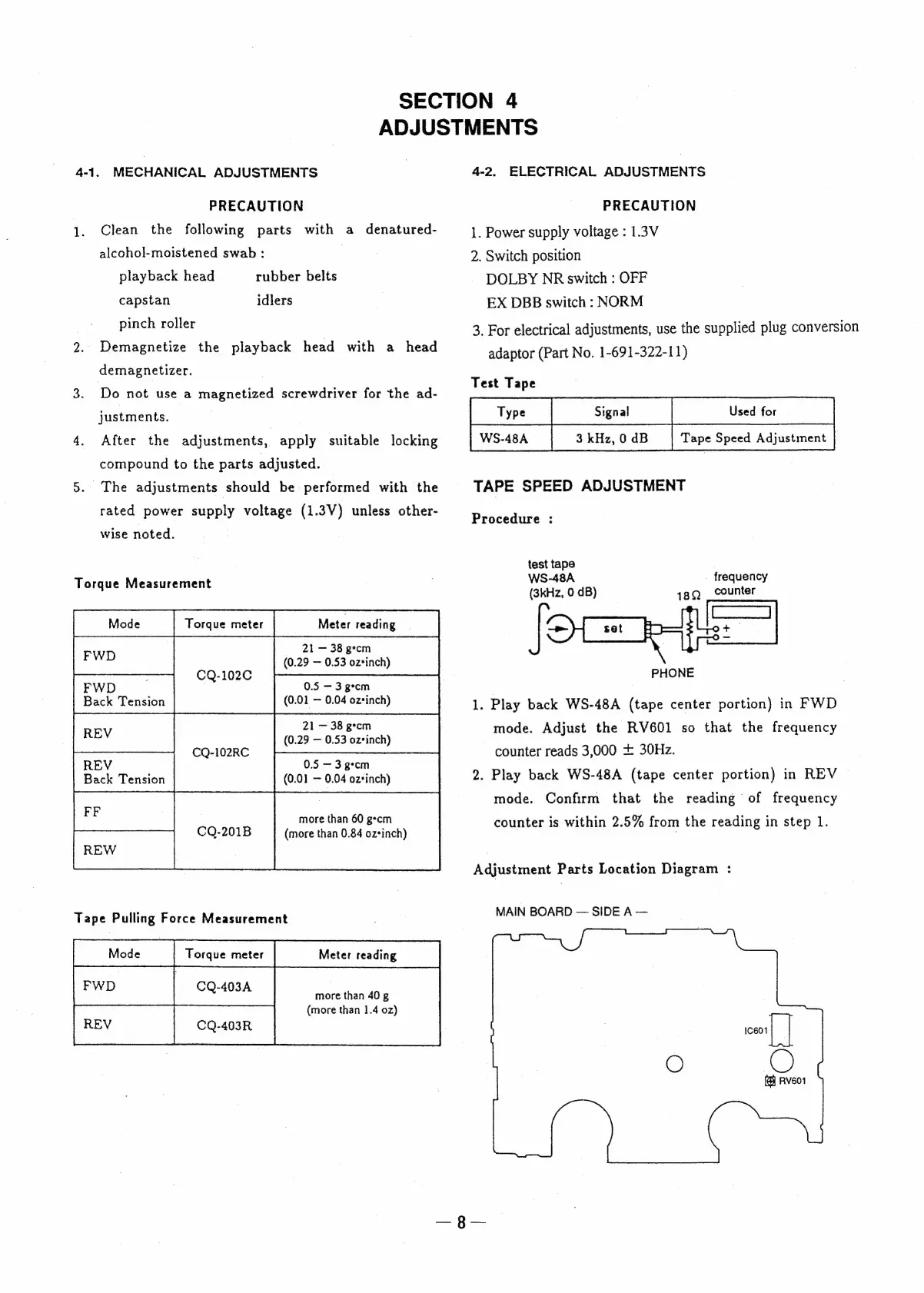

SECTION
4
ADJUSTMENTS
4-1.
MECHANICAL
ADJUSTMENTS
PRECAUTION
1.
Clean
the
following
parts
with
a
denatured-
alcohol-moistened
swab
:
rubber
belts
idlers
playback
head
capstan
pinch
roller
2.
Demagnetize
the
playback
head
with
a
head
demagnetizer.
3.
Do
not
use
a
magnetized
screwdriver
for
the
ad-
justments.
4.
After
the
adjustments,
apply
suitable
locking
compound
to
the
parts
adjusted.
5.
The
adjustments
should
be
performed
with
the
rated
power
supply
voltage
(1.3V)
unless
other-
wise
noted.
Torque
Measurement
21
38
g*cm
(0.29
0.53
oz*inch)
FWD
:
Back
Tension
REV
REV
Back
Tension
CQ-201B
prew
|
.
CQ-102C
0.5
3
gecm
(0.01
0.04
ozsinch)
21
38
g*cm
(0.29
0.53
oz*inch)
CQ-102RC
0.5
3
gecm
(0.0)
0.04
ozsinch)
more
than
60
g*cm
(more
than
0.84
ozinch)
Tape
Pulling
Force
Measurement
more
than
40
g
(more
than
1.4
02)
4-2.
ELECTRICAL
ADJUSTMENTS
PRECAUTION
1.
Power
supply
voltage
:
1.3V
2.
Switch
position
DOLBY
NR
switch
:
OFF
EX
DBB
switch
:
NORM
3.
For
electrical
adjustments,
use
the
supplied
plug
conversion
adaptor
(Part
No.
1-691-322-11)
Test
Tape
3
kHz,
0
dB
Tape
Speed
Adjustment
|
TAPE
SPEED
ADJUSTMENT
Procedure
:
test
tape
WS-48A
frequency
(3kHz,
0
dB)
18Q
_counter
PHONE
1.
Play
back
WS-48A
(tape
center
portion)
in
FWD
mode.
Adjust
the
RV601
so
that
the
frequency
counter
reads
3,000
+
30Hz.
2.
Play
back
WS-48A
(tape
center
portion)
in
REV
mode.
Confirm
that
the
reading
of
frequency
counter
is
within
2.5%
from
the
reading
in
step
1.
Adjustment
Parts
Location
Diagram
:
MAIN
BOARD
SIDE
A
