Sony WM-GX707 User Manual

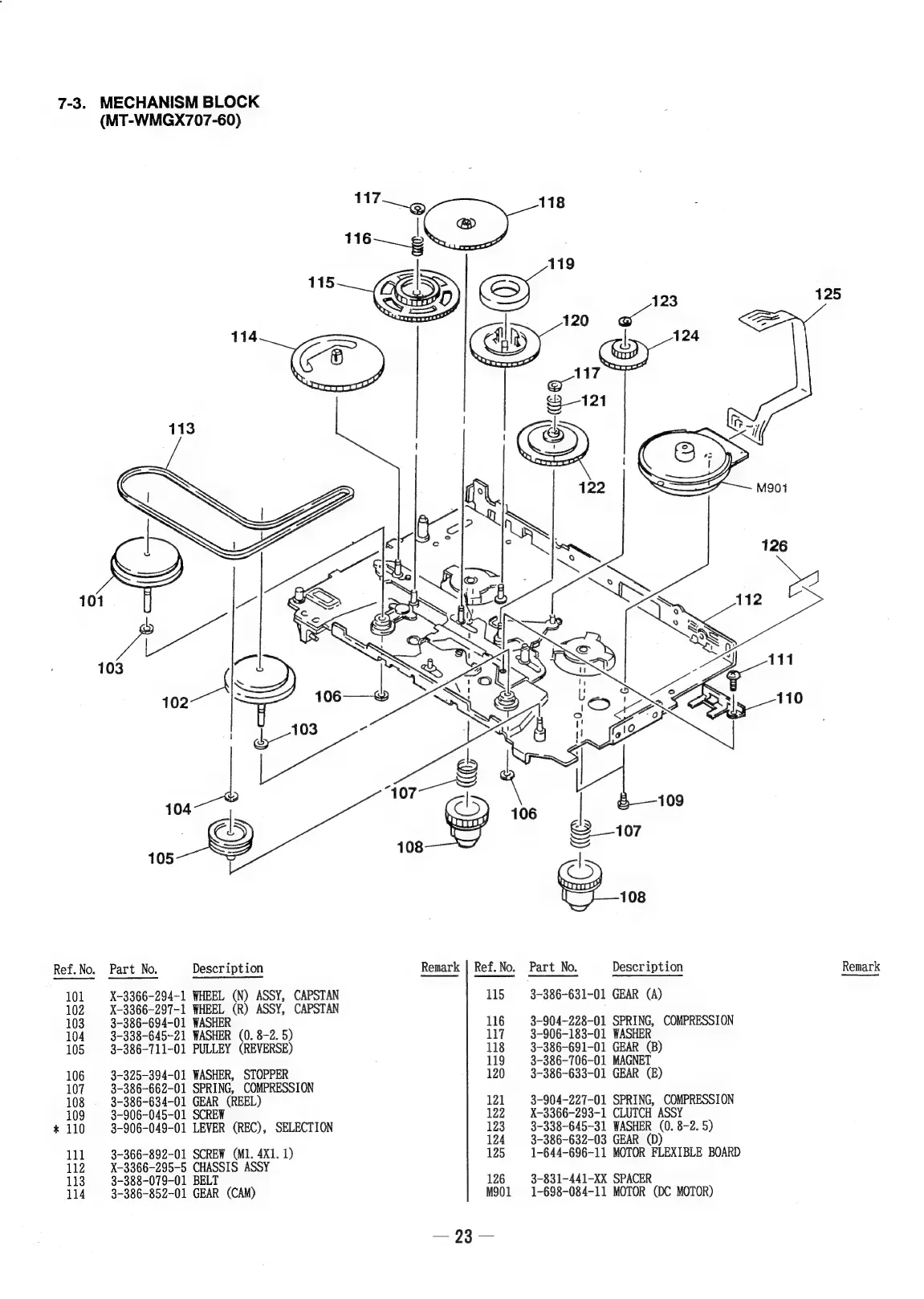

7-3. MECHANISM BLOCK
(MT-WMGX707-60)
113
101 :
103
|
Be
ee :
Ref.No.
Part
No.
Description
Remark
|
Ref.No.
Part
No.
Description
Remark
101 X-3366-294-1 WHEEL (N) ASSY, CAPSTAN 115 3-386-631-01 GEAR (A)
102 X-3366-297-1 WHEEL (R) ASSY, CAPSTAN
103
3-386-694-01
WASHER
116
3-904-228-01
SPRING,
COMPRESSION
104 3-338-645-21 WASHER (0. 8-2. 5) 117 3-906-183-01 WASHER
105 3-386-711-01 PULLEY (REVERSE) 118 3-386-691-01 GEAR (B)
119 3-386-706-01 MAGNET
106 3-325-394-01 WASHER, STOPPER 120 3-386-633-01 GEAR (E)
107 3-386-662-01 SPRING, COMPRESSION
108
3-386-634-01
GEAR
(REEL)
121
3-904-227-01
SPRING,
COMPRESSION
109 3-906-045-01 SCREW 122 X-3366-293-1 CLUTCH ASSY
110
3-906-049-01
LEVER
(REC),
SELECTION
123
3-338-645-31
WASHER
(0.
8-2.
5)
124 3-386-632-03 GEAR (D)
111
3~366-892-01
SCREW
(M1.
4X1.
1)
125
1-644-696-11
MOTOR
FLEXIBLE
BOARD
112
X-3366-295-5
CHASSIS
ASSY
113
3-388-079-01
BELT
126
3-831-441-XX
SPACER
114
3-386-852-01
GEAR
(CAM)
M901
1-698-084-11
MOTOR
(DC
MOTOR)
