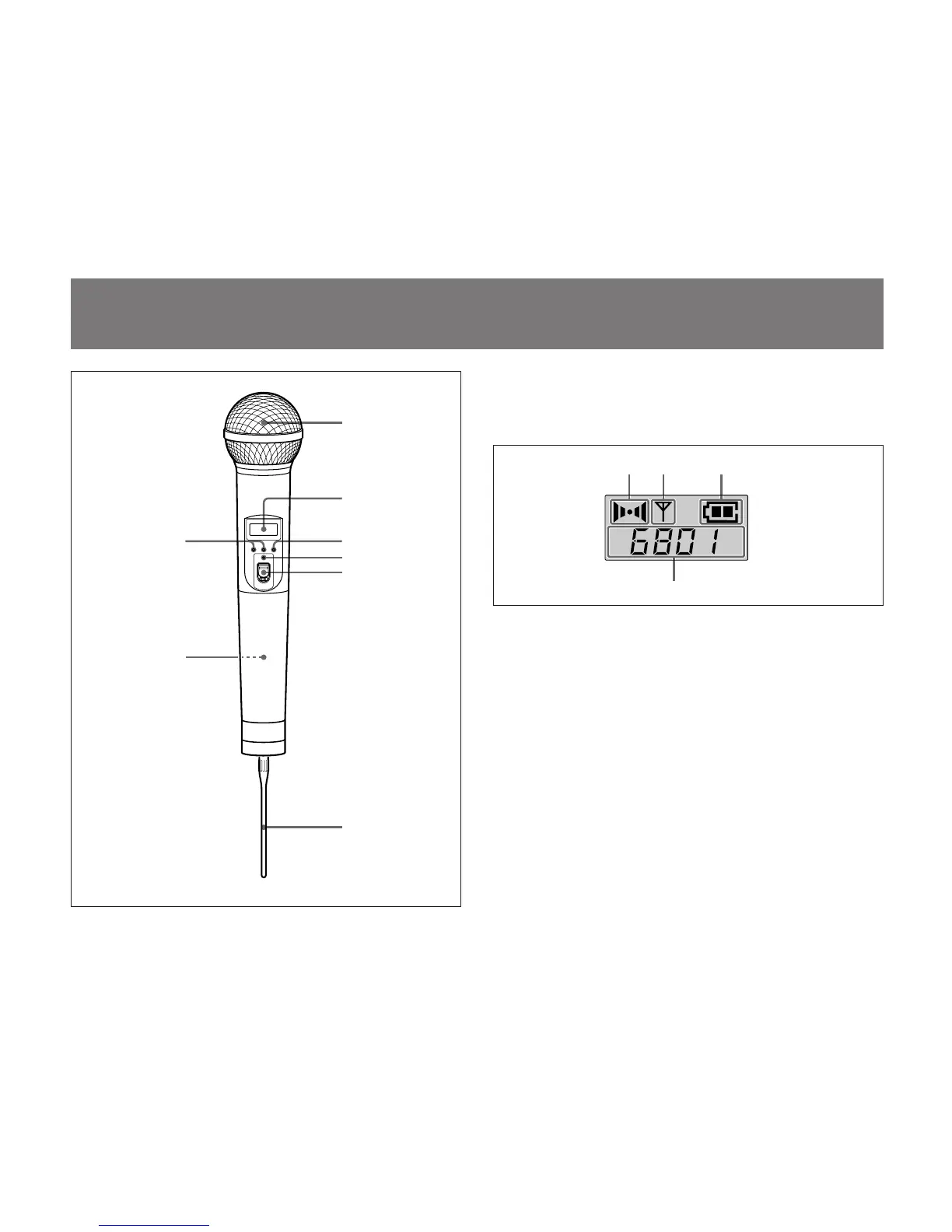

Parts Identification
1 Wind screen
Protects against noise caused by wind.
2 Liquid-crystal display
A AF (audio input) indication
Lights whenever an audio signal stronger than the reference
level is received.
B RF (antenna output) indication
Lights during signal transmission from the antenna.
C BATT (battery) indication
Shows the battery condition.
See “Battery indication” on page 7.
Display example
for U68 model
AB
D
C
AF RF BATT
