Sony WRT-807B - Parts Identification

4(GB)
6
5
4
7
2
3
1
8

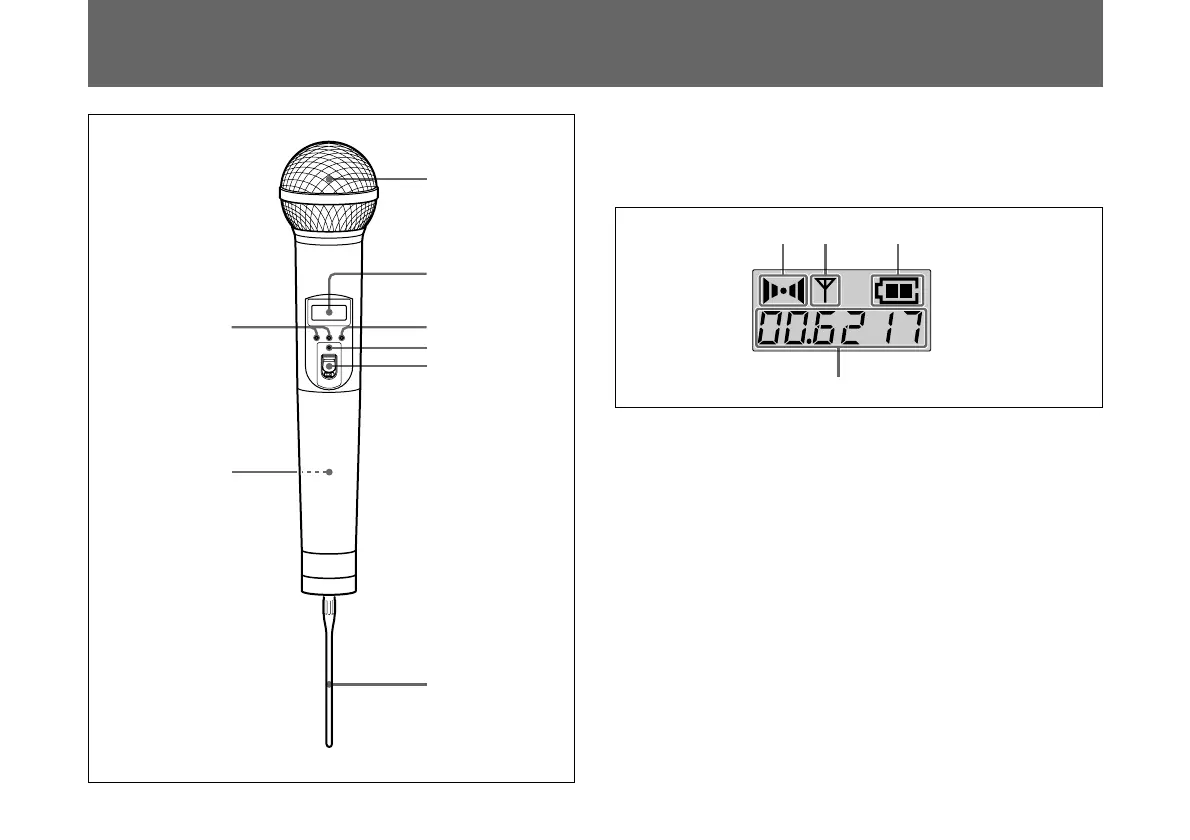

Display example
for CE62 model
Parts Identification
1 Wind screen
Protects against noise caused by wind.
2 Liquid-crystal display
A AF (audio input) indication
Lights whenever an audio signal stronger than the reference
level is received.
B RF (antenna output) indication
Lights during signal transmission from the antenna.
C BATT (battery) indication
Shows the battery condition.
See “Battery indication” on page 7.
AB
D
C
AF RF BATT
