Operation

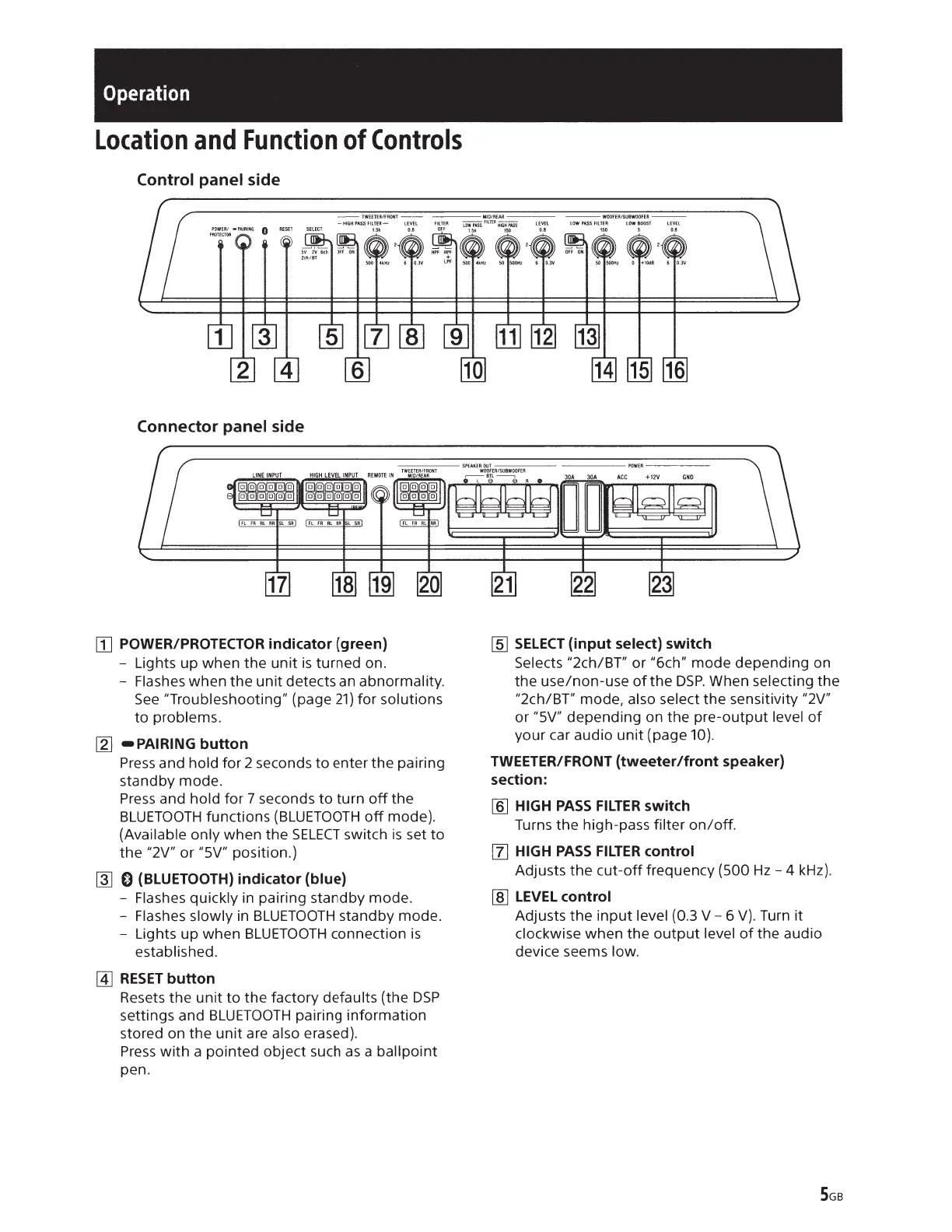

Location and Function of Controls
Control panel side
Connector panel side
[I] POWER/PROTECTOR indicator {green)
- Lights up when the unit is turned on.
- Flashes
when the unit detects an abnormality.
See "Troubleshooting" (page 21) for solutions
to problems.
[2] -PAIRING button
Press and hold for 2 seconds to enter the pairing
standby mode.
Press and hold for 7 seconds to turn off the
BLUETOOTH functions {BLUETOOTH off mode).
(Available only
when the SELECT switch is set to
the "2V" or "SV" position.)
~ 0 {BLUETOOTH} indicator {blue)
- Flashes quickly in pairing standby mode.
- Flashes slowly
in BLUETOOTH standby mode.
- Lights
up when BLUETOOTH connection is
established.
@] RESET button
Resets the unit to the factory defaults (the DSP
settings and BLUETOOTH pairing information
stored on the unit are also erased).
Press with a pointed object such as a ballpoint
pen.
[ID SELECT (input select) switch
Selects "2ch/BT" or "6ch" mode depending on
the use/non-use of the DSP. When selecting the
"2ch/BT" mode, also select
the sensitivity "2V"
or
"SV" depending on the pre-output level of
your car audio unit (page 10).
TWEETER/FRONT (tweeter /front speaker)
section:
[§] HIGH PASS FILTER switch
Turns the high-pass filter on/off.
[1] HIGH PASS FILTER control
Adjusts the cut-off frequency {500 Hz- 4kHz).
[ID LEVEL control
Adjusts the input level {0.3 V- 6 V). Turn it
clockwise when the output level of the audio
device seems low.
5GB
