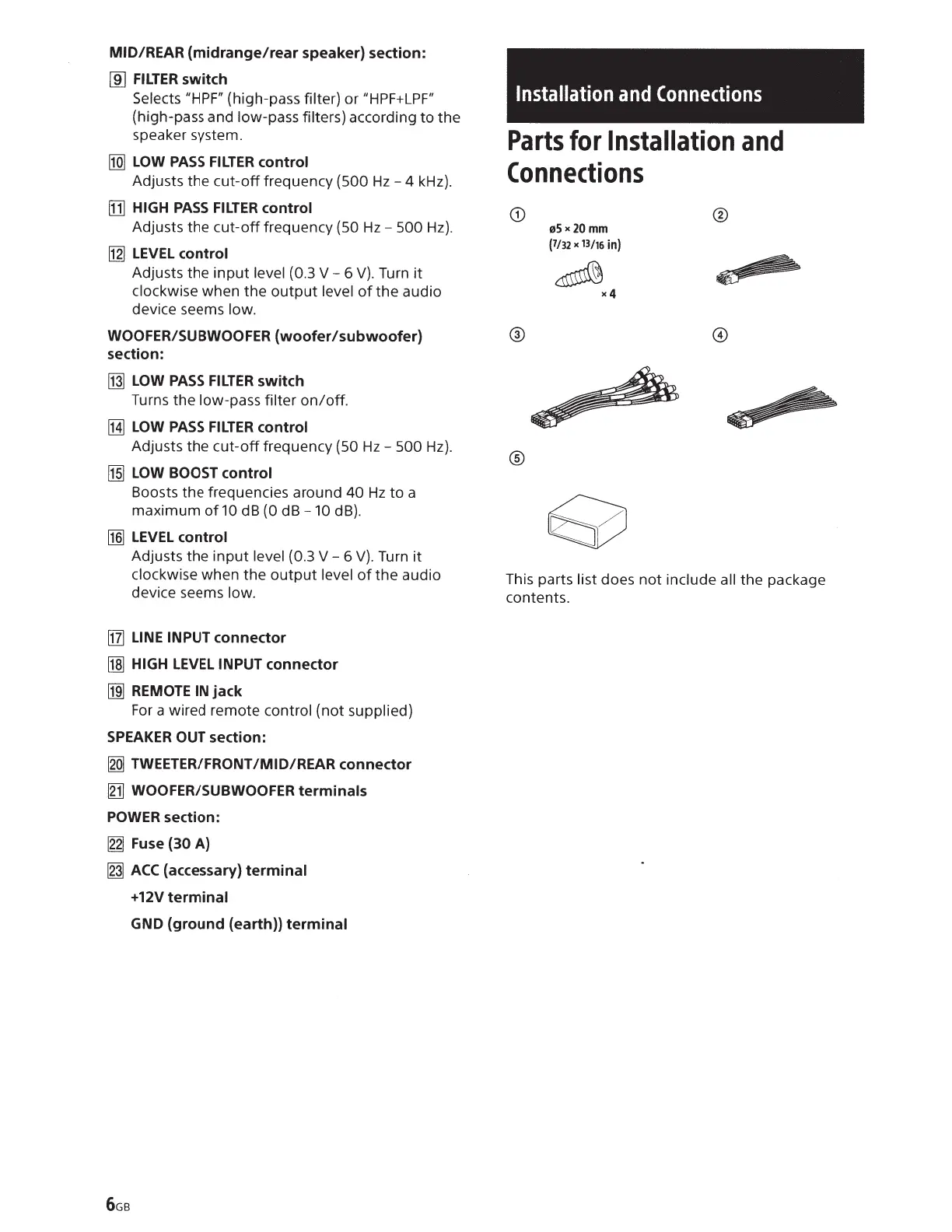

MID/REAR
{midrange/rear
speaker)
section:
[ID
FILTER
switch
Selects
"HPF"
(high-pass filter)
or
"HPF+LPF"
(high-pass and low-pass filters) according
to
the
speaker system.
[Nj
LOW
PASS
FILTER
control
Adjusts the
cut-off
frequency
(SOO
Hz
- 4 kHz).
ITIJ
HIGH
PASS
FILTER
control
Adjusts the
cut-off
frequency
(SO
Hz-
SOO
Hz}.
[12.]
LEVEL
control
Adjusts the
input
level (0.3
V-
6
V}.
Turn
it
clockwise when
the
output
level
of
the
audio
device seems low.
WOOFER/SU BWOOFER
{woofer
/subwoofer)
section:
~
LOW
PASS
FILTER
switch
Turns the low-pass filter
on/off.
[H)
LOW
PASS
FILTER
control
Adjusts the
cut-off
frequency
(SO
Hz-
SOO
Hz).
M)
LOW
BOOST
control
Boosts the frequencies around
40
Hz
to
a
maximum
of
10
dB
(O
dB
-10
dB}.
[1§]
LEVEL
control
Adjusts the
input
level (0.3
V-
6
V}.
Turn
it
clockwise when
the
output
level
of
the
audio
device seems low.
[IT]
LINE
INPUT
connector
M HIGH
LEVEL
INPUT
connector
~
REMOTE
IN
jack
For
a wired remote control (not supplied}
SPEAKER
OUT section:
[gQj
TWEETER/FRONT
/MID/REAR
connector
[g1]
WOOFER/SUBWOOFER
terminals
POWER
section:
~
Fuse {30 A)
~
ACC
{accessary)
terminal
+12V
terminal
GND
{ground
{earth}}
terminal
6GB
Installation
and
Connections
Parts
for
Installation
and
Connections
CD
®
®
e5x20
mm
(7/32
x
13/16
in)
~
x4
~
e
®
@
This parts list does
not
include all the package
contents.
