XP-EV600/EV600B/EV600D

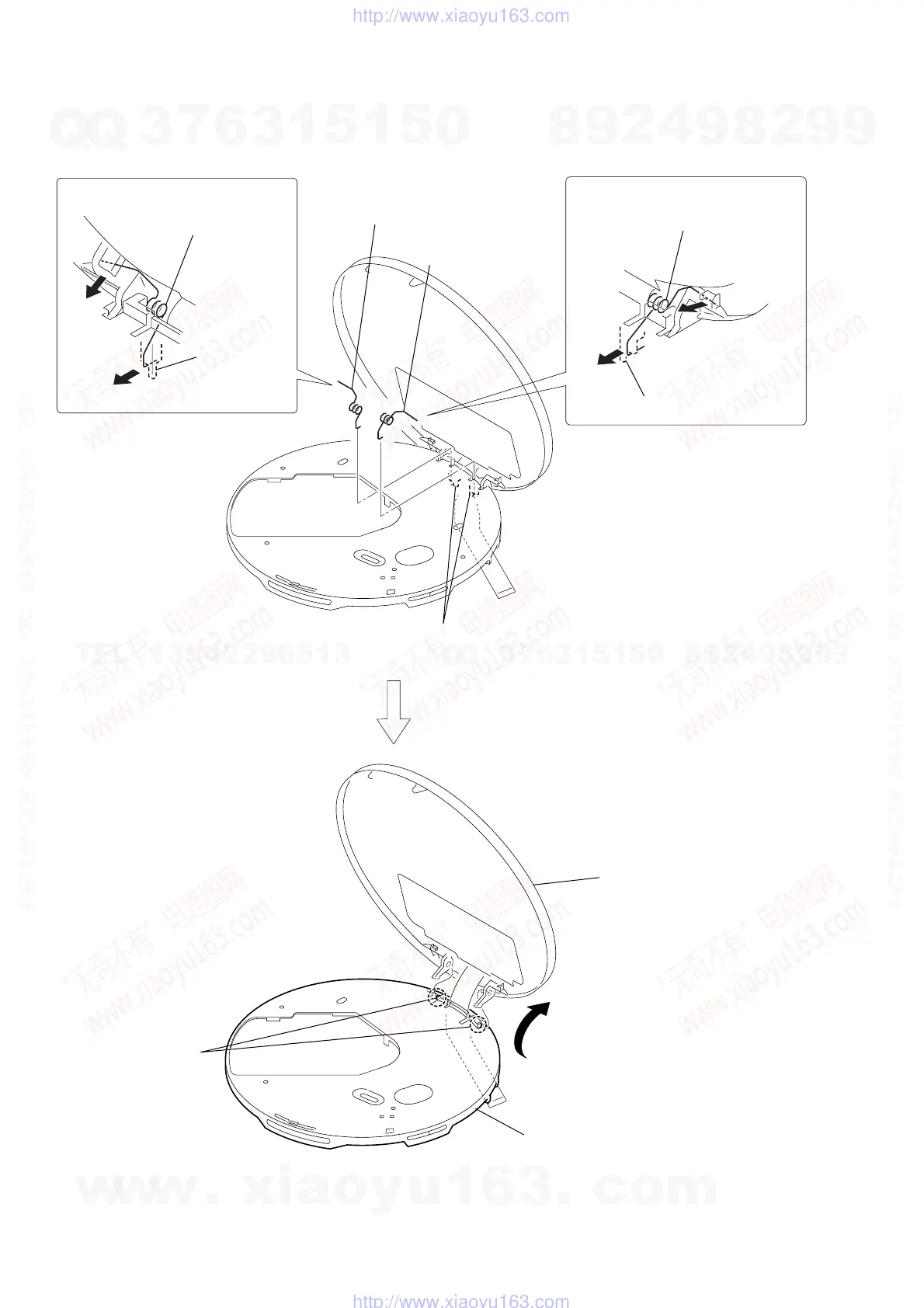

3-3. Cabinet (front) Sub Assy
7
cabinet (front) assy
5
two claws
6
Remove the upper lid assy in
the direction of the arrow.
2
open left spring
4
open right spring
1
Remove the open left spring in
the direction of the arrow.
upper cabinet
3
Remove the open right spring in
the direction of the arrow.
upper cabinet
