279
a) See page 277.
3
Press [Combiner2 Mix], turning it on.
4
Set the following parameter.
a) See page 277.
Automatically setting the priority of
overlapping images
In the Global Effect >Ch1-Ch4 >Combiner Priority menu
(4211), press [Auto] (or [Combiner1 Auto] or [Combiner2
Auto]), turning it on, to set the priority of overlapping
images so that they are automatically determined by their
position on the Z-axis.
It is not possible to cross images. If an image is rotated, the
priority is determined by the position on the Z-axis of the
center of the image.
Crossing images from up to four
consecutive channels in three dimensions
1
In the Global Effect >Ch1-Ch4 >Combiner Priority
menu (4211), press [Depth], turning it on.
2
Set the following parameters.
For “Ch1+Ch2”
For “Ch1+Ch2+Ch3”
For “Ch1+Ch2+Ch3+Ch4”
Crossing images from channels 1 and 2,
and channels 3 and 4 separately in three
dimensions
1
In the Global Effect >Ch1-Ch4 >Combiner Priority
menu (4211), press [Combiner1 Depth], turning it on.
2
Set the following parameter.
3
Press [Combiner2 Depth], turning it on.
4
Set the following parameter.

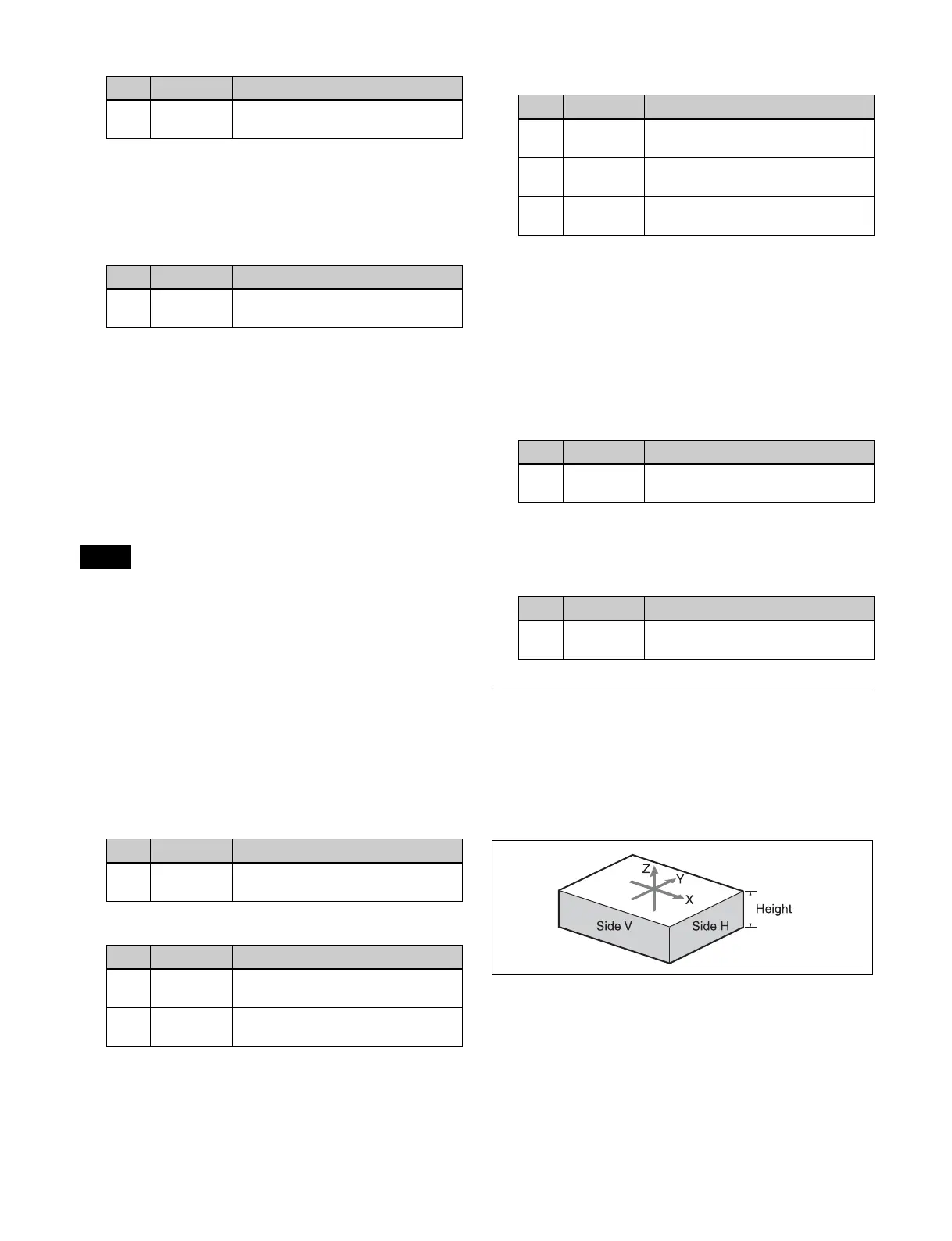

Brick Settings
Brick allows you to create a cuboid by using images of
three consecutive channels (Ch).
The Brick effect can combine Ch1, Ch2, and Ch3, or
combine Ch2, Ch3, and Ch4. The images are displayed on
the three surfaces as shown in the following figure.
Combinations of Ch1, Ch2, and Ch3
Upper side: Ch1 image
Side V: Ch2 image
Side H: Ch3 image
No. Parameter Adjustment
1 Mix1 Degree of mixing of channels 1 and
2
a)
No. Parameter Adjustment
1 Mix2 Degree of mixing of channels 3 and
4
a)
Note
No. Parameter Adjustment
1 Soft Softness of edges of crossed
section
No. Parameter Adjustment
1 Soft1 Softness of edges of channel 1 and
channel 2 crossed section
2 Soft2 Softness of edges of channel 2 and
channel 3 crossed section
No. Parameter Adjustment
1 Soft1 Softness of edges of channel 1 and
channel 2 crossed section
2 Soft2 Softness of edges of channel 2 and
channel 3 crossed section
3 Soft3 Softness of edges of channel 3 and
channel 4 crossed section
No. Parameter Adjustment
1 Soft1 Softness of edges of channel 1 and
channel 2 crossed section
No. Parameter Adjustment
1 Soft2 Softness of edges of channel 3 and
channel 4 crossed section
