Sony ZS-D10 Service Manual

ZS-D10
3232

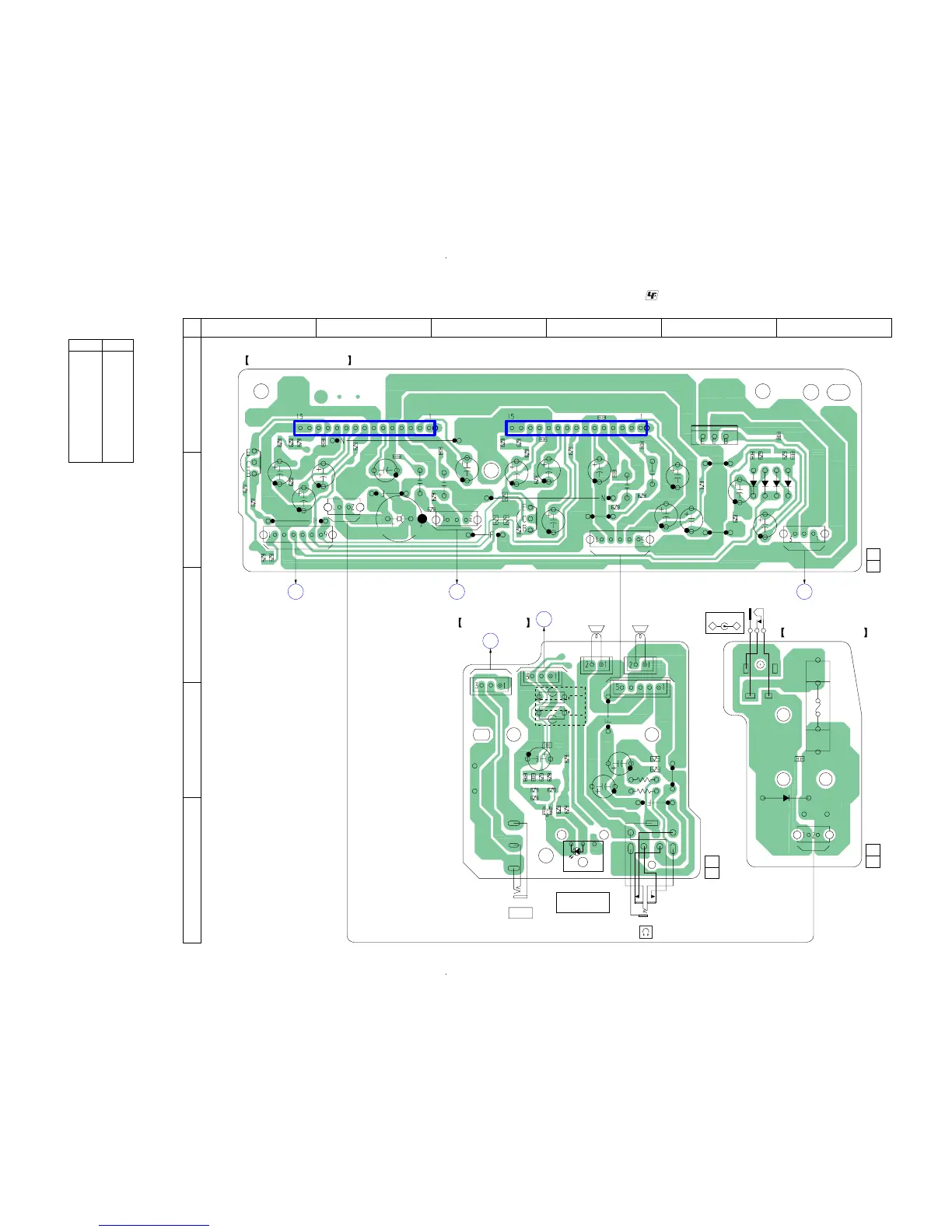

6-15. PRINTED WIRING BOARDS – AUDIO/POWER SUPPLY Section – • See page 21 for Circuit Boards Location. :Uses unleaded solder.
FH901
JW353
JW354
JW351
JW352
JW358
JW355
KH371
IC271
IC171
C182
C176
C175
C173
C172
C273
C272
C275
C276
C180
C280
C281
Q171
Q271
C282
C351
C181
Q972
C178
C278
D172
D271
D272
JW356
JW357
KH375
KH373
KH372
KH374
C174
C274
D171
C283
C284
C183
C184
R175
R176
R177
R178
R179
C271
R275
R276
R277
C171
R278
R279
R172R171
R174
R173
C972
R274
R272R271
R273
R182
R282
C177
C277
R183
R283
R181
R180
R280
R281
C352
JW391
JW393
IC391
CNP394
CNP391
CNP392
CNP395
CNP393
R291
R191
L391
(US, CND)
(US, CND)
(
AEP, UK,
)
IT, EE
L391
L392
L392
C391
C291
C191
J391
JW392
R292
R192
R391
R393
R394
R395
R397
R398
R399
C393
Q391
C392
R396
C394
KH901
D901
FH902
F902
C901
JACK BOARD
1-687-056-
11
(11)
DC JACK BOARD
1-687-057-
11
(11)
POWER AMP BOARD
MAIN BOARD
CNP304
L
MAIN BOARD
CNP302
K
MAIN BOARD
CNP301
J
M
MAIN
BOARD
B
CD BOARD
CNP703
SP291
(R-CH)
SP191
(L-CH)
J392
LINE IN
OPTICAL
DIGITAL OUT (CD)
IC391
J901
DC IN 10V
–
+
A
B
C
D
E
1 2 3 4 5 6
31
1-687-051-
11
(11)
• Semiconductor
Location
Ref. No. Location
D171 B-5
D172 B-5
D271 B-6
D272 B-6
D901 E-6
IC171 A-2
IC271 A-4
IC391 E-4
Q171 B-1
Q271 B-3
Q391 E-4
Q972 A-5
(Page 30)
(Page 30)
(Page 30)
(Page 22)
(Page 30)
