Sophos APX 320 User Manual

2
APX 320/530/740
Operating Instructions

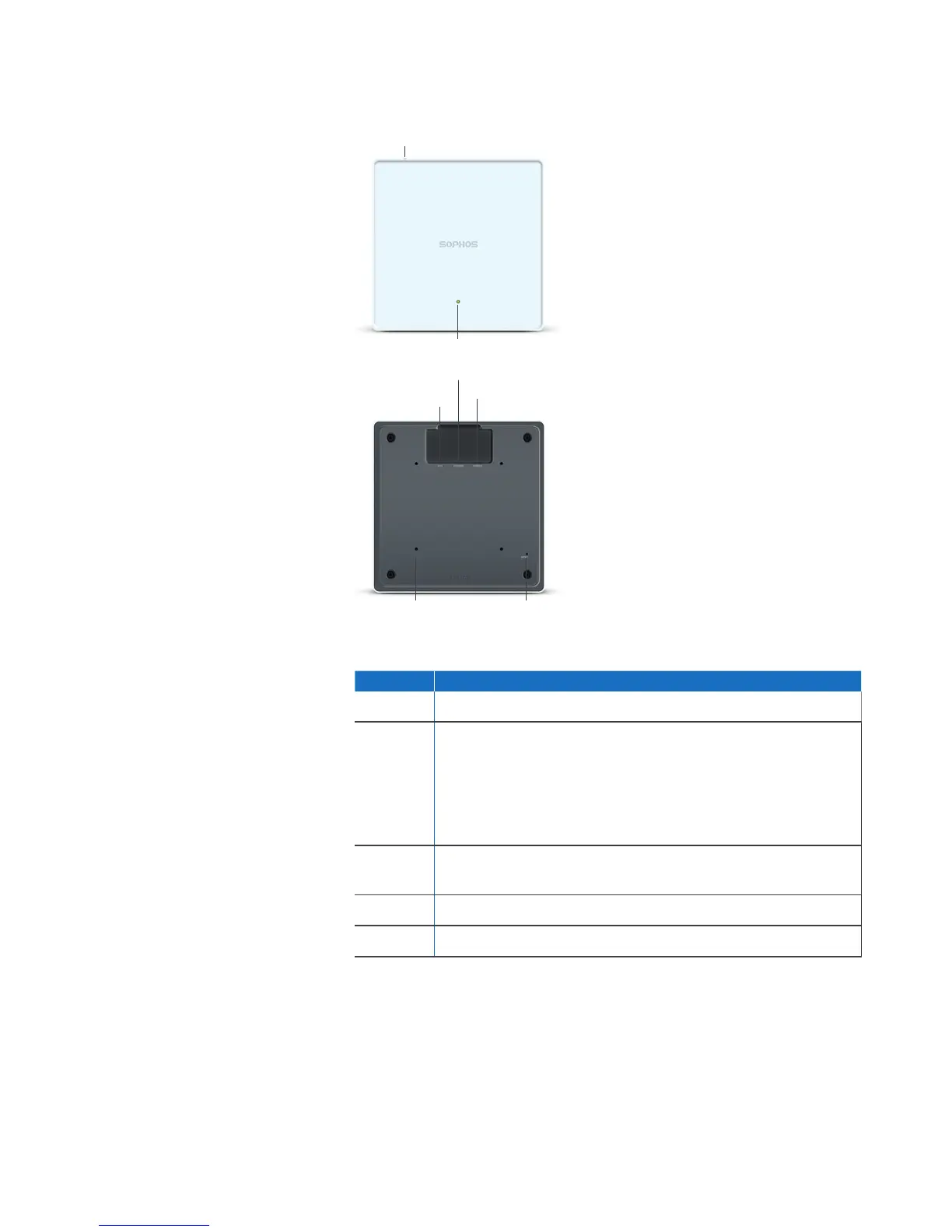

Operating Elements and Connections
APX 320/530/740
*
LED
Kensington Lock
ETH1 Port
(APX 530/740 only)
ETH0 (PoE) Port
Console (RJ45) Port
Reset buttonMounting Bracket holes
* The displayed images show the APX 740. Other APX models may vary slightly.
Component Descriptions
Component Description
Status LED The Status LED indicates the operational state of your access point such as boot
status, firmware updates and error states. For details, see table “LED Status” below.
Eth0 (PoE)
and ETH1
ports
Eth0 is the primary Ethernet port to connect your access point to your network. This
port needs to be connected to a PoE capable source (PoE Injector or PoE switch)
to power your access point. There is no dedicated DC power source available.
Sophos offers suitable PoE injectors for purchase as an optional accessory.
Eth1 (on APX 530/740 only) can be used as an alternative
Ethernet port but does not receive power.
Both Ethernet ports are 10/100/1000 Mbps compatible and auto-negotiate
to the speed and half- and full-duplex of the connecting device.
Console port For debugging purposes, support staff can access the CLI by
making a serial connection to the RJ-45 console port.
For details, see “Serial Console Connection” below.
Reset button The reset button allows you to reboot the device and reset its configuration
to the factory default. For details, please see section “Reboot & Reset”
Kensington
Lock
You can physically secure the AP by attaching a lock and cable (such
as a Kensington® notebook lock) to the device lock slot.

Sophos APX 320 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 / 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1743 Mbit/s
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	5
Antenna gain level (max)	6.7 dBi
Number of products included	1 pc(s)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	-
Number of SSID supported	16
Placement	Ceiling, Table, Wall
Certification	CB, UL, CE, FCC, ISED (IC), RCM, MIC, NCC, Anatel. EN 60601-1-2 UL2043
Product color	White
Cable lock slot type	Kensington
Power consumption (max)	11.5 W
Sustainability certificates	CE
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Internal memory	512 MB
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	38 mm
Width	155 mm
Weight	474 g
